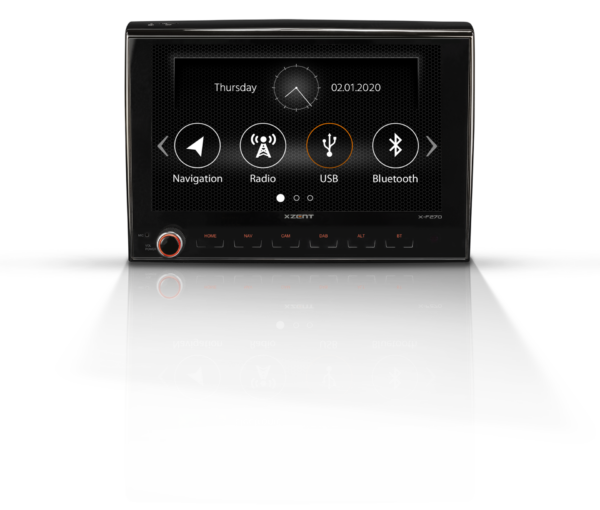

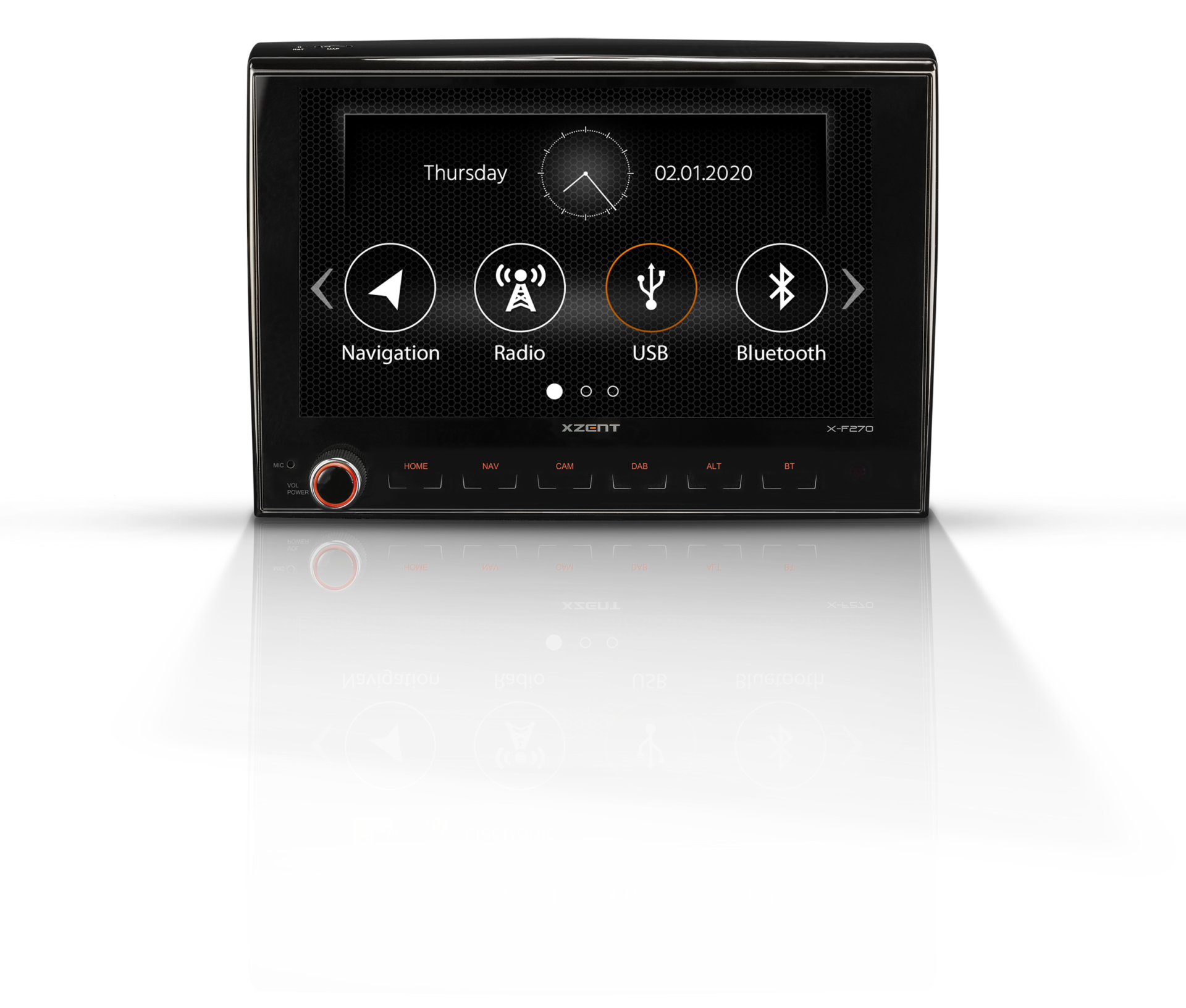

XZENT X-F270 DUCATO MULTIMEDIA SYSTEM

X-F270 · INFOTAINER / NAVICEIVER FOR FIAT DUCATO

Modern infotainment for your camper: XZENT X-F270 is tailor-made for FIAT Ducato III, Citroën Jumper II and Peugeot Boxer II campers. The integrated into the dashboard, operating the device while driving is not only safe but also simple and intuitive.

X-MAP27-MH1/MH3 Navigation Packages: With the separately available X-MAP27-MH1 and X-MAP27-MH3 satellite navigation packages, the X-F270 can be transformed into a well-equipped navigation system for campers and vans .

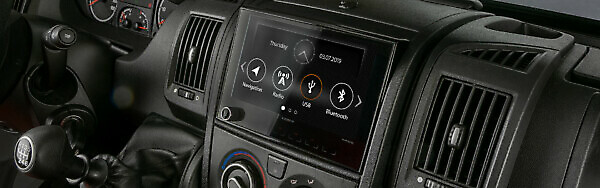

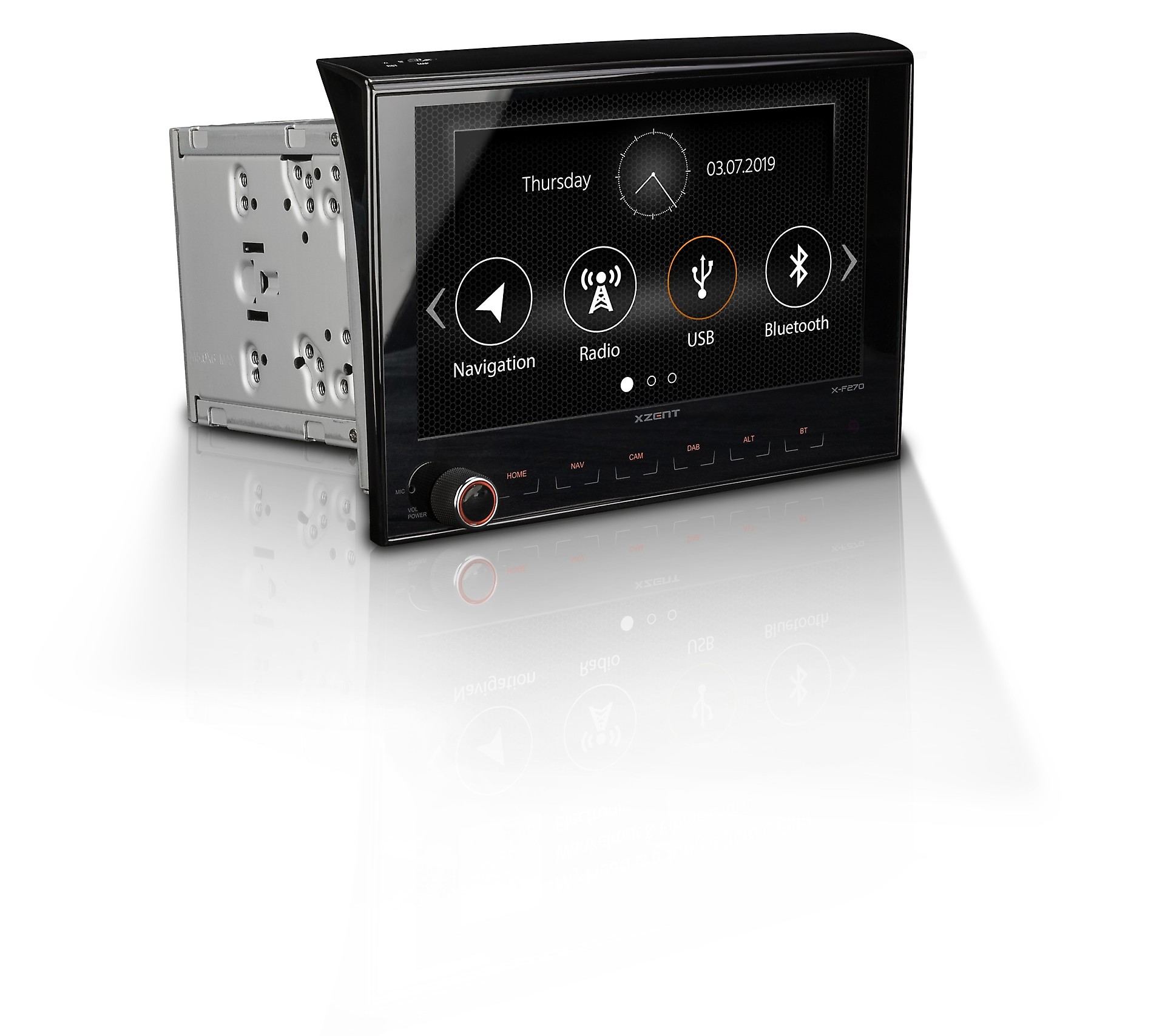

Optimal vehicle integration: XZENT X-F270 integrates perfectly with the appearance of the dashboard. Apart from the optimal fit of the device, the amber key illumination of the X-F270 corresponds to the interior lighting of the vehicle.

Large 8-inch Capacitive Touchscreen: The X-F270 features a large 8″/20.3 cm capacitive TFT touchscreen display with glass surface. The capacitive touchscreen display offers high brightness, clarity and true-to-life color reproduction.

USE YOUR SMARTPHONE EASILY : The X-F270 also perfectly integrates Android and iOS smartphones connected to the USB port via AndroidLink and/or WebLink® 2.0. These integrated smartphone control apps offer screen mirroring and direct control of a wide selection of apps on your smartphone, which can be operated directly via the X-F270’s touchscreen. WebLink® 2.0 integrates YouTube, ShoutCast, easy-to-use audio and video playback engines, and Genius Maps.

Android connection
AndroidLink is an advanced built-in app for Android OS smartphones that supports screen mirroring and direct control of app functions via the X-F270’s touchscreen. Using AndroidLink on the X-F270 is a joy thanks to the large display.

WebLink® 2.0
The integrated WebLink® 2.0 app will make other Android smartphone apps available on the X-F270. The apps YouTube, Shoutcast, Audio Player and Video Player and Genius Maps (from 18 January 2021) appear on the XZENT display and can be optimally controlled via touchscreen.

USB, DAB+ AND FM: YOUR ENTERTAINMENT ON THE GO
The X-F270 also offers the best mobile entertainment and digital radio reception thanks to its “ultimate” integrated DAB+ tuner. In areas without DAB+ broadcast, the sensitive FM RDS tuner provides excellent reception of conventional FM radio stations.

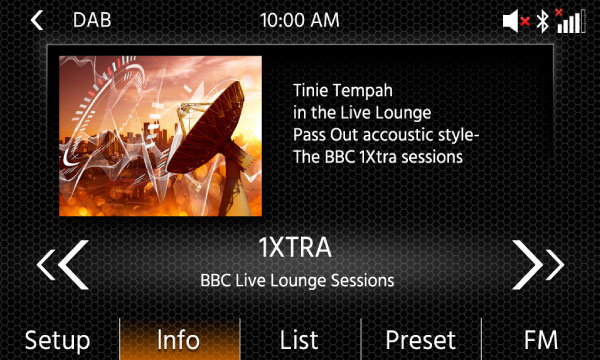

Dual DAB+ tuner
The X-F270 features a DAB+ dual tuner offering MOT Slideshow, dynamic station list, DAB<>DAB Service Following and DLS-text. In addition to these comfort features, the clear digital radio reception and ease of use are additional points.

FM RDS tuner
The X-F270’s FM RDS radio receiver integrates DSP for improved sound quality in areas of weaker FM reception. Radio stations can be stored in 6 preset stations.

A/V playback
Two rear USB ports, made for iPod/iPhone, HDMI input and broad media compatibility – the X-F270 is well prepared and ideally equipped for playback of the latest A/V format

Bluetooth HFP + music streaming
Hands-free calling with excellent voice quality, search function, phonebook synchronization, import of up to 1,000 phonebook contacts with 3 numbers each enable safe operation while driving.

Bluetooth 4.2 module with hands-free function
Import of 1,000 phonebook entries with 3 phone numbers each
Memory-resident address book with direct access to synchronized contacts
Search function for contacts in the address book via keyboard
Internal Bluetooth microphone, external microphone included in the set

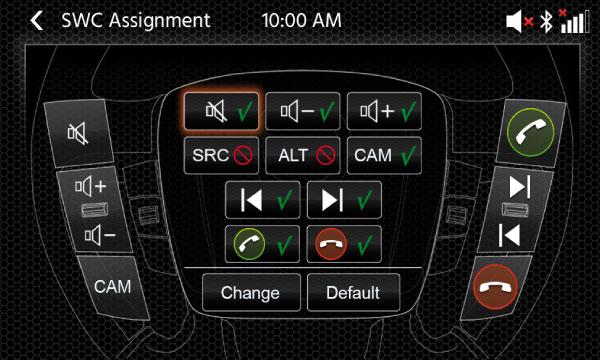

SWC integration
The X-F270 directly supports the FIAT Ducato steering wheel control function, via programmable interface. Therefore, the X-F270 does not require the use or connection of an SWC interface.

Rear camera connections
The XZENT X-F270 is equipped with two RCA video inputs (Cam1/Cam2) for controlling two camera systems with switched power and automatic switching logic.

CAM sensor button
In addition to the ALT button configurable via system settings, the X-F270 offers a CAM sensor button on the front panel of the device, allowing manual control of the rear camera.

OPTIONAL NAVIGATION BUNDLES FOR XZENT X-F270
The satellite navigation packages X-MAP27-MH1 with 1 year map update subscription and X-MAP27-MH3 with 3 years map update subscription are available separately, the contents and functions are developed for use in campervans The packages contain a Premium POI section. The X-F270 is equipped with the DAB-TPEG function to display traffic events faster using free TPEG data (country-specific coverage). The NextGen navigation engine allows you to enter vehicle-specific profile data (length, width, height, weight and trailer) for precise route calculation, avoiding roads and bridges not suitable for the camper.

Main features

• Car-specific navigation system for campers for FIAT Ducato III, Citroën Jumper II and Peugeot Boxer II navigation software is not part of the scope of delivery of the X-F270
• 8″/20.3 cm capacitive touch-sensitive screen (1024 x 600 pixels)
• DAB+ twin-tuner with DAB-DAB Service Following, MOT presentation, dynamic station list and DLS text
• Bluetooth 4.2 module with hands-free function and A2DP
• Control of up to two camera systems with automatic switching function
• Graphical user interface supporting 10 different EU languages
• Sensor field buttons illuminated in amber
• Programmable interface for assigning multifunction buttons to the steering wheel
• IR remote control
• Bluetooth 4.2 module with hands-free function
• Import of 1,000 phonebook entries with 3 phone numbers each
• Memory-resident address book with direct access to synchronized contacts
• Search function for contacts in the address book via keyboard
• Internal Bluetooth microphone, additional input for external microphone, external microphone included in the set
• DAB+ receiver with double tuner
• FM RDS radio with 6 preset stations and DSP noise masking
• Two USB 2.0 ports on the back of the device for playback of files from USB memory or smartphone (charging current ≥ 700 mA), supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 , M4V (H. 264), MKV 1080p, XviD
• AndroidLink for smartphones running Android OS with dual protocol support
• Weblink 2.0 for smartphones with Apple iOS and Android operating systems to integrate YouTube, Shoutcast, Audio Player and Video Player (starting from software version v2.1)
• Made for iPod/iPhone
• BT A2DP music streaming with AVRCP 1.0
• 8-band graphic equalizer with 7 predefined sound profiles
• HDMI input for compatible accessories and mobile devices
• 4 x 40 watt amplifier
• 4.2 RCA line pre-out (3 V)
• 2 RCA video inputs for camera signal (CVBS) with switched power
• 1 DIN FM antenna input socket
• 1 x DAB SMB antenna input socket with switchable 12 V phantom power
• 1 RCA video output (CVBS, NTSC)
• 1 x RCA A/V input with automatic NTSC/PAL switching (CVBS)
• 1 HDMI input
• 1 x Fakra input for GPS antenna
• 1 x External Bluetooth Microphone 3.5mm Jack Connector
• Input for connecting the programmable SWC interface
• 1 x IR-In input for connecting an external CAN/SWC interface

Compatibility:

• Model Type Model year
• Fiat Ducato III 250/251 2006 – 2011
• Fiat Ducato III 250/251 2011 – 2014
• Fiat Ducato III 250/251 (X290) from 2014
• Fiat Ducato III Series 8* 1 starting from 2021
• Citroën Jumper II 250/250D/250L from 2006
• Peugeot Boxer II 250/251 from 2006
• Opel Movano Type C from 2021

• The vehicle must be equipped with an active antenna system (FM/DAB) suitable for campers, or needs to be equipped with such a system, to provide sufficient signal levels to the tuner.
• The vehicle must offer an OE radio supply ex works to allow the installation of the device.
