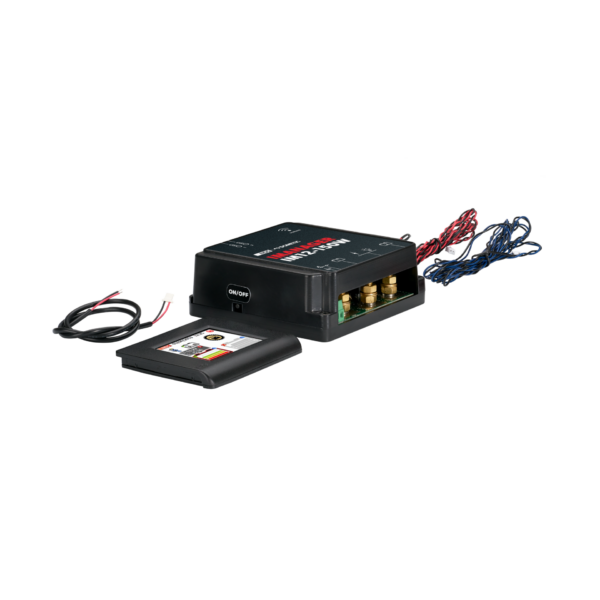

WIRELESS IMANAGER 12V-150A WITH 1 TOUCH DISPLAY

WIRELESS IMANAGER 12V-150A WITH 1 TOUCH DISPLAY

Original price was: 310,50 €.Current price is: 249,00 €.

  • Available
  • Delivery in 3-5 working days
SKU: 34069 Category: Manufacturer: NDS

Ask info

Share

WIRELESS MANAGERS

I MANAGER is the innovative management system for all batteries and on-board energy requests that, mainly, allows you to avoid the “permanent parallel” connection of the accumulators. It manages simultaneously or separately, up to three batteries even with different technologies and amperages, improving their performance and, thanks to the automatic battery disconnect function, preserving their life. The touch display shows all the available information, both on the charge status of the accumulators and on the usage modes, allowing with a simple touch, to manually select the batteries to activate or deactivate, for completely personalized management.
The MANAGER constantly monitors the battery voltages, and taking into account the charge and discharge currents, automatically chooses which one to use, with the aim of maintaining all the batteries at the same charge level, thus optimising their performance.

Why you need IMANAGER
Installing two service batteries in complete safety, avoiding the obsolete and inadvisable parallel, requires an electronic device that manages the system. With iManager you can install different batteries for: technology (Free acid, Gel, AGM), power and different age of the battery.

Choose your batteries with total freedom, iManager will take care of the rest!

Main Features:

  • Automatic or manual management of one or two service batteries, even of different technology and amperage.
  • Output dedicated to charging the engine battery, when the service batteries are 100% charged (e.g. storage).
  • View the charge status of the batteries
  • Displays charge and discharge voltage and Ampere
  • Date and time display
  • Automatic battery disconnection (under 11V) or manual, via touch display
  • View information and advice on battery management and maintenance
  • Temperature control during charging/discharging, for greater safety
  • Black Box / Display connection available both via cable (code iM 12-150) and wireless (code iM 12-150W).

BLACKBOX:

Product Code IM 12-150W
Connected battery consumption 22mA
Disconnected battery consumption 4.2mA
Automatic and Manual operation modes
Max current from relays 100A + 100A
Working voltage 12V (9V – 18V)
Working temperature -15°C / +65°C
Battery disconnection threshold Voltage: 10.5V – Temperature: 70°C



TOUCH DISPLAY:

Product Code IM 12-150W
Max brightness consumption 90mA
Display consumption off 40mA
Disconnected battery consumption 8mA
Connection to the Wireless Blackbox
Normal and Low Power Operation Mode
Display type TFT2.83” / 262k colors / touchscreen
Working temperature -10°C / +70°C
