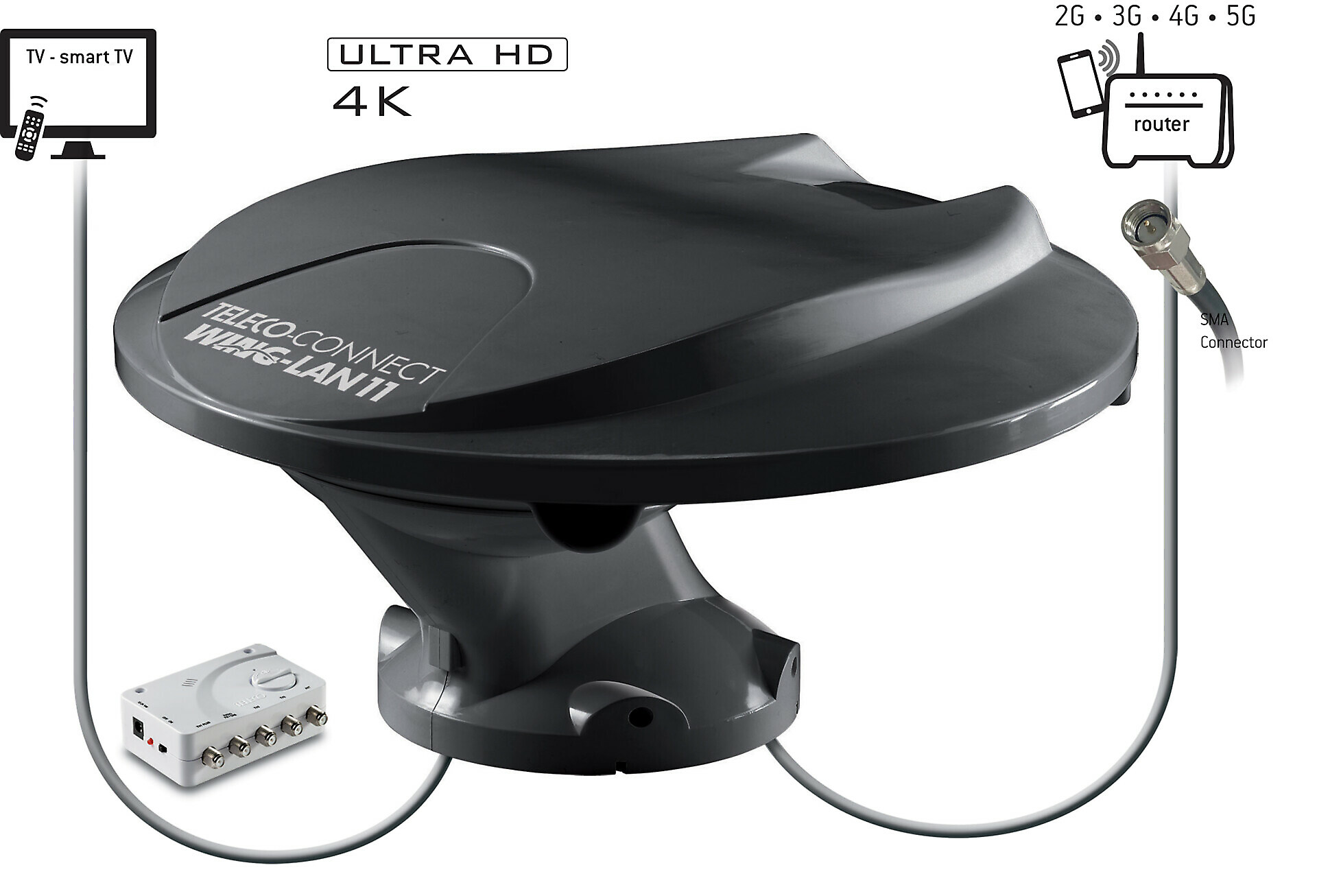

WING-LAN11 OMNIDIRECTIONAL DAB+ DVBT/T2 ANTENNA WITH AT412 + INTEGRATED 2G-3G-4G-5G ANTENNA

WING-LAN11 integrates an omnidirectional TV antenna for DVBT/T2 digital terrestrial signals and DAB+ Radio, with a high-efficiency internet antenna for 2G-3G-4G-5G signals. Connected to the TELECO router, it creates a WLAN Wi-Fi hot spot to surf the net and watch your favorite programs even in streaming.

Gain with amplifier:

Channels: 5-12 / 21-48: Internet signals. Reception frequencies:
Gain with amplifier: 5G: 700(B28) MHz
CH 5-12 16 dB 4G LTE: 800(B20)
CH 21-48 26 dB 900(B8)

Power supply: 12/24 Volt 1800(B3)
Diameter: 38cm 2100(B1)
Height: 16.5 cm 2600(B7) MHz
Weight: 1.2 kg 3G UMTS: 100 / 900 MHz
GSM: 900 / 1800 MHz

Package Contents

1 Antenna complete with 5m DVBT/T2 coaxial cable, 5m SMA 2G-3G-4G-5G coaxial cable and 3 F connectors
1 Adjustable gain amplifier with 3 outputs for 3 TVs + 1 DAB and FM radio output, working at 12 and 24 Vdc
