WING-LAN11 ANTENNA KIT + WLT24EX2 ROUTER + TRB4 BRACKET KIT

Composed of:

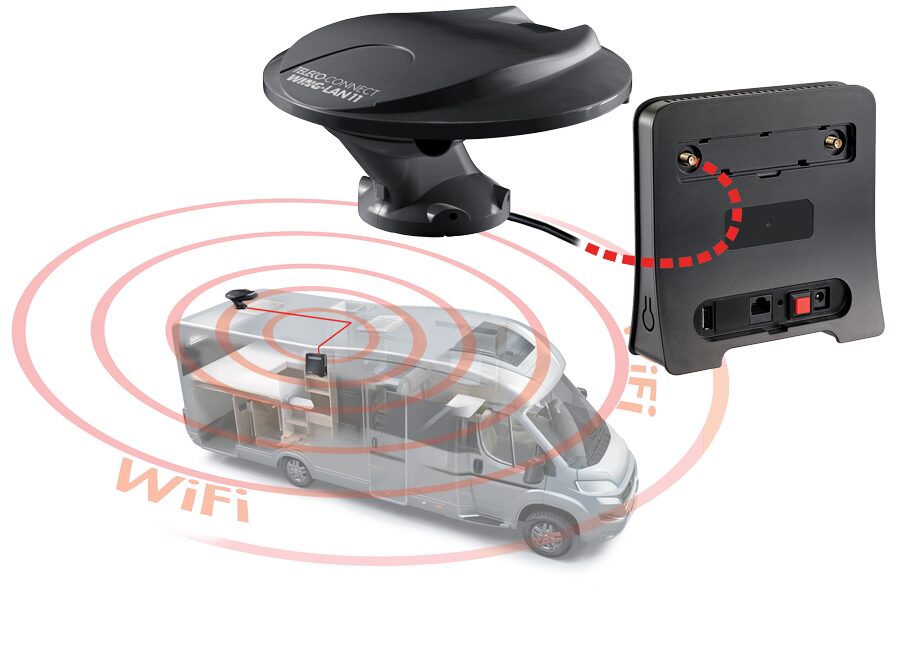

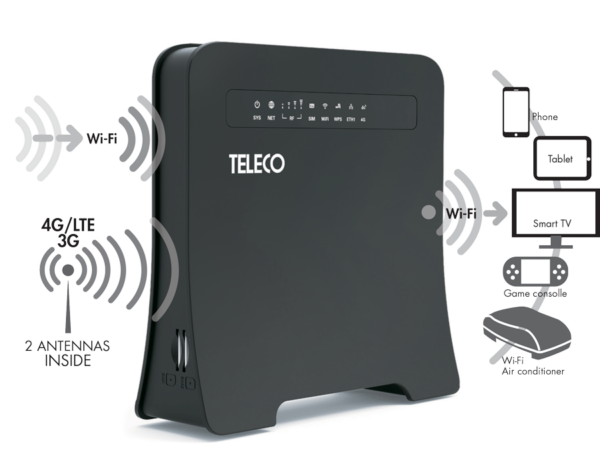

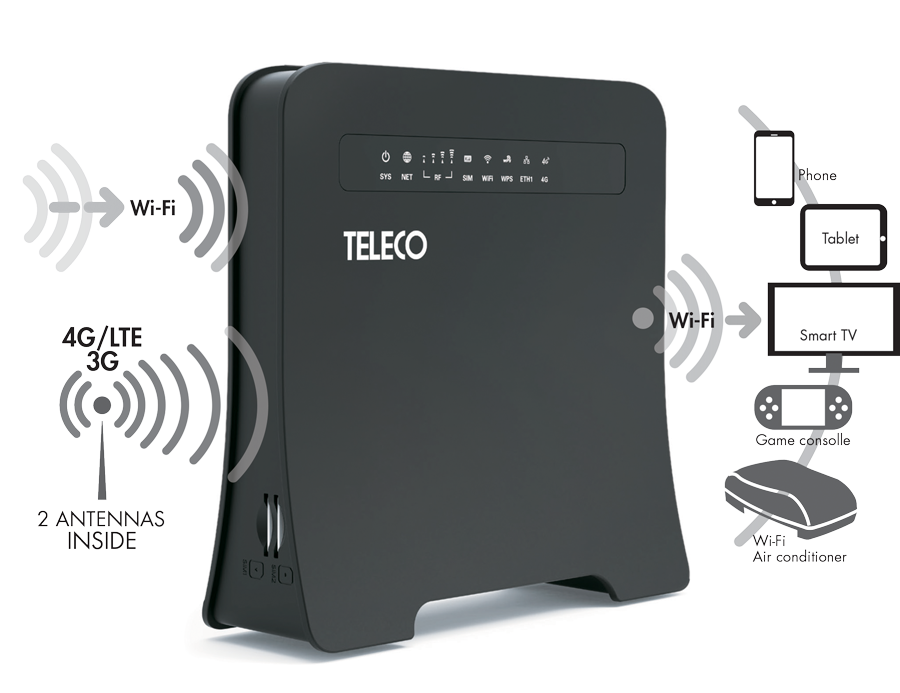

The WLT24EX2 is a portable router operating at 12 Vdc, capable of transforming any mobile phone signal into WiFi via two Data Sim Cards (not supplied). Thanks to the two Sim Cards (not supplied), it is possible to choose the telephone operator that provides the best signal in the place where you are.
It is compatible with all telephone bands (LTE/4G/3G).

It is also equipped with a WiFi signal repeater function and can therefore retransmit a WiFi signal from nearby sources inside the camper.

+

Gain with amplifier:

Channels: 5-12 / 21-48: Internet signals. Reception frequencies:
Gain with amplifier: 5G: 700(B28) MHz
CH 5-12 16 dB 4G LTE: 800(B20)
CH 21-48 26 dB 900(B8)

Power supply: 12/24 Volt 1800(B3)
Diameter: 38cm 2100(B1)
Height: 16.5 cm 2600(B7) MHz
Weight: 1.2 kg 3G UMTS: 100 / 900 MHz
GSM: 900 / 1800 MHz

Package Contents

1 Antenna complete with 5m DVBT/T2 coaxial cable, 5m SMA 2G-3G-4G-5G coaxial cable and 3 F connectors

1 Adjustable gain amplifier with 3 outputs for 3 TVs + 1 DAB and FM radio output, working at 12 and 24 Vdc

1 12Volt WLT24EX2 portable Wi-Fi router

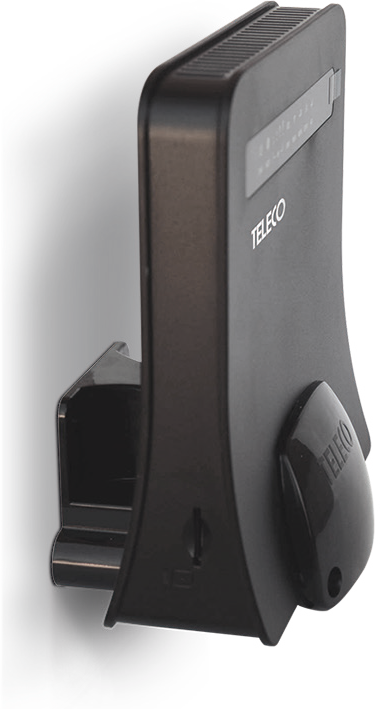

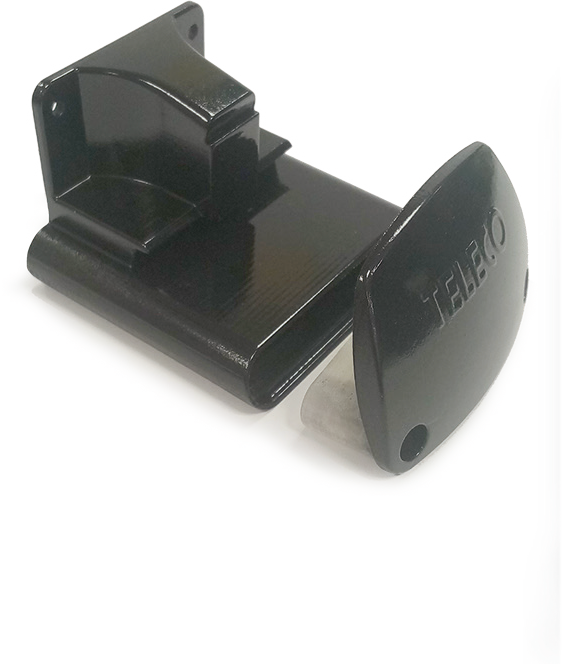

1 TRB4 Wall Mounting Bracket
