Air Top 2000 STC

The simple and economical solution. The compact Air Top 2000 STC air heater convinces with its versatility and low fuel consumption.

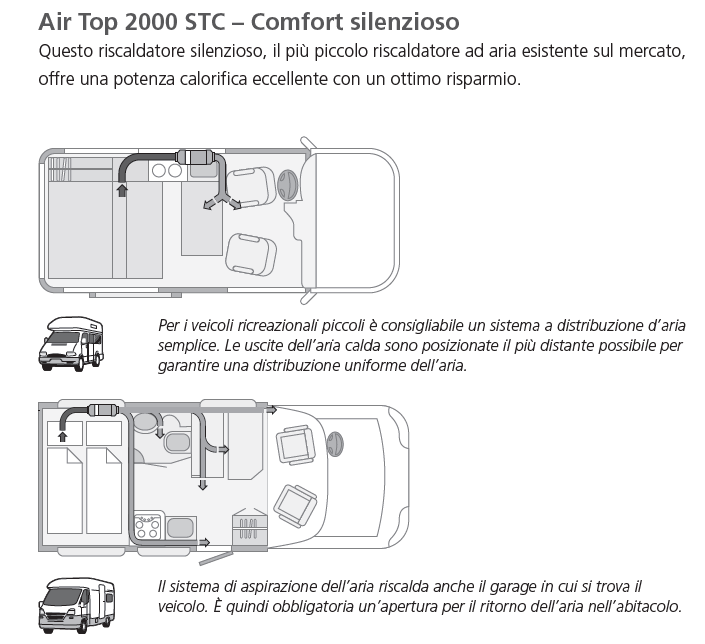

Thanks to its compact structure, Air Top 2000 STC can be quickly installed both inside and outside the vehicle. This heater heats the air in the interior or in the cargo space quickly and quietly and keeps it constant at the chosen working temperature. Users can choose between recirculation mode and fresh air mode.

The heater is easy to maintain and repair. The design and low fuel consumption make the Air Top 2000 STC economical to maintain.

Advantages:

• Nominal heat output 2 kW
• Fast, more uniform and quiet heating thanks to the DP 42 fuel pump
• Robust heater with compact dimensions and low fuel consumption
• Easy maintenance and diagnostic capability
• Suitable for use in vehicles for the transport of hazardous materials (ADR)
• Full W-bus compatibility of the heater
• Continuous operation with the new MultiControl HD control elements
• Using Unibox is no longer necessary

Equipment:

Installation kit

Heater, DP 42 fuel pump, guard, seal
Heater harness, fuel pump harness,
fuel hose Da 5 Di 2 L 6000, flexible stainless steel exhaust pipe D 22 / L 700, PAK combustion air hose Di 22 / L 800, silencer for combustion air intake

Control elements:

MultiControl HD

12/24 V, front panel dimensions (L x W) 68 x 48 mm, installation depth: 15 mm, fast and intuitive operation thanks to large TFT display and multifunction button, visualization
operating states via multicolored LED, intuitive menu commands for heating, ventilation and timer control, 3 pre-selectable times per day, 7-day advance programming option, room temperature sensor/display, diagnostic interface for heaters W-bus and Thermo Test

STANDARD AIR KIT

Consisting of: 1 Y 60/60/60 branch; 1 branch T 60/60/60; 4 gray vents, 90° fins; 3 nuts for fixing vents; 8.3 meters of distribution pipe d.60mm.

Technical specifications:
Air Top 2000 STC

• ECE R122 approval number (heater): E1 00 0216
• ECE R10 (EMC) approval number: E1 04 1085
• Heating power, control range (kW): 0.9 –2.0
• Fuel consumption, control range (l/h): 0.12 –0.24
• Nominal absorption, control range (W): 14 –29
• Heating air flow rate at 0.5 mbar: 93
• Fuels: Diesel EN 590; PME DIN EN 14214; Fuel oil (EL) DIN 51603-1
• Operating temperature (°C): –40 to +40
• Dimensions L x W x H (mm): 311 x 120 x 121
• Weight (kg): 2.6
