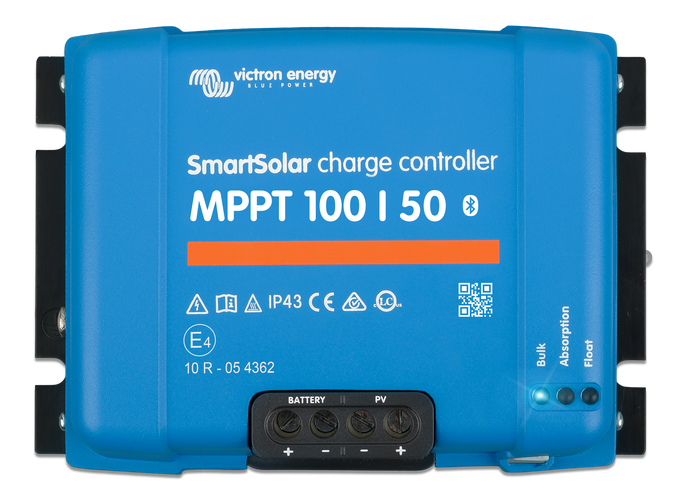

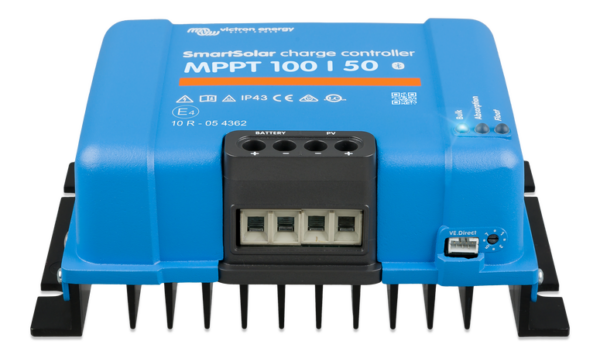

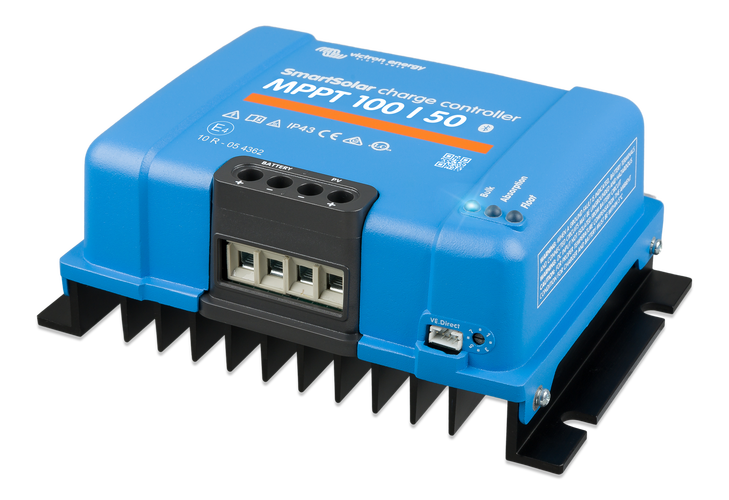

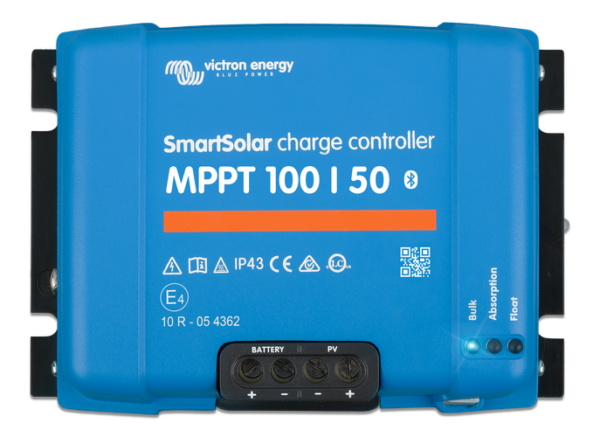

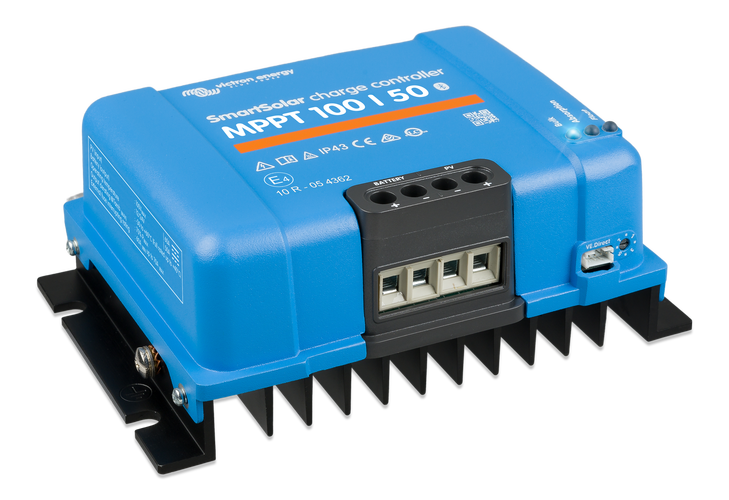

SmartSolar MPPT 100/50,

Built-in Bluetooth Smart

The wireless solution to configure, monitor, update and synchronize SmartSolar Charge Controllers.

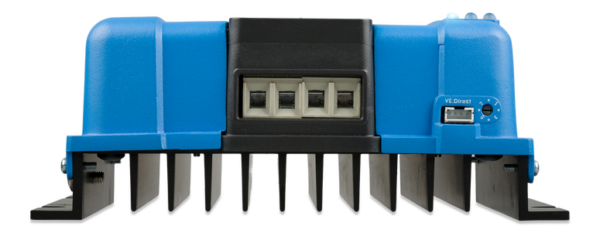

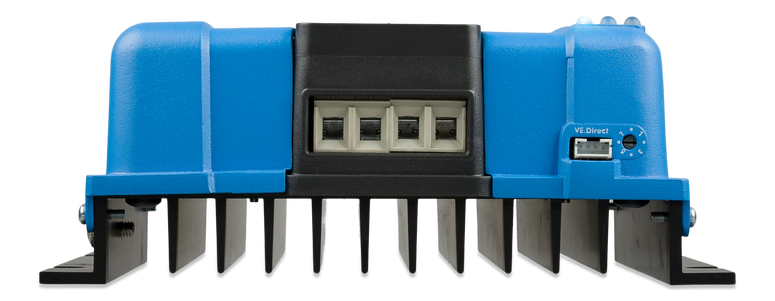

VE.Direct

For data connection via cable to the Color Control GX or other GX devices, to the PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in cloudy skies, when the light intensity changes continuously, an ultra-fast MPPT controller
will allow you to enhance energy collection up to 30% more than PWM charge controllers and up to 10% more than devices
slower MPPT controllers.

Advanced Maximum Power Point detection in partial shade conditions

In the case of partial shade, there may be two or more maximum power points on the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimal MPP.
The innovative BlueSolar algorithm will always maximize energy harvesting by locking to the optimal MPP.

Very high conversion efficiency

Without cooling valve. Maximum efficiency over 98%.
Full maximum output current up to 40°C (104°F).

Flexible charging algorithm

Fully programmable charging algorithm (see software page on our website) and eight pre-programmed algorithms,
selectable via a rotary switch (see manual for details).

Very high electronic protection

Over-temperature protection and power reduction with high temperature.
Protection against short circuit and polarity reversal on the photovoltaic cell.
Protection against reverse photovoltaic current

Internal temperature sensor

Compensates absorption and holding voltages based on temperature.

External battery voltage and temperature detection via optional Bluetooth

A Smart Battery Detector or a BMV-712 Smart Battery Monitor can be used to communicate voltage and
the battery temperature to one or more SmartSolar Charge Controllers

Completely discharged battery recovery function

It starts charging even if the battery has been discharged to zero volts.
Reconnects to a fully discharged lithium-ion battery, with built-in disconnect function.

Technical data MPPT 100/50:

• Battery voltage (automatic selection): 12/24 V
• Rated charging current: 50A
• Nominal PV power, 12 V 1a,b): 700 W
• Nominal PV power, 24 V 1a,b): 1400 W
• Max. PV short-circuit current 2): 60 A
• Automatic load disconnection: Yes
• Max open circuit PV voltage: 100 V
• Maximum efficiency: 98%
• Self-consumption: 12 V: 30 mA 24 V: 20 mA
• Charging voltage “drain”: Default: 14.4V / 28.8V (adjustable)
• Float charging voltage: Default: 13.8V / 27.6V (adjustable)
• Charging algorithm: Multi-stage adaptive
• Temperature compensation: -16 mV / °C or -32 mV / °C
• Protection: PV reverse polarity Output short circuit Overtemperature
• Operating Temperature: -30 to +60°C (maximum rated output up to 40°C)
• Humidity: 95%, non-condensing
• Data communication port: VE.Direct (see the data communication white paper on our website)
• Color: Blue (R AL 5012)
• Power terminals: 16 mm² / AWG6
• Protection category: IP43 (electronic components), IP22 (connection area)
• Weight: 1.3kg
• Dimensions (xwxd): 130 x 186 x 70 mm
• Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
• Data stored: Battery voltage, current and temperature, as well as load output current, PV voltage and PV current
• Number of days trend data storage: 46
