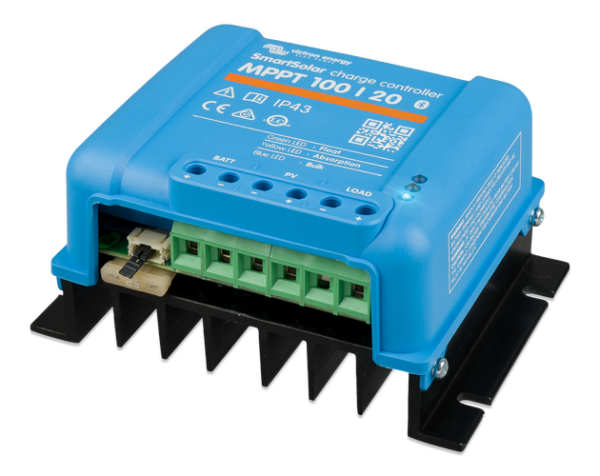

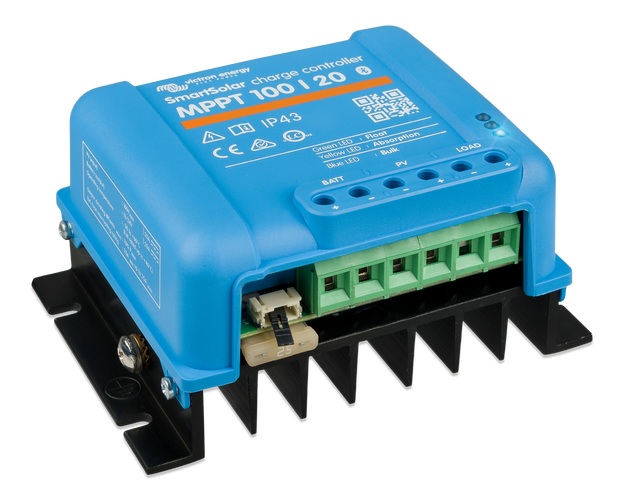

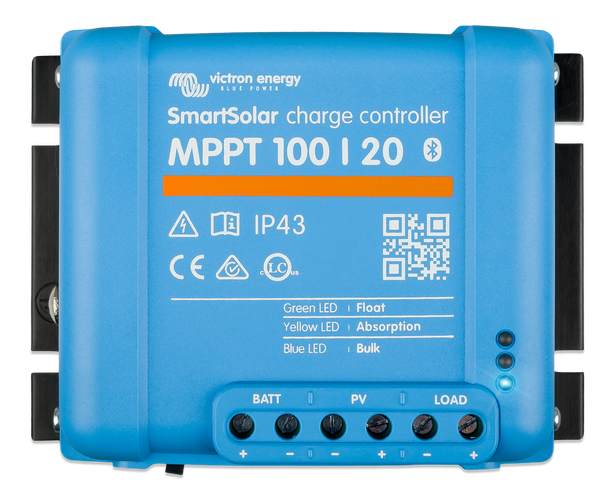

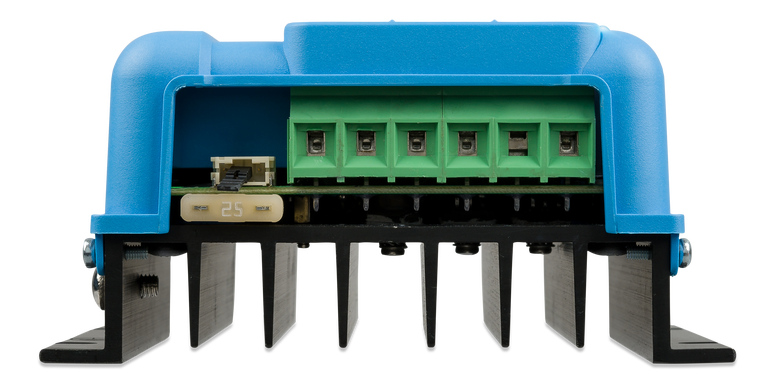

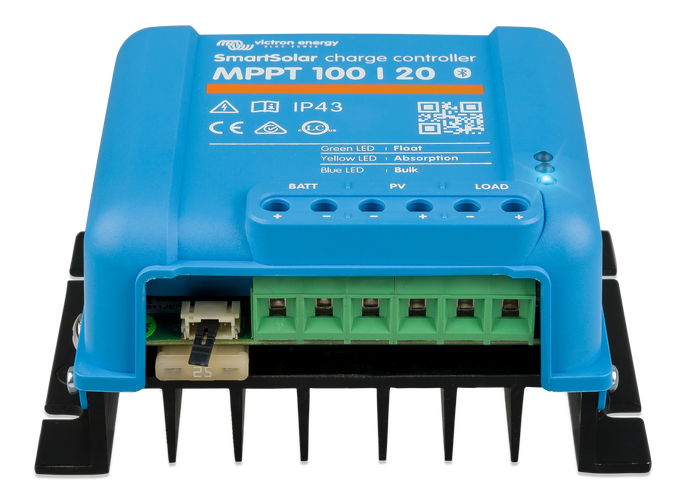

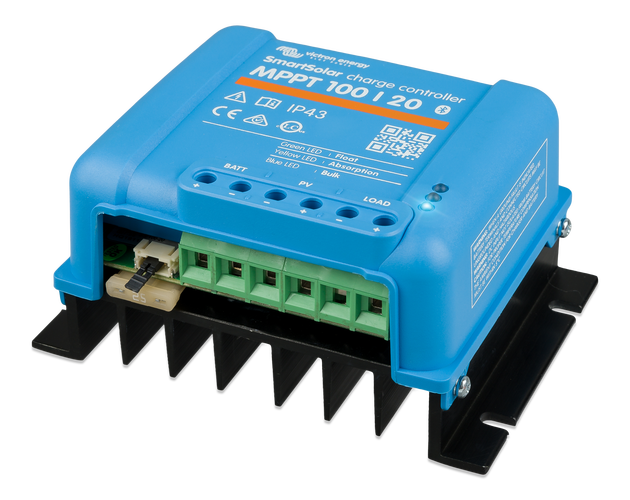

SmartSolar MPPT 100/20,

Built-in Bluetooth Smart

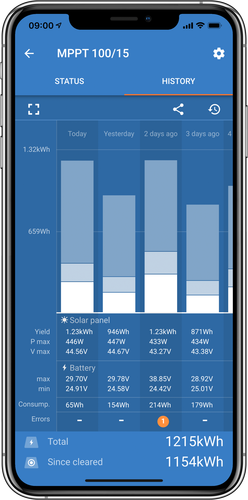

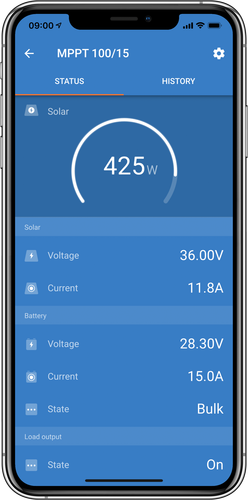

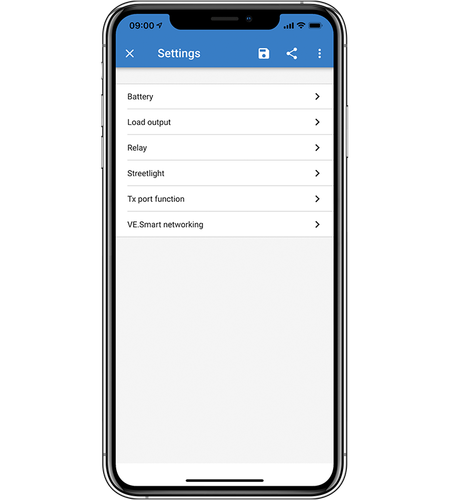

The wireless solution to configure, monitor, update and synchronize SmartSolar Charge Controllers.

VE.Direct

For data connection via cable to the Color Control GX or other GX devices, to the PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in cloudy skies, when the light intensity changes continuously, an ultra-fast MPPT controller
will allow you to enhance energy collection up to 30% more than PWM charge controllers and up to 10% more than devices
slower MPPT controllers.

Load output

You can avoid over-discharging the battery by connecting all loads to the load output. The load output will disconnect the load when
the battery has been discharged to a predefined voltage (48 V model: interfaces with a relay).
Alternatively, you can choose an intelligent battery management algorithm: see Battery Life.
The load output is protected against short circuit.

Battery Life: intelligent battery management

When a solar charge controller is unable to charge the battery to its full capacity within a day, it often happens that
the battery continuously switches between the ‘partially charged’ and ‘fully discharged’ states. This operating mode (absence of a
regular full charging) can destroy lead acid batteries within weeks or months.
The BatteryLife algorithm monitors the battery charge status and, if necessary, increases the threshold day by day
load shedding (i.e. disconnects the load early) until the collected solar energy is sufficient to recharge the battery
almost 100% full. From this moment on, the load disconnection threshold will be modulated to achieve charging
complete about once a week.

Programmable battery charging algorithm

Day/night timing and light dimming option

Internal temperature sensor

Compensates absorption and holding voltages based on temperature

External battery voltage and temperature detection via optional Bluetooth

A Smart Battery Detector or a BMV-712 Smart Battery Monitor can be used to communicate voltage and battery
battery temperature to one or more SmartSolar Charge Controllers.

Completely discharged battery recovery function

It starts charging even if the battery has been discharged to zero volts.
Reconnects to a fully discharged lithium-ion battery, with built-in disconnect function.

Technical data MPPT 100/20:

• Battery voltage (automatic selection): 12/24/48 V
• Rated charging current: 20A
• Nominal PV power, 12 V 1a,b): 290 W
• Nominal PV power, 24 V 1a,b): 580 W
• Nominal PV power, 48 V 1a,b): 1160 W
• Max. PV short-circuit current 2): 20 A
• Automatic load disconnection: Yes
• Max open circuit PV voltage: 100V
• Maximum efficiency: 98%
• Self-consumption – load on: 26 / 20 / 19 mA
• Self-consumption – load off: 12 V: 10 / 8 / 7 mA
• Charging voltage “absorption”: 14.4 V / 28.8 V / 57.6 V (adjustable)
• Float charging voltage: 13.8 V / 27.6 V / 55.2 V (adjustable)
• Charging algorithm: Multi-stage adaptive
• Temperature compensation: -16 mV / °C or -32 mV / °C
• Max continuous load current: 20A / 20A / 1A
• Load Disconnect Voltage: 11.1V/22.2V/44.4V or 11.8V/23.6V/47.2V or Battery Life algorithm
• Load reconnection for low voltage: 13.1V/26.2V/52.4V or 14V/28V/56V or Battery Life algorithm
• Protection: Output short circuit / Overheating
• Operating Temperature: -30 to +60°C (maximum rated output up to 40°C)
• Data communication port: VE.Direct (see the data communication white paper on our website)
• Color: Blue (R AL 5012)
• Power terminals: 6 mm² / AWG10
• Protection category: IP43 (electronic components), IP22 (connection area)
• Weight: 0.65kg
• Dimensions (xwxd): 100 x 113 x 60 mm
• Safety: EN/IEC 62109-1, UL 1741, CS A C22.2
• Data stored: Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
• Number of days trend data storage: 46
