VICTRON SMART SHUNT 500A/50MV

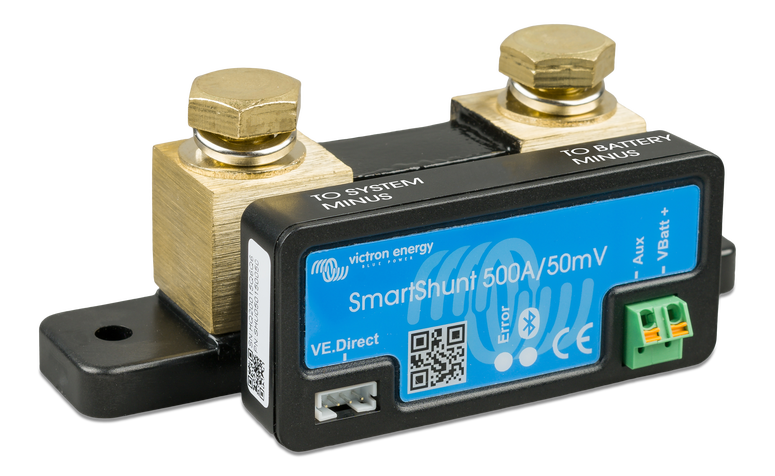

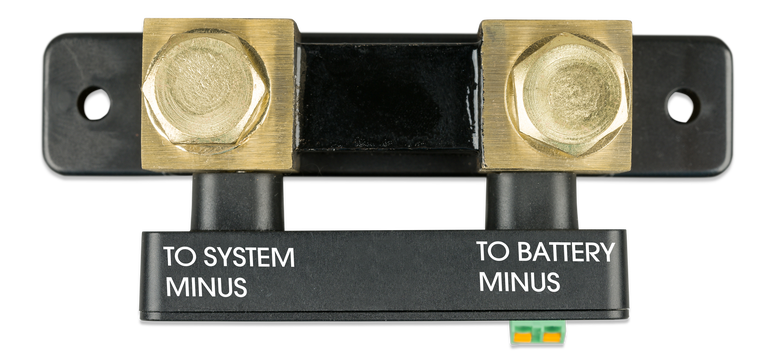

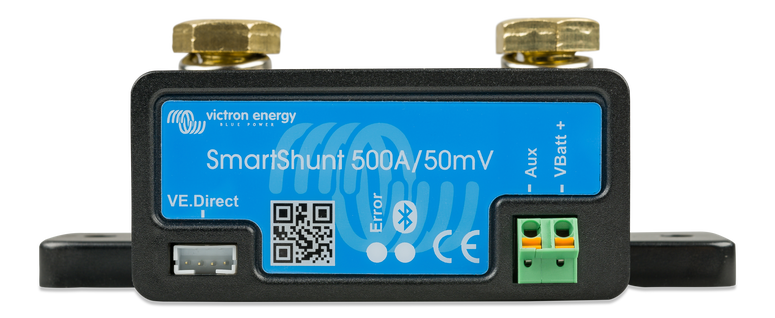

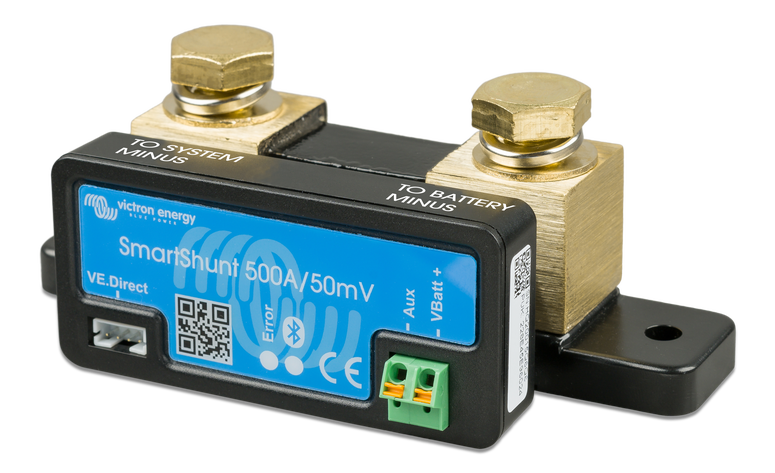

SmartShunt 500 A

The SmartShunt is an all-in-one battery monitor, but without a display. Your phone
serves as a display.

The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or
tablet) and you can conveniently read all monitored battery parameters, such as the
charging status, remaining time, history information and much more.

Alternatively, the SmartShunt can be connected and read via a GX device. There
Connection of the SmartShunt is carried out using a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially in
systems where battery monitoring is needed, but you want to reduce cables and
disorder.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be
used to monitor a second battery, for midpoint monitoring or for
connect a temperature sensor.

Differences from the BMV-712 Battery Monitor
– Non-programmable visual and audible alarms.
– Non-programmable relay

Technical data SmartShunt 500 A:

• Supply voltage range: 6.5 – 70 VDC
• Current consumption: < 1 mA
• Input voltage range, auxiliary battery: 6.5 – 70 VDC
• Battery capacity (Ah): 1 – 9999 Ah
• Operating temperature range: -40 +50 °C (-40 – 120 °F)
• Measure second battery voltage, or temperature or midpoint: Yes
• Temperature measurement range: 20 +50 °C
• VE.Direct communication port: yes

RESOLUTION AND PRECISION

• Current: ±0.01A
• Voltage: ±0.01V
• Ampere hours: ± 0.1 Ah
• State of charge (0 – 100%): 0.1%
• Remaining battery life: ± 1 min
• Temperature (If optional temperature sensor is connected): ± 1 °C/°F (0 – 50°C or 30 – 120°F)
• Current measurement accuracy: 0.4%
• Offset: Less than 20 mA
• Voltage measurement accuracy: 0.3%

• Dimensions (xwxd): 500 H: 46 x 120 x 54 mm
• Shunt connection bolts: M10 (0.3937 inch)
• Protection category: IP21
• Safety: EN 60335-1
• Emissions / Inalterability: EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3
• Automotive sector: EN 50498
• Cables (included): Two fused cables for “+” connection and starter battery or midpoint connection
• Stored data: Voltage, current, state of charge (%), and battery auxiliary input (battery temperature, or midpoint deviation, or battery voltage
  start-up).
• Number of days of data storage: 46
