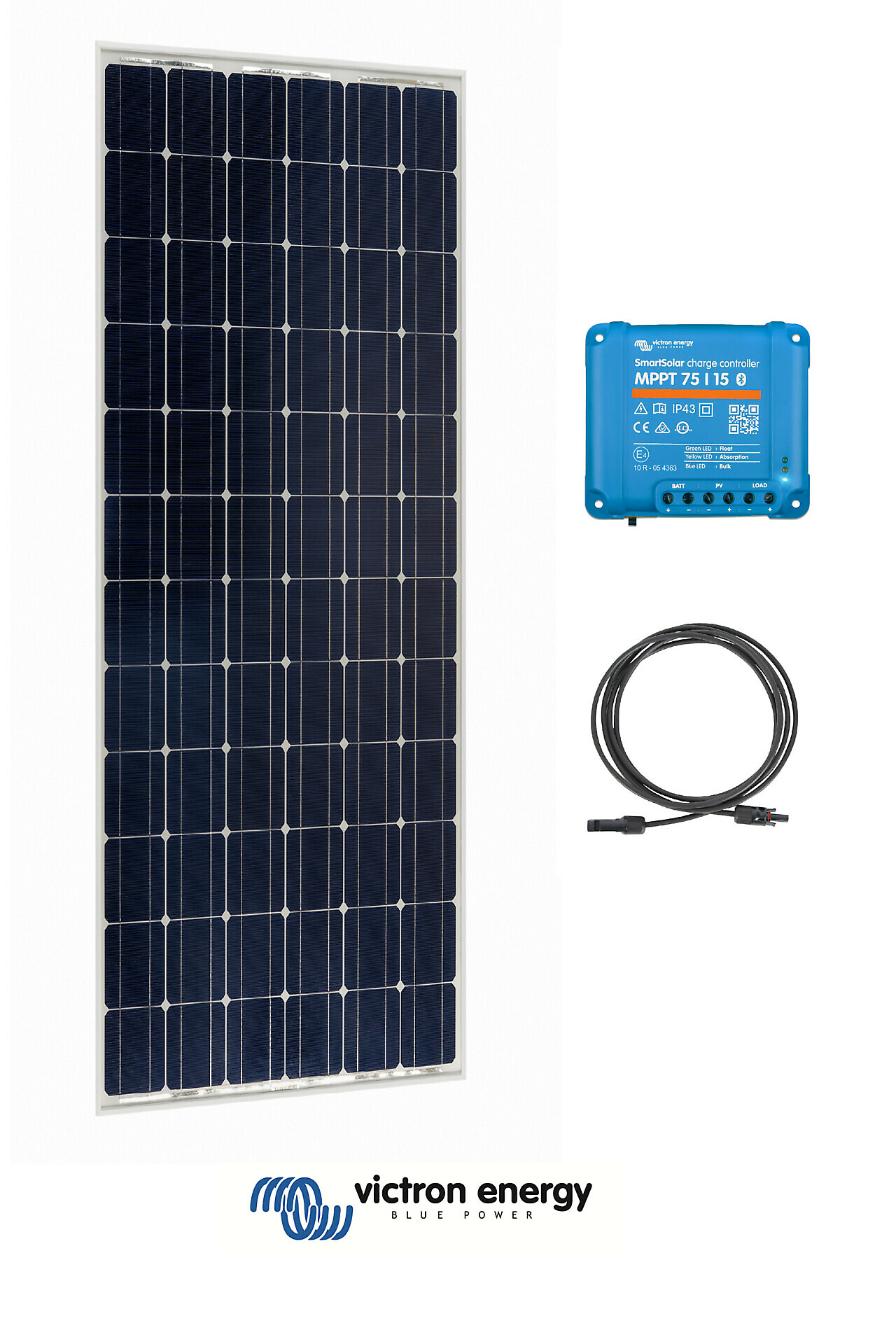

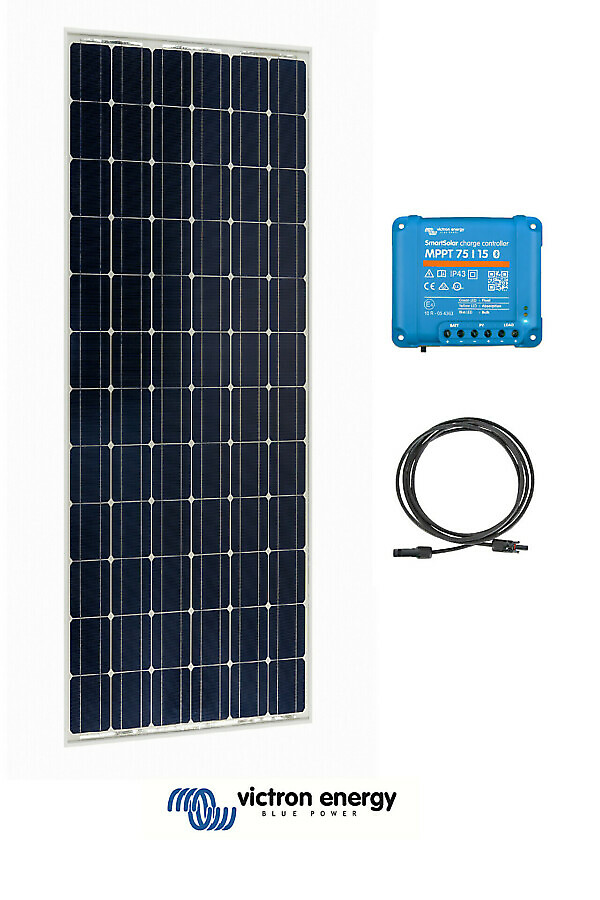

VICTRON 140W SOLAR KIT WITH SMART REGULATOR 75/15

Original price was: 366,00 €.Current price is: 299,00 €.

  • Available
  • Delivery in 3-5 working days
Shipping surcharge: 9,99€

VICTRON SMARTSOLAR MPPT 75/10A

SKU: VCRKIT140 Category: Manufacturer: VICTRON

Ask info

Share



  • The low voltage-temperature coefficient enhances operation at high temperatures.
  • Exceptional low-light performance and high light sensitivity across the solar spectrum.
  • 25-year limited warranty on performance and power delivery.
  • 5-year limited warranty on materials and workmanship.
  • The multifunctional, sealed and waterproof junction box guarantees maximum safety.
  • High-performance bypass diodes minimize voltage drops caused by shaded conditions.
  • The advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple layer back sheet meets the most stringent safety requirements for high voltage operation.
  • A durable anodized aluminum frame makes roof mounting of the modules easy thanks to a whole range of standard mounting systems.
  • The high transmission and top quality tempered glass guarantees greater rigidity and impact resistance.

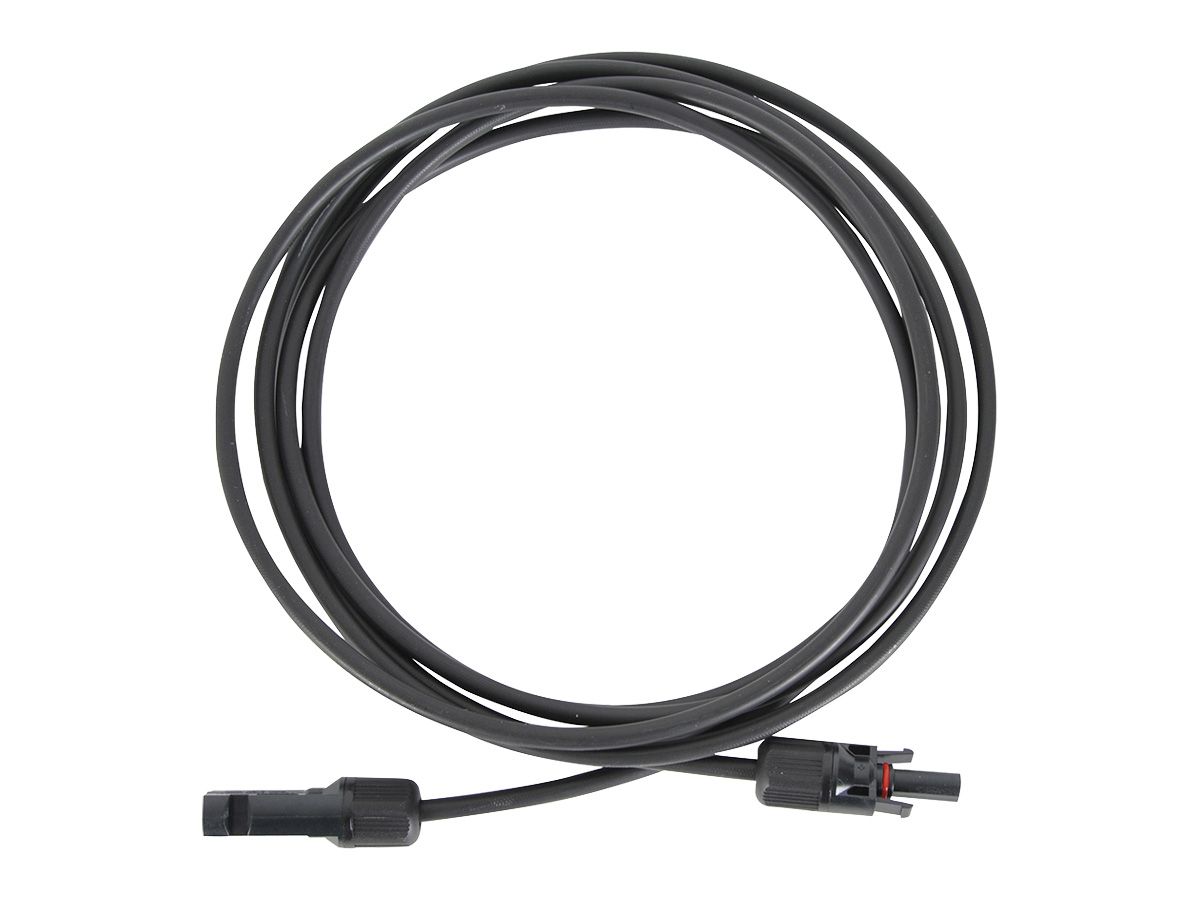

  • Quick-connect pre-wired system with PV-ST01 connectors.

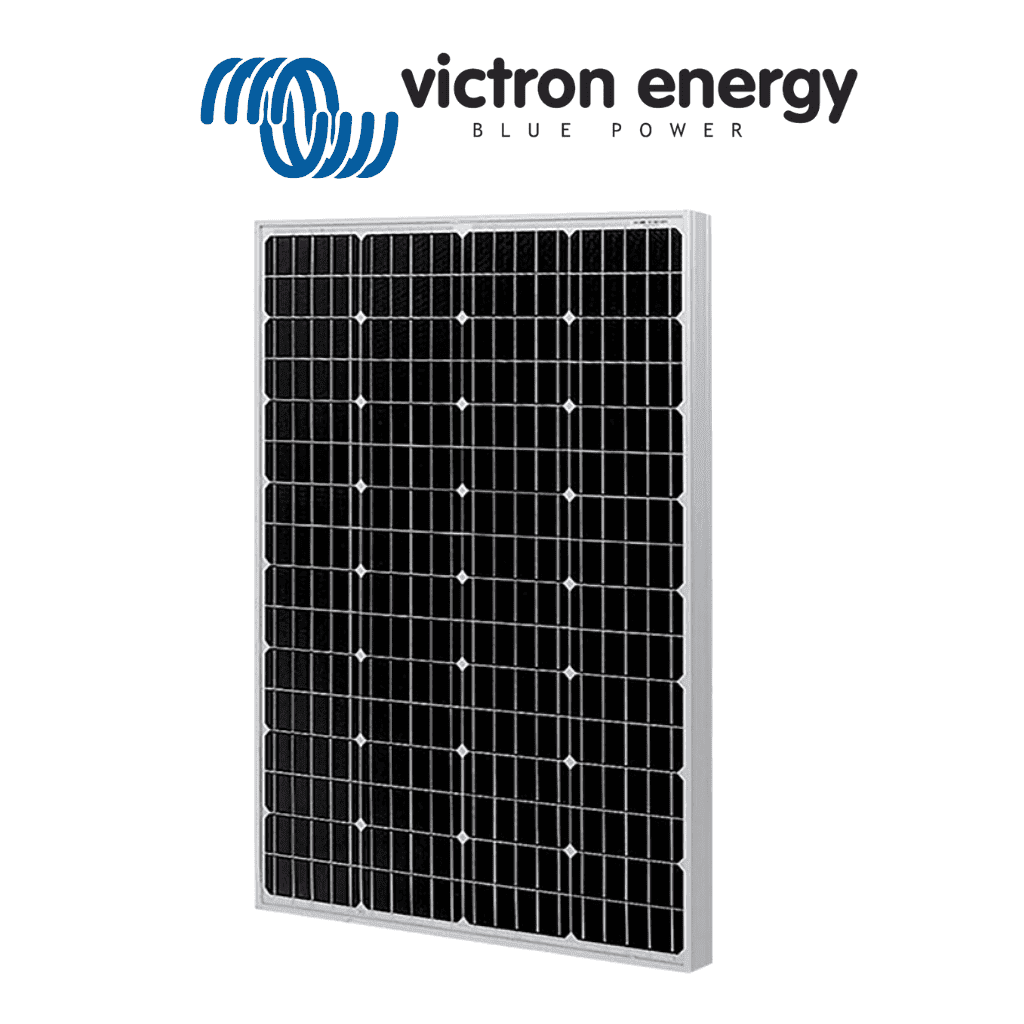

Specifications:

  • Model 140W-12V Mono 1250 x 668 x 30mm series 4a
  • Net Weight: 9Kg
  • Dimensions: 1250 x 668 x 30mm
  • Rated power (PMPP): 140W
  • Maximum power voltage (VMPP): 19.4V
  • Maximum power current (IMPP): 7.22 A
  • No-load voltage (Voc): 23.6V
  • Short circuit current (Isc): 8.05A
  • Nominal power (tolerance ±3%): 140W
  • Cell type: Monocrystalline
  • Number of cells in series: 36
  • Maximum system voltage: 1000V
  • temperature range: -40°C to +85°C
  • Maximum surface load capacity: 200 kg/m²
  • Permissible hail load: 23 m/s, 7.53 g
  • Electrical efficiency guarantee: 10 years at 90% + 25 years at 80% of power output

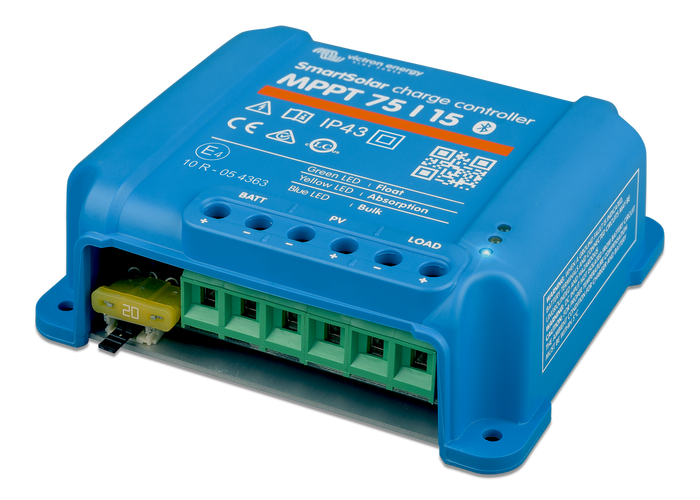

SmartSolar MPPT 75/15 regulator

A solar charger collects energy from your solar panels and stores it in your batteries. Thanks to the latest and fastest technology, SmartSolar maximizes this energy collection, intelligently guiding it, to achieve a full charge in the shortest possible time. SmartSolar preserves the health of the battery and extends its life.

The SmartSolar charge controller can even recharge an almost completely depleted battery. It can operate with a battery voltage of up to 0 Volts, if the cells are not permanently sulphated or damaged in other ways.

MPPT: Ultra Fast Tracking of the Maximum Power Point

By constantly monitoring the output voltage and current of your solar (PV) panels, MPPT technology ensures that every available drop of energy is absorbed by your panels and collected for storage. The benefit is most noticeable when the sky is partially overcast and the light intensity changes continuously.

Remote monitoring and control

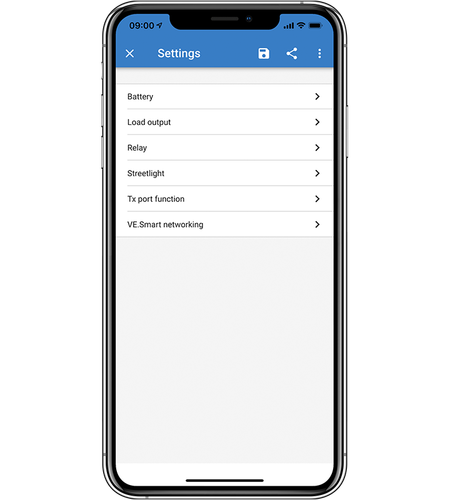

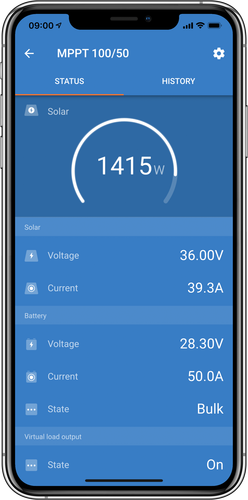

Remotely monitor and control the many functions of your MPPT SmartSolar charger with integrated Bluetooth by pairing it with your smartphone or other device using VictronConnect.

Load output

Intelligent load output functions prevent damage caused by operating completely discharged batteries. You can configure the disconnection voltage of the SmartSolar, thus avoiding excessive draining of your batteries. And here comes the interesting part: the SmartSolar will attempt a 100% charge every day. If this is not possible, during periods of bad weather, it will increase the disconnection voltage every day, until it reaches full charge. We call this feature BatteryLife because it preserves the health and extends the life of your batteries.

MPPT 75/15 Specifications:

  • Battery voltage (automatic selection): 12/24 V
  • Rated charging current: 15A
  • Nominal PV power, 12 V 1a,b): 220 W
  • Nominal PV power, 24 V 1a,b): 440 W
  • Nominal PV power, 48 V 1a,b): nd
  • Max. PV short-circuit current 2): 15 A
  • Automatic load disconnection: Yes
  • Max open circuit PV voltage: 75 V
  • Maximum efficiency: 98%
  • Self-consumption – load on: 12 V: 19 mA 24 V: 16 mA
  • Self-consumption – load off: 12 V: 10 mA 24 V: 8 mA
  • Charging voltage “absorption”: 14.4 V / 28.8 V (adjustable)
  • Float charging voltage: 13.8 V / 27.6 V (adjustable)
  • Charging algorithm: Multi-stage adaptive
  • Temperature compensation: -16 mV / °C or -32 mV / °C
  • Max continuous load current: 15A
  • Load Disconnect Voltage: 11.1V/22.2V/44.4V or 11.8V/23.6V/47.2V or Battery Life algorithm
  • Load reconnection for low voltage: 13.1V/26.2V/52.4V or 14V/28V/56V or Battery Life algorithm
  • Protection: Output short circuit / Overheating
  • Operating Temperature: -30 to +60°C (maximum rated output up to 40°C)
  • Data communication port: VE.Direct (see the data communication white paper on our website)
  • Color: Blue (R AL 5012)
  • Power terminals: 6 mm² / AWG10
  • Protection category: IP43 (electronic components), IP22 (connection area)
  • Weight: 0.5kg
  • Dimensions (xwxd): 100 x 113 x 40 mm
  • Safety: EN/IEC 62109-1, UL 1741, CS A C22.2
  • Data stored: Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
  • Number of days of trend data storage: 46
