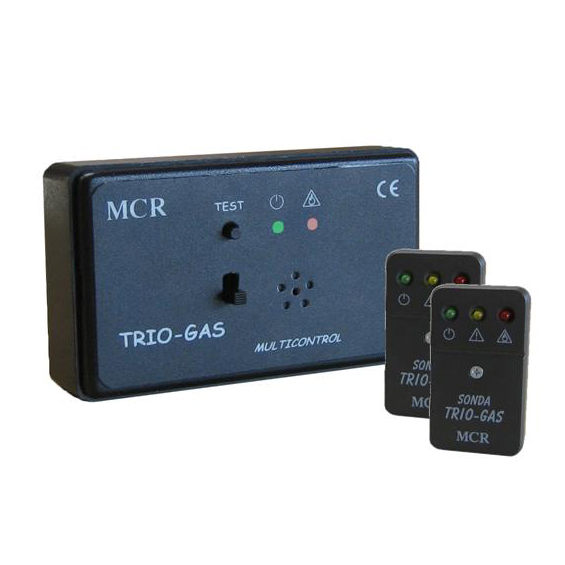

TRIOGAS WALL MOUNTED MULTICONTROL 2 PROBES

TRIO-GAS is an electronic device designed for use in 12V recreational vehicles.
It reveals the presence of ” LPG – CARBON OXIDE – SOPORIFERIC GASES (ether and derivatives)” in an anomalous concentration lower than the danger threshold ( LIE ), signaling with a visual ( LED ) and acoustic ( BUZZER ) alarm.

The TRIO-GAS is equipped with an “open-collector” output which is activated in the event of an alarm, to which it is possible to connect a gas solenoid valve with manual reset or activate other electrical devices (aerators, sirens…) or connect to any type of anti-theft device.
The device has 3 LEDs, a test button and an acoustic signal.

• GREEN LED: power on, activated via the sliding lever located on the side (in front on multicontrol models) of the device.
• RED LED: GAS presence alarm
• YELLOW LED: circuit fault / anomaly
• TEST: test the functionality of the signaling circuit

TRIO-GAS MULT ICONTROL was designed and built with a probe external to the control unit to facilitate its positioning in any point of the camper at the user’s discretion. Each control unit is designed for connection from 1 to 3 probes using pre-wired cables supplied.

Package consisting of control unit plus two probes.

TECHNICAL DATA:

Acoustic power 90 db
Power supply 10-16 V dc
Absorption <50mA
Operating temp. from -10°C to +50°C
Output Open-collector type max 1.5 A
Self-extinguishing ABS casing
Dimensions 90x56x23mm
Probe dimensions 54x30x12 mm
Quick-connect cables supplied (5m and 2.5m)
