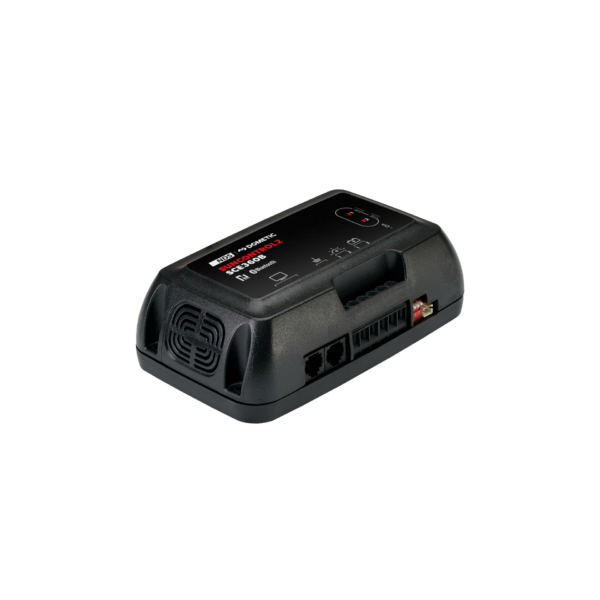

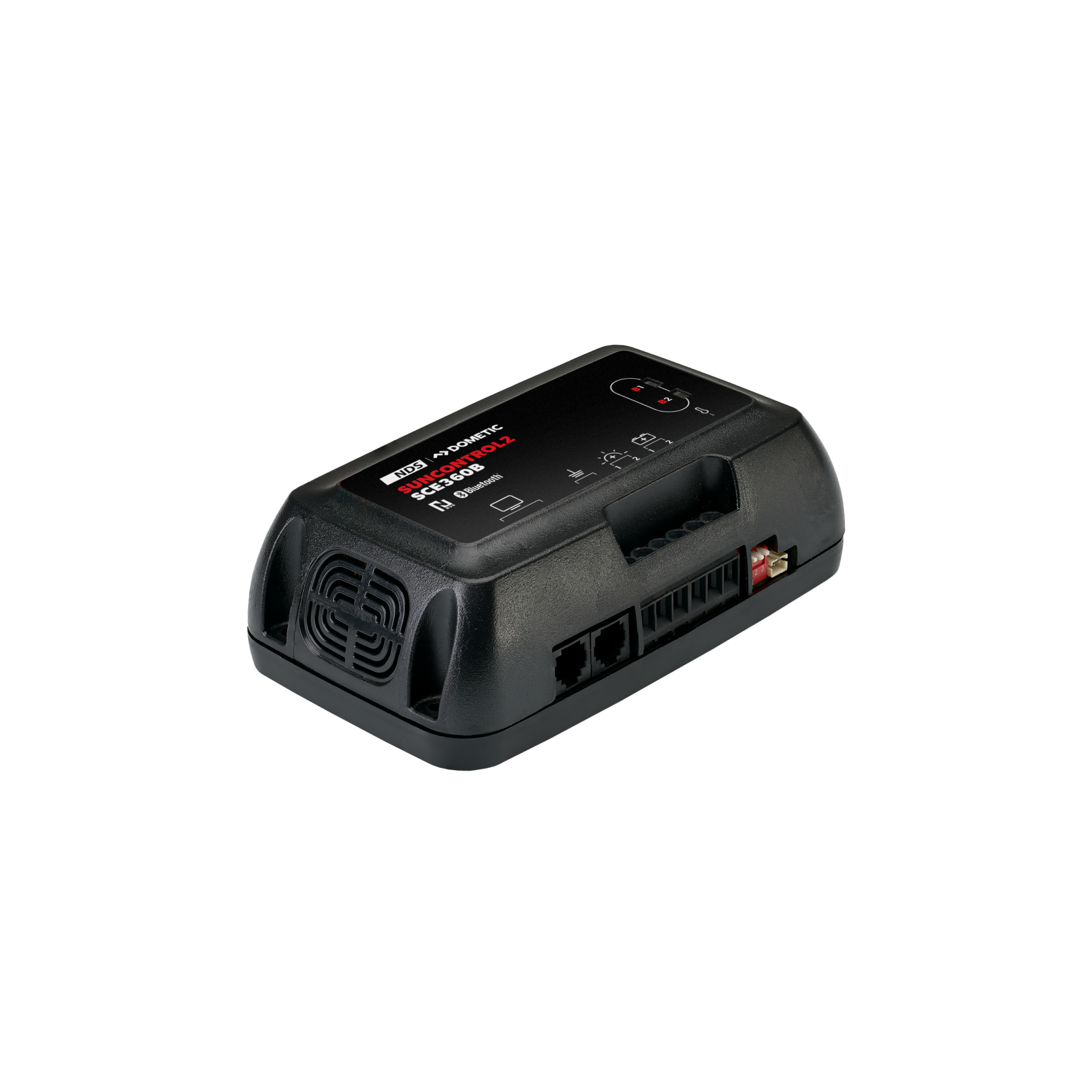

SUN CONTROL 2 SCE360B MPPT N-BUS BLUETOOTH

SUN CONTROL 2 SCE360B MPPT N-BUS BLUETOOTH

Original price was: 205,50 €.Current price is: 149,00 €.

  • Available
  • Delivery in 3-5 working days
SKU: 31098 Category: Manufacturer: NDS

Ask info

Share

SUNCONTROL2
MPPT Regulator with N-BUS (Bluetooth)

SUNCONTROL2 is the latest and innovative charge controller for photovoltaic modules from NDS with separate inputs for two solar panels.

MPPT technology allows you to maximize the energy from any type of solar panel (12V nominal), performing the most modern charging curves, even for LiFePO 4 batteries .

The special Opticharge algorithm developed by the NDS Software Team optimizes the charge based on the battery’s needs, extending its life.

SUN CONTROL 2 is equipped with the new N-BUS communication protocol, compatible with Ci-Bus: now it is possible to monitor, control and update all on-board devices from a single NDS Controller.

SUN CONTROL 2 is available in two different versions: SCE 320 for a maximum of 320W overall, and SCE 360 which supports up to 360W overall. Both models are available in a Bluetooth version with which you can use the NDS App.

WHAT DOES MPPT MEAN?

It is the algorithm that allows you to always exploit the “Maximum Power Point” supplied by the panel. A charge controller with MPPT technology is able to obtain a significantly higher yield than PWM technology (up to 25% more).
The MPPT regulator is ideal where space is limited, because in less space you get more energy!

WHAT IS N-BUS?

N-BUS is the multi-device communication protocol developed entirely by NDS and compatible with CI-BUS .

With N-BUS your energy devices are connected to each other and exchange information for more efficient energy management on board. The network of devices has many advantages, such as easy firmware updates and simplified control with a single simple interface.



Main Features:

  • Selector for Lithium LiFePO 4 , AGM, Gel and Free Acid
  • 6-stage charging curves with Opticharge algorithm
  • N-Bus communication protocol compatible with Ci-Bus
  • Ability to connect Display Bus and NDS Mobile App
  • Engine battery charging
  • separate inputs for two solar panels
  • Desulphation system
  • Temperature sensors (optional)
  • Opticharge Firmware
  • Bus Display (optional)
  • Bluetooth version for NDS App control

SUN CONTROL 2 Features:

PRODUCT CODE: SCE 360B

  • Rated Voltage: 12V
  • P.Max modules: 360W
  • Input limit voltage: 30V
  • Max charging current: 20A
  • MPPT Current: Yes
  • Protection fuse: 30A
  • Engine battery charger: Yes
  • Fan: No
  • Bluetooth: Yes
  • Dimensions (mm): 151x90x48
