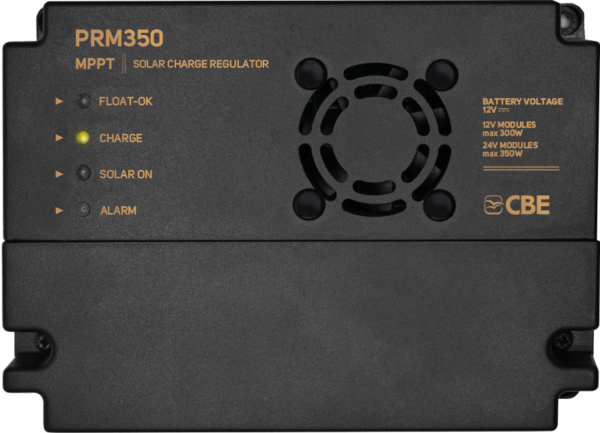

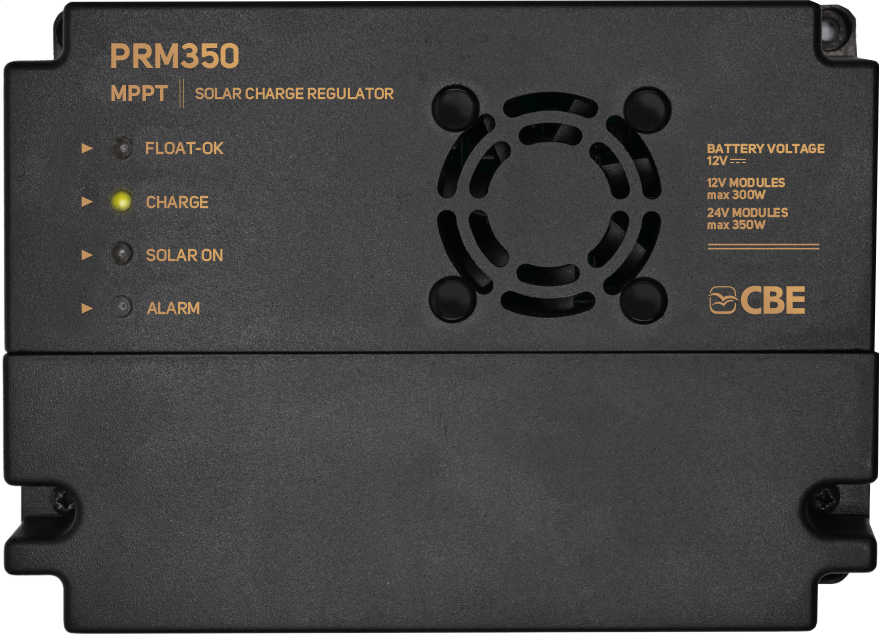

SOLAR REGULATOR 12V 350W PRM350

SOLAR REGULATOR PRM350

The PRM350 solar regulator is able to charge lead batteries (liquid, gel and AGM) and lithium 12V automatically by controlling and limiting the energy supplied by the connected photovoltaic modules. It has an MPPT (Maximum Power Point Tracker) system that allows it to draw the maximum power that can be supplied by the photovoltaic module in every situation.

The PRM350 is suitable for operation with photovoltaic modules from 32 to 72 cells up to a maximum power of 350W. For optimal performance of the device, we recommend connecting photovoltaic modules with a number of cells in series greater than 36, regardless of the type of installation chosen.

MODEL PRM350

CODE 204285
RATED VOLTAGE 12V
MAXIMUM OPEN CIRCUIT PHOTOVOLTAIC MODULE VOLTAGE (Voc) 45V
MAXIMUM APPLICABLE CURRENT 300W(32+40 cells) – 350W(41+72 cells)
MAXIMUM OUTPUT CURRENT 25A
NUMBER OF PHOTOVOLTAIC INPUTS 2
YIELD >95%
AUTOMATIC SWITCH-OFF in the absence of sunlight
END OF CHARGE VOLTAGE 14.2 V (A) – 14.4 V (B) – 14.7V (C) – 14.6V (Li)
MAINTENANCE VOLTAGE 13.5V (A) – 13.8V (B) – 13.8(C) 13.8V (Li)
NUMBER OF CHARGING LINES 4
REVERSE CURRENT BLOCKING DEVICE Electronic
REVERSE POLARITY PROTECTION Yes
THERMAL PROTECTION Yes
CONNECTION OF PT 742 TEST PANEL
SELF-CONSUMPTION 0A (auto-off in the absence of sunlight)
DIMENSIONS (mm) 150×110 H48
