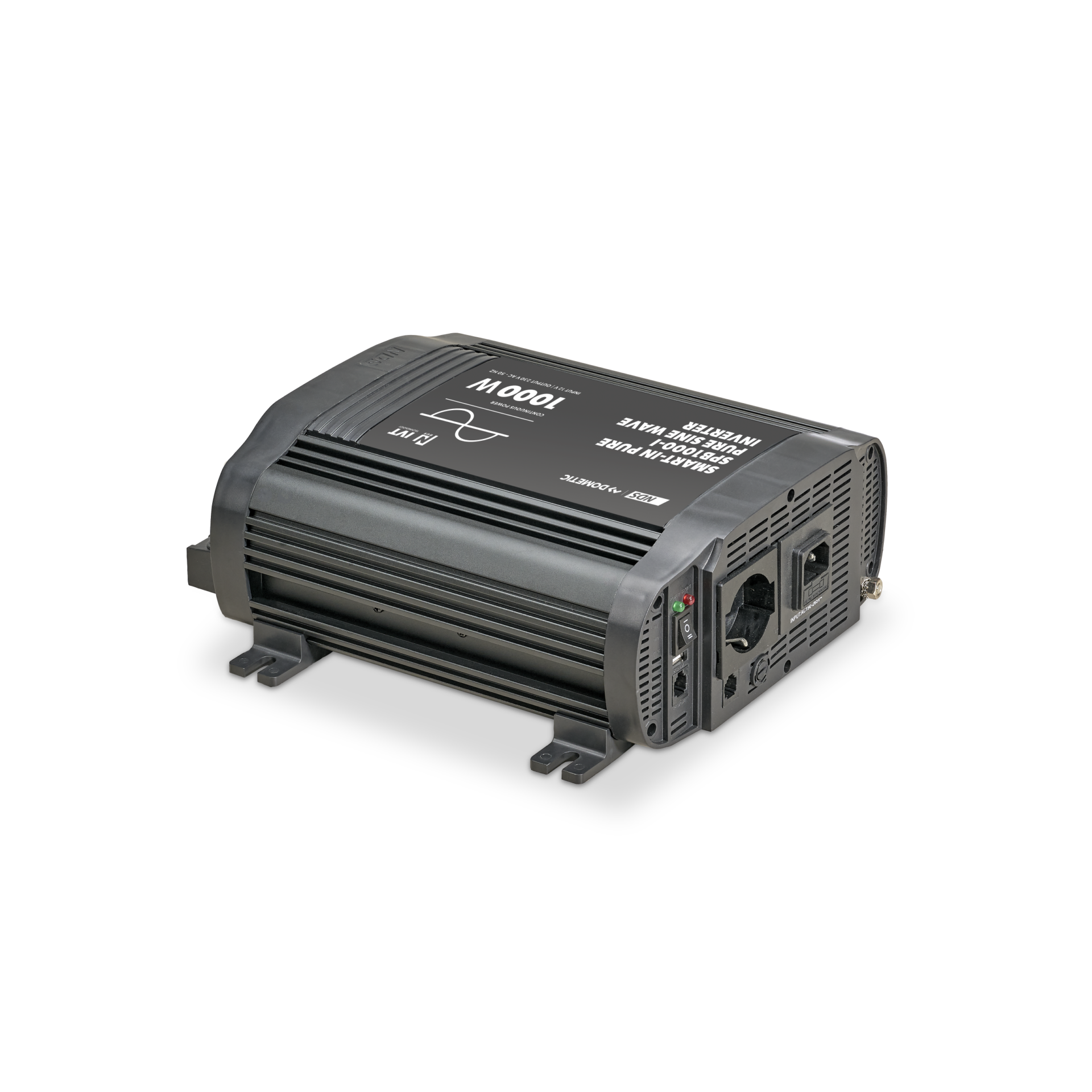

SMART-IN N-BUS PURE WAVE 12V-1000W IVT

Original price was: 497,00 €.Current price is: 399,00 €.

  • We do not know when the article will be available again.
Notify me when it will be available
SKU: 350365 Category: Manufacturer: NDS

Ask info

Share

SMART- IN PURE

pure sine wave with IVT N-BUS function

SMART- IN PURE with IVT function is a range of inverters with an integrated priority system (Priority Switch type). This special IVT function, through the two 230V input and output sockets, allows the management of the voltage coming from the inverter connected to the battery and from the external network.

When the external network (grid) is connected to the system, it will have priority in order to preserve the battery; when it is disconnected, the inverter will power the 230V output socket and the entire system connected to it.



WHAT IS N-BUS?

N-BUS is the multi-device communication protocol developed entirely by NDS and compatible with CI-BUS .

With N-BUS your energy devices are connected to each other and exchange information for more efficient on-board energy management. Device networking has many advantages, such as simple firmware updates and simplified control with one simple interface.



TECHNICAL DATA MOD. SMART-IN SPB1500I:

– Input voltage: 12V

– Output voltage (pure wave): 230 V

– Continuous output power: 1000 W

– Peak output power: 3000W (a few seconds)

– Output frequency 50/60 Hz (+/- 3 Hz)

– USB output 5V – 2.1A

– Dimensions: 305x270x108hm

– Cable with connector supplied: 16mm2 section, length 80cm

– Priority function: yes

– N-BUS function: yes

– Relay exchange time from inverter to 230V external network: 20ms

– Relay exchange time from 230V external network to inverter: 100ms
