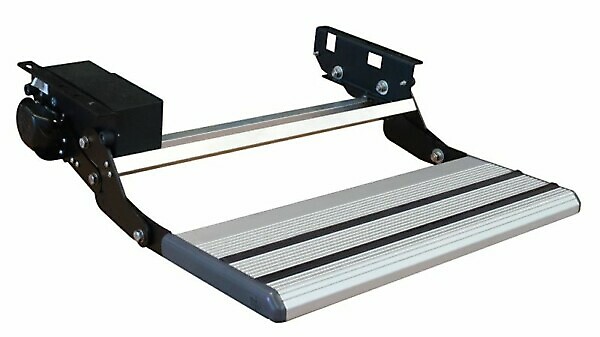

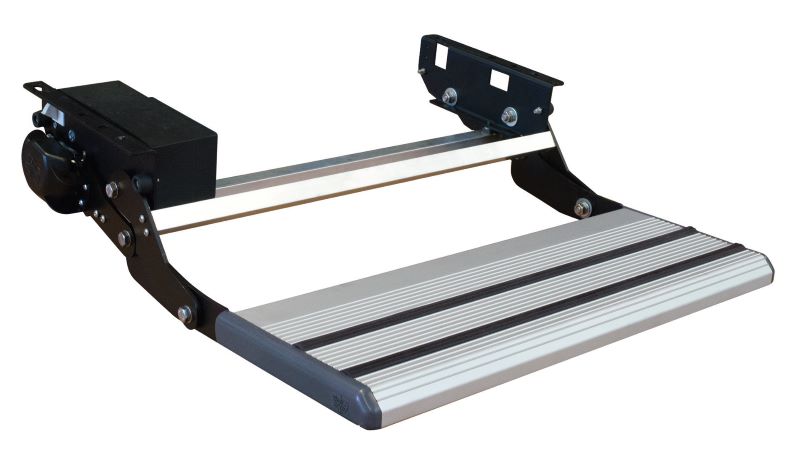

SINGLE ELECTRIC STEP PLATFORM MM.440

Electric step with tilting movement

New steel and aluminum structure designed for greater stability in all conditions and a very light weight.

Strong salt spray protection of steel parts with galvanizing and epoxy painting and stainless steel bolts.

Anodized aluminum platform with non-slip rubber and no water stagnation areas.

High power gearmotor on ball bearings with thermal protector in case of excessive strain.

Anti-shock clutch that protects the gearmotor from violent impacts on the platform when the step is moving.

Dead man opening and closing until complete mechanical stop.

Manual opening in case of emergency without the need to disconnect any mechanical component.

Watertight open step warning light incorporated into the engine crankcase.

Rapid movement on brass bushings capable of guaranteeing fluid movements over time.

Step complete with already mounted wiring.

Very quick step in operation; opening time 1.5 seconds.

Absorption: 3A.

Art. 10750/440S/96/000 – 460 mm 5,450 kg
