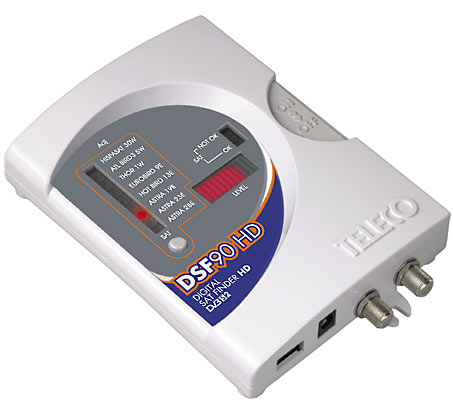

PRECISION POINTER SAT.DSF90HD

The DSF90 HD is compatible with all manual satellite systems and allows the user to find the desired satellite with a few simple and quick maneuvers.

Currently, the main difficulty in pointing a satellite that transmits digital TV signals is linked to the fact that digital signals are displayed on the TV screen with a certain delay in addition to the latency of LCD TVs and therefore the user is forced to carry out the aiming with very slow movements to avoid the risk of passing in front of the satellite without realizing it.

The DSF90 HD is the solution to this problem.

In fact, it is equipped with a signal meter which directly indicates the signal strength of the desired satellite.

There is no delay like in simple satellite pointers and the DSF90 HD, unlike other systems, also indicates whether the satellite found is the right one.

There are 8 pre-programmed satellites in memory.

How to use:

1. Select the satellite to point to (e.g. ASTRA 23).
2. Raise the dish until the correct elevation is indicated (see elevation map).
3. Rotate the dish SOUTH until the DSF90 HD emits a continuous “BEEP”.
4. Wait for the SAT OK LED to light up.
5. If the wrong satellite has been pointed, the SA T NOT OK LED lights up and you must therefore continue to rotate the dish until a new “BEEP” is emitted and the SAT OK LED lights up. .
6. When the maximum number of LEDs are lit on the LEVEL indicator, the aiming of the dish is optimised.
