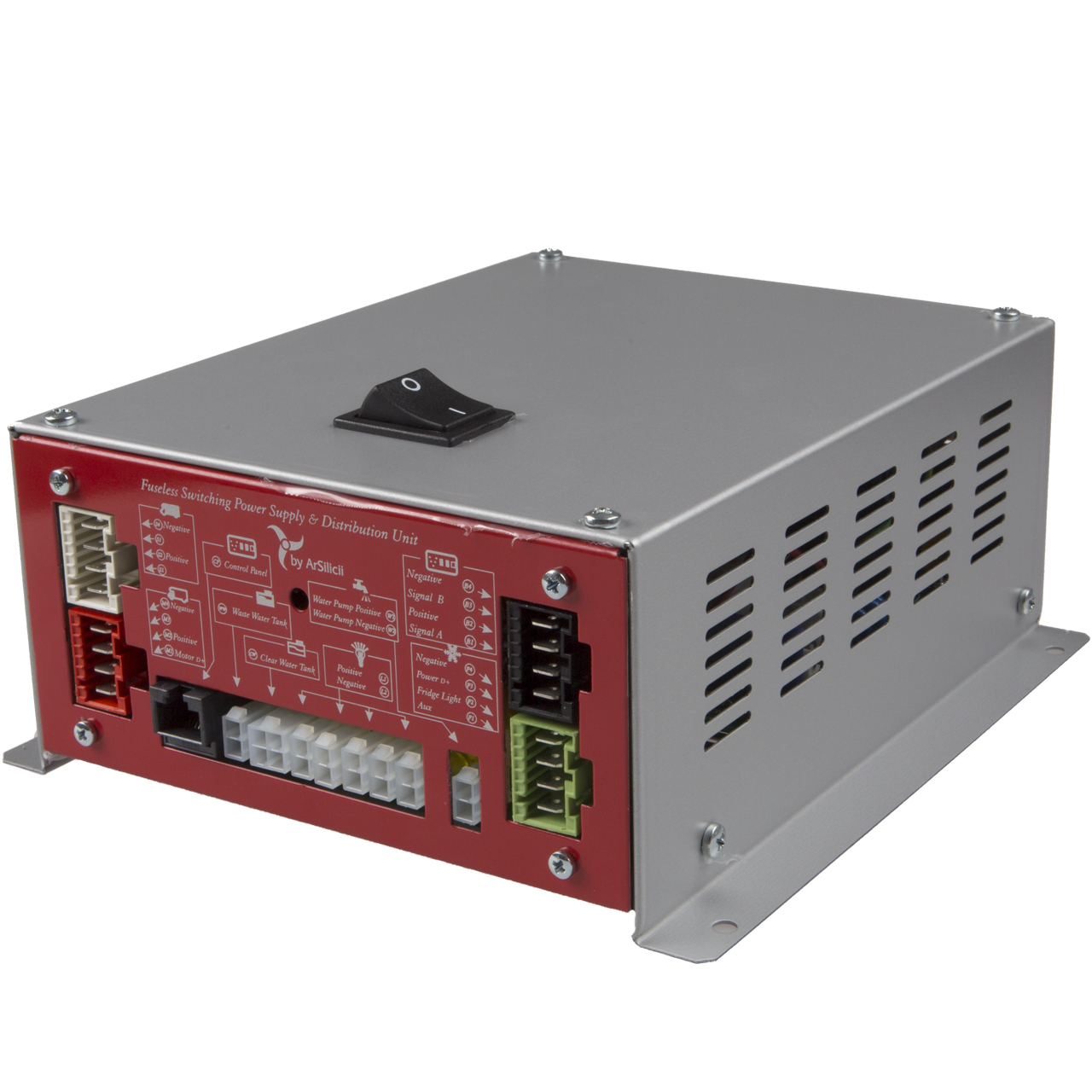

POWER SUPPLY 240W (D-) AL120

Switching power supply mod.: AL120-NB D-
ArSilicii code: XA00061010

The AL120NB model has two variants: one is mounted on FORD and FIAT mechanics and is recognizable by a gray label near the red connector of the engine battery with the writing “D-GND”, the other version is mounted on RENAULT mechanics and can be recognized because “MOTOR D+” is written on the screen printing relating to the red connector.

Connected to this type of power supply, in addition to the batteries and the 12V fridge control, are the outputs for the camper’s low-level utilities (toilet drain, stove fan, etc.), the output for the pump and those for the water tanks. light and grey.

Original replacements:
