PORTABLE MEGASAT SATELLITE SYSTEM

MEGASAT CAMPINGMAN PORTABLE 2

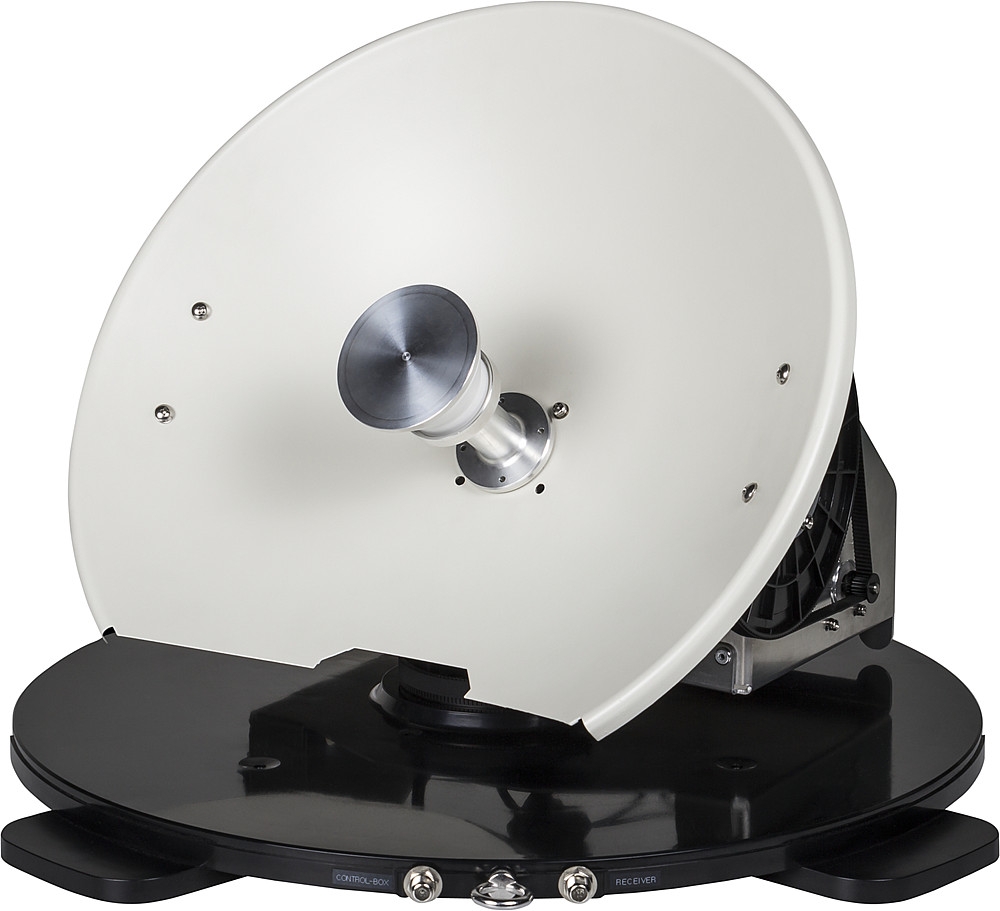

Mobile satellite antenna with automatic pointing and automatic tilt.
Thanks to the mobile and compact design, the antenna allows flexible use and can be placed anywhere with a clear view of the satellite.

Trees and other obstacles can be easily avoided.

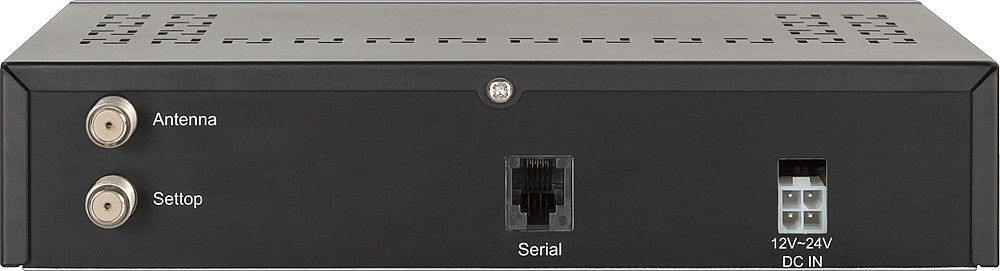

All you need for the antenna is a coaxial cable, which supplies power to the antenna and transmits TV and radio signals simultaneously.

With the push of a button, the antenna automatically detects the desired satellite within 1-2 minutes.

The integrated automatic tilt system allows the correct adjustment of the polarization of the LNB and thus guarantees first-class reception in all locations in Europe.

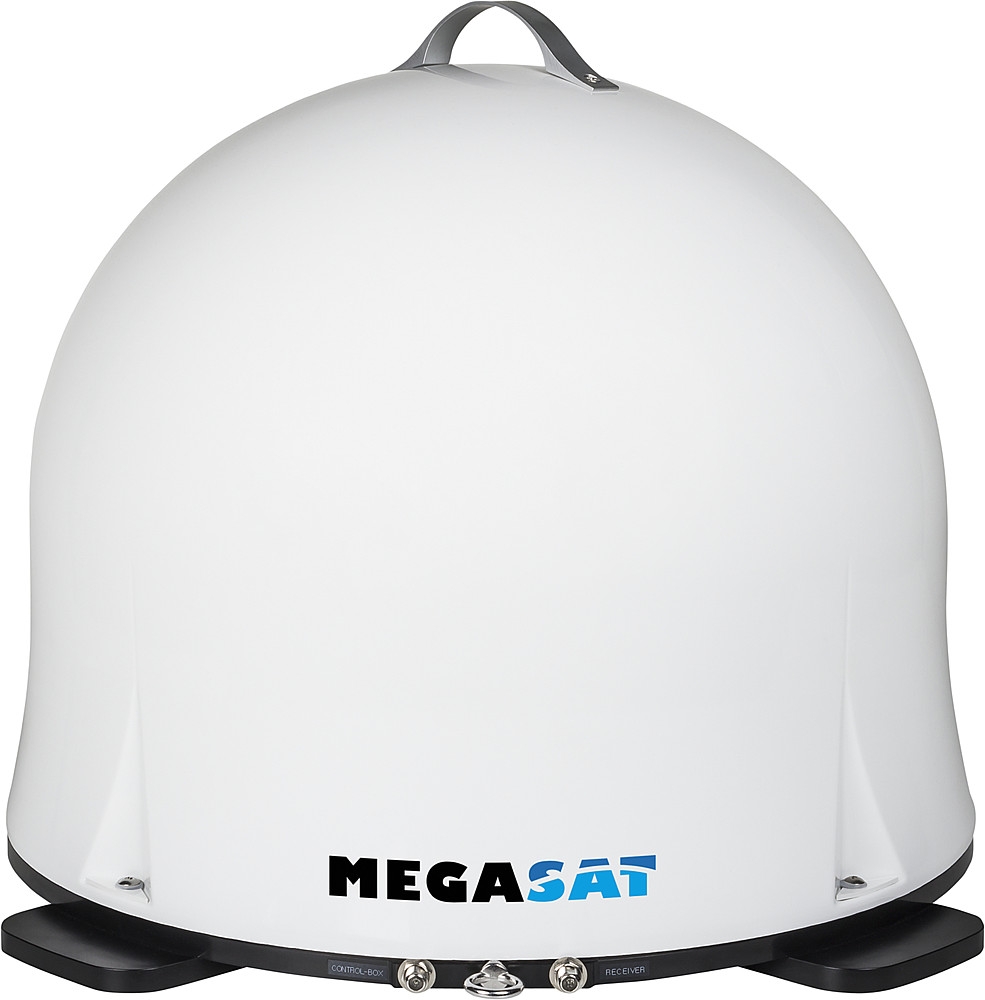

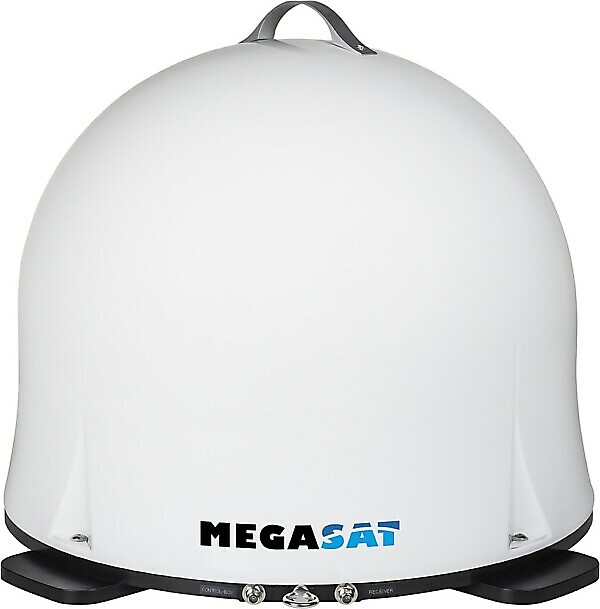

The antenna is optimally protected from external damage and weather influences thanks to an elegant plastic cap. Furthermore, the antenna offers a dual connection.

Technical data:

• Azimuth: 360°
• Operating temperature: -20°C to 70°C
• Input Frequency: 10.7 GHz – 12.75 GHz
• Altitude: 0° – 90°
• Pre-programmed satellites: 9
• Polarization: horizontal / vertical

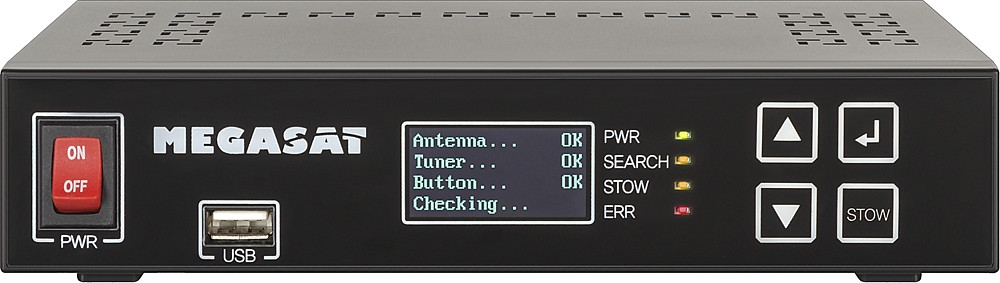

• Control unit: external
• Mirror diameter: 38 cm
• Power: 12-24V DC / 5A
