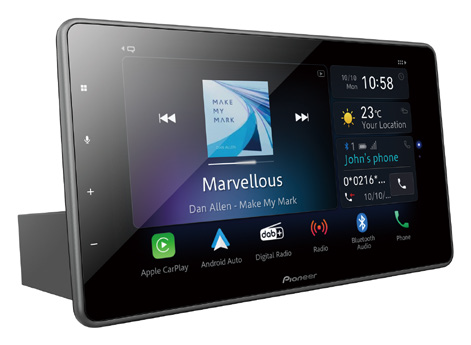

PIONEER SPH-EVO950DAB 9" DUCATO 7 MULTIMEDIA SYSTEM

Pioneer Ducato 7 SPH-EVO950DAB-C Multimedia Station

for Fiat Ducato, year 04/2014 – 08/2021

With either “mobile” or “tablet” style installation, the SPH-EVO950DAB Modular Multimedia can be installed in many types of vehicles, such as traditional

1-DIN, 2-DIN, specific for campers or even vehicles where a traditional stereo does not fit, thanks to its unique universal floating installation or in-dash installation capabilities.

Pioneer introduces two new unique features on the SPH-EVO950DAB.
1. Pioneer split-screen mode to view and control specific functions on an adjacent partition of the screen by dynamically resizing the Apple CarPlay or Android Auto user interface.
2. Selectable display mode, which provides greater visibility by allowing you to switch the screen mode between light mode and dark mode according to your preference.

There are also packages available that include a dedicated camper navigation app. This camper navigation app includes dedicated routes designed for your camper that incorporate the dimensions of the vehicle for low bridges and narrow roads, downloadable European maps for 48 countries, 24,000 camper POIs selected by PROMOBIL, real-time traffic information, 3 years of map updates and much more.

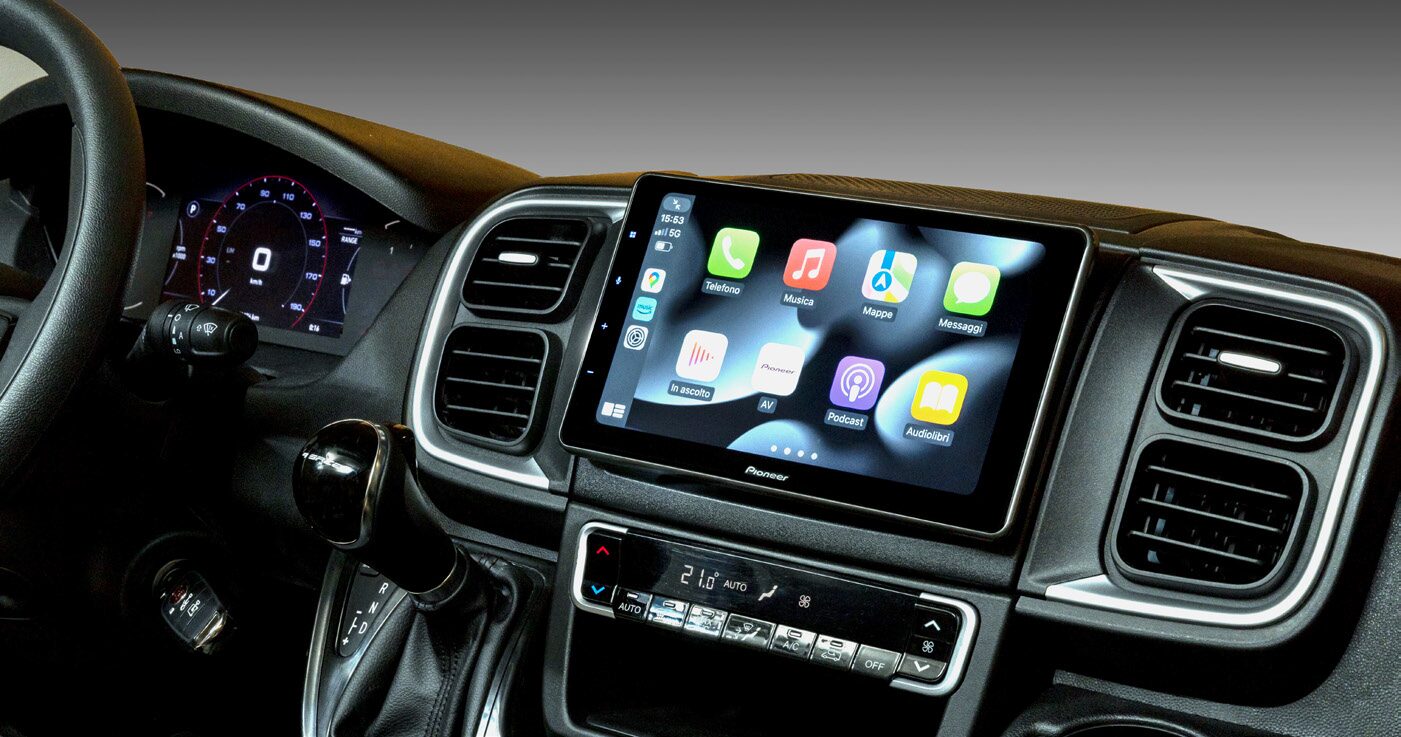

The SPH-EVO950DAB is also available as a complete solution specifically for your Fiat Ducato 8* (model year 2021 onwards), Fiat Ducato III* (Type X290, model year 2014 onwards), Ford Transit** 2T (V363MCA, model year 2019 onwards), Ford Transit** 2T (V363, model year 2013 to 2018 onwards), Ford Transit** Custom (V362MCA, model year 2018 onwards) and Ford Transit** Custom (V362, model year 2013 to 2017 onwards) campervan. *Compatible with campervans with factory-fitted stereo when new.

**Compatible with RVs without a factory installed stereo when new or when a 1-Din stereo has been installed from the factory.

MAIN FEATURES:

• Extra large 9” capacitive multi-touch display.
• Built-in Wi-Fi for Apple CarPlay via wireless connection / Android Auto via wireless connection
• Built-in Bluetooth and DAB/DAB+ digital radio (optional DAB antenna required)
• Bluetooth: Connect to two phones, hands-free calling, automatic phonebook transfer, audio streaming (A2DP) External microphone included
• Advanced audio features: 13-band graphic equalizer and time alignment
• Weblink 2.0 for Phone and Tablet Applications
• The Pioneer Car AVAssist app on the user’s smartphone supports simple operation/customization of web navigation and home screen.
• Hybrid radio including metadata, recommended radio stations and network monitoring (DAB+ / FM / IP radio)
• Installable in 1DIN dashboard opening
• Adjustable in depth, height and angle

GENERAL:

• 9” WSVGA high-resolution capacitive multi-touchscreen.
• Built-in Wi-Fi for Apple CarPlay via wireless connection
• Built-in Wi-Fi for Android Auto via wireless connection
• CarPlay and Android Auto with split-screen capability
• Bluetooth and DAB / DAB+ digital radio combined
• Digital Radio Tick Mark approved product
• Siri without eyes
• Advanced audio features
• Excellent sound quality
• RGB: multi-color key illumination and LCD display
• Direct iPhone control
• Weblink 2.0 for phone and tablet applications
• Compatible with Pioneer Car AVAssist app
• Compatible with rear view camera (optional ND-BC8 required)

CONNECTIVITY:

• Apple CarPlay
• Android Auto
• Hybrid radio, included
– Metadata for each radio source
– Recommended radio station
– Network monitoring (DAB+ / FM / IP radio)
• Waze via Apple CarPlay or Android Auto
• Spotify via Apple CarPlay or Android Auto
• Rear USB
• Direct iPhone control
• Rear Aux input
• Wired remote control
• CAN-BUS support (optional vehicle adapter required)
• 2 camera inputs (RCA)

BLUETOOTH:

• Pioneer Bluetooth for hands-free calling and audio streaming
• 2 phones connected full time
• Bluetooth automatic pairing
• External microphone included
• Wireless audio navigation
• Broadband speech

AUDIO:

• Excellent audio quality
• MOSFET 50W x 4 maximum output power
• Advanced Sound Retriever (ASR) and ASR for Bluetooth
• Music navigation
• 13-band graphic equalizer
• Low pass/high pass filter
• Direct subwoofer drive
• 3-way network mode
• Time alignment
• 3 RCA pre-outs

TUNER:

• DAB/DAB+ digital radio
• Auto tune, preset buttons
• Digital Radio Tick Mark approved product
• FM/AM RDS tuner
• 24 presets

PLAYING FILE:

• Audio: WMA/MP3/WAV/AAC/FLAC/DSD
• Video: H.264/Mpeg4/JPEG/MKV/FLV/DiVX

ACCESSORIES

• Included – Microphone for hands-free calling
• Included – USB Extension Cable

Code: P80022

Version: SPH-EVO950DAB -DUCATO 7
