120W NDS SOLAR PANEL KIT WITH SCE320B MPPT REGULATOR
Solenergy photovoltaic panels combine modern construction technologies in the photovoltaic field with a complete and easy-to-install setup.
The rounded bracket, integrated into the panel, guarantees superior aerodynamics and sturdiness while also promoting adequate ventilation, avoiding any loss of performance.
Each module is made with high purity monocrystalline silicon cells, protected by a sheet of Tedlar and textured tempered glass characterized by: high transparency, low iron content and anti-reflective coating which increases efficiency up to 18.05%, all enclosed in two sheets of EVA (Ethylene Vinyl Acetate). Special by-pass diodes protect the cells from overvoltages and minimize power loss due to any shading phenomena.
Solenergy modules comply with the most rigorous quality and safety standards, IEC61215, IEC61730 and ISO9001/ISO14000 certification, in fact they resist the most severe environmental and pollution conditions
Integrated bracket
The particular aluminum brackets integrated into the panel, with aerodynamic frames and plastic side covers make the panel robust, safe and easy and quick to install.
Architecture
Aluminum frame High transmittance glass: 91.5% , Low resistance connection strip: <69.31MΩ Eva transmittance: <30% (290-380MN).
6 m cable.
Each panel is equipped with a 6 meter long bipolar connection cable, with an external protective sheath resistant to any climatic condition

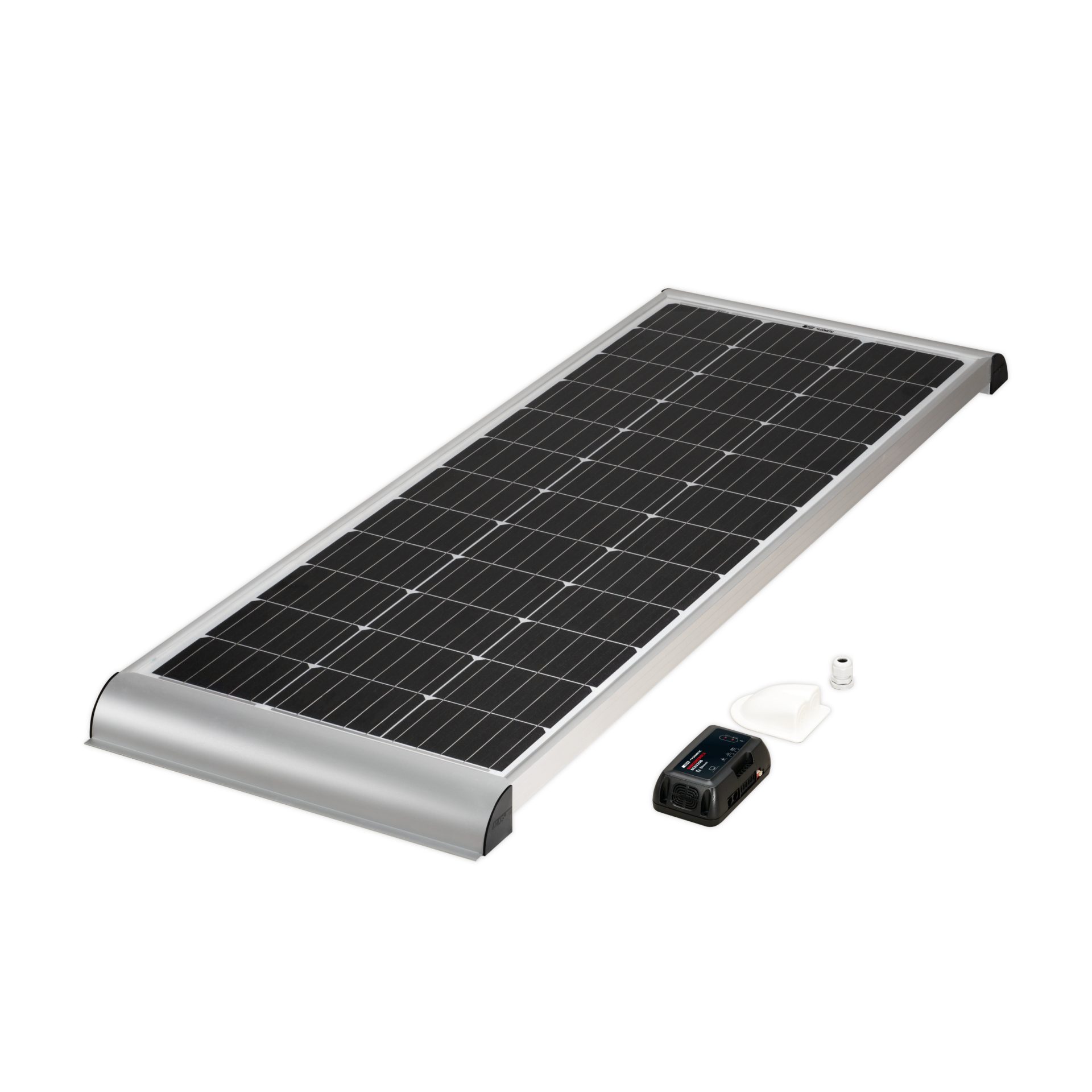

KP120-300 NDS SOLAR PANEL KIT (PSM 120WP+SCE320B+Cable gland)
Complete with SUN CONTROL SCE320B, BRACKETS AND CABLE GLAND
TECHNICAL FEATURES:
- Number of cells: 36
- Cell type: Mono
- Rated voltage: 12V
- Maximum Power: 120WP±3%
- Tens. open circuit: 23.75V
- Tens. max power: 19.62V
- Max power current:6.12A
- Dimensions mm.: 1475*541*60
- Weight: 10.5 kg
- Length 6m cable: 2×2.5mm2

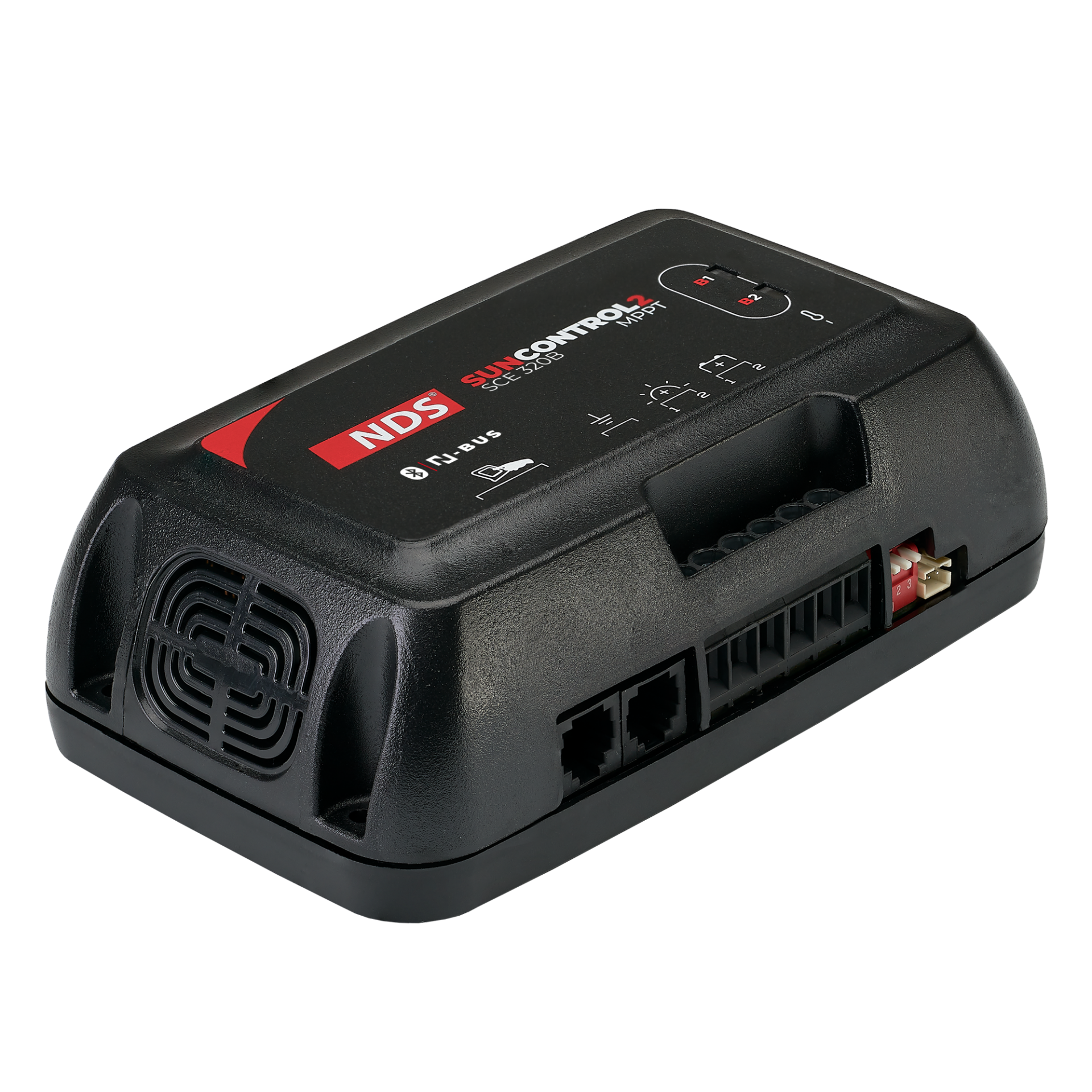

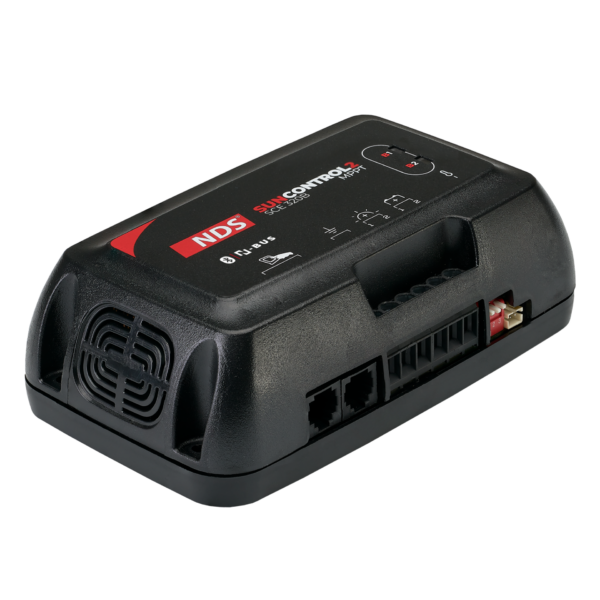

SUNCONTROL2
MPPT controller with N-BUS (Bluetooth)
SUNCONTROL2 is the latest and innovative charge controller for photovoltaic modules from NDS with separate inputs for two solar panels.
MPPT technology allows you to maximize the energy from any type of solar panel (12V nominal), performing the most modern charging curves, also for LiFePO4 batteries.
The special Opticharge algorithm developed by the NDS Software Team optimizes the charge based on the needs of the battery, extending its life.
SUNCONTROL2 is equipped with the new N-BUS communication protocol, compatible with Ci-Bus: it is now possible to Monitor, Control and update all on-board devices from a single NDS Controller.
WHAT IS N-BUS?
N-BUS is the multi-device communication protocol developed entirely by NDS and compatible with CI-BUS.
With N-BUS your energy devices are connected to each other and exchange information for more efficient on-board energy management. Device networking has many advantages, such as simple firmware updates and simplified control with one simple interface.
Main features:
Selector for Lithium LiFePO4, AGM, Gel and Free Acid
6-stage charging curves with Opticharge algorithm
N-Bus communication protocol compatible with Ci-Bus
Possibility to connect Display Bus and NDS Mobile App
Engine battery recharging
Separate inputs for two solar panels
Desulfation system
Temperature sensors (optional)
Opticharge firmware
Display Bus (optional)
Bluetooth version for control with NDS App
SUNCONTROL2 Features:
PRODUCT CODE: SCE 320B
Nominal Voltage: 12V
P.Max modules: 320W
Input limit voltage: 30V
Max charging current: 20A
MPPT Current: Yes
Protection fuse: 30A
Engine battery charger: Yes
Fan: No
Bluetooth: Yes
Dimensions (mm): 151x90x48
