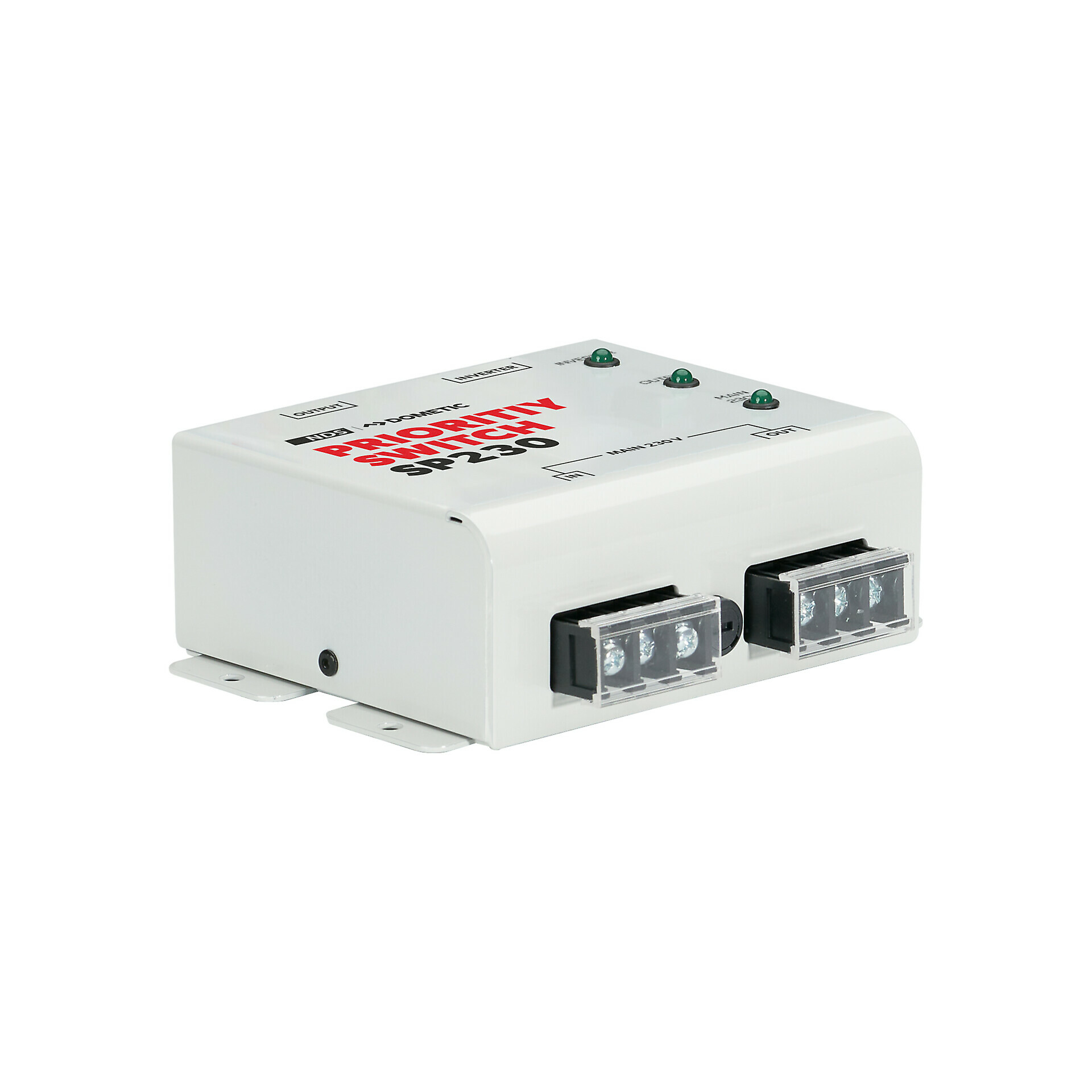

NDS PRIORITY SWITCH 230V

PRIORITYSWITCH is the intelligent device that automatically switches from inverter to grid and vice versa. The system selects the most convenient source with 230V voltage when two power sources are available in the system: grid power and an inverter connected to the battery. By connecting the two power sources to the PRIORITYSWITCH input, the external grid will always have priority.
Thanks to this system it is possible to avoid compromises to the system, due to the overlapping of the two sources (Inverter+Grid).

The device has two outputs, the first to connect all the utilities to be used only when the fixed network is present, for example air conditioners, refrigerators, and large utilities; the second output is instead dedicated to all the accessories that can be powered both by inverters and by the fixed network, for example the 230V sockets of the vehicle, boat or vehicle in general.

PRIORITY SWITCH features

• Input/Output Voltage 230VAC/230/VAC
• Maximum Output Current 13A
• 15A fuse
• Maximum inverter power 3000W
• Self-consumption 30mA only from grid
• Dimensions 145x133x55mm
