HARDENING LITHIUM BATTERY
it is the new generation top of the range LiFePO4 battery, designed and produced entirely in Italy.
The TEMPRA battery has the best power-to-weight ratio on the market, achieved thanks to the new NDS HDP (high density power) cells which allow you to concentrate a lot of power in a small space!
Up to 150Ah of capacity in the size of a classic L5 cassette. The L5 cassette is a standard that usually holds a maximum of 100Ah and fits under the Fiat Ducato seat.
In other words, where before there were 100Ah, now there are 150Ah, this means you have 50% more autonomy for your holidays.
The safety systems of the new BMS also include optimal charge management, so it is possible to connect the TEMPRA battery to any charger, even if designed for lead batteries. The charge management and the Smart Balance of the BMS make the cells always efficient and performing over time.
The heated versions can also be used in extreme temperatures, up to a maximum of -20°C to be able to use the batteries in any climatic circumstance.
The N-BUS system makes the TEMPRA battery an integral part of the NDS energy ecosystem controllable from the DTB 01 Display Bus and NDS Mobile App .
TEMPRA, Top of the Range NDS Lithium Battery.
SAME DIMENSIONS 50% MORE CAPACITY
The new NDS HDP (high density power) cells concentrate enormous power in a small space, achieving the best power-to-weight ratio in the category. The TEMPRA has +50% more autonomy, in the same dimensions as an L5 cassette: where usually the maximum capacity is 100Ah with TEMPRA you have up to 150Ah!
COMPATIBLE WITH ANY BATTERY CHARGER AND CHARGING SOURCE
The control and safety systems inside the TEMPRA battery automatically regulate the charge values entering the battery. This means that it is possible to connect the battery to any pre-existing charging source without problems, even with a charger that is not suitable for LiFePO4 batteries, such as those for Lead/Acid batteries.
OPERATIVE EVEN AT LOW TEMPERATURES
Thanks to the heating function (for models that provide it) your TEMPRA battery will work perfectly down to -20°C
BMS SMART
The BMS is the most important and complex part of the lithium battery. The BMS is the brain that manages all the functions, which is why NDS has decided to design its Battery Management Systems in detail. This means that everything is always under control and safe, both for the battery and for those who use it.
EVERYTHING UNDER CONTROL WITH THE DISPLAY AND MOBILE APP
TEMPRA is equipped with the new N-BUS communication protocol which allows you to connect all devices (equipped with the same protocol) in a single energy network. With a single control device: DISPLAY BUS DTB01 or with NDS MOBILE APP , it is possible to control all connected devices, monitor their status and also update them to the latest firmware version (if there is a bluetooth master in the N-BUS network).
The Advantages of a Lithium Battery:
- FAST CHARGE: The TEMPRA battery accepts super fast charges, up to 1C. Simply turn on the vehicle’s engine for 30 minutes to ensure a day of autonomy!
- ZERO MAINTENANCE Internal chemistry and electronics combine to make this type of battery completely maintenance-free .
- 70% LESS WEIGHT The high density HDP NDS cells with Chemistry (LiFePO 4 ), make TEMPRA a concentrate of power, and the saving in terms of weight is incredible: over 70% less weight compared to a battery lead/acid of equal capacity!
- RESISTANT TO HEAVY LOADS Up to 4 hours with active air conditioning and up to 50% more autonomy than the classic lithium battery.
The Tempra battery withstands, without damage, heavy energy demands such as air conditioners, coffee machines, hair dryers and the use of inverters in general.
- HIGH NUMBER OF CYCLES The charging cycles of a lithium battery can seem almost infinite! It is possible to reach 3000 cycles with a discharge depth of 80%, but by avoiding excessive discharges, they can reach up to 5000!
- SAFE AND RELIABLE The chemistry (LiFePO 4 ) gives the battery an innate thermodynamic stability, the powerful integrated BMS (Battery Management System) protects the battery from incorrect charging voltages, short circuit/polarity inversion, overvoltage, excessive discharge.
Ci-BUS Compatible
The new devices equipped with the NDS N-BUS protocol are also compatible with the Ci-BUS protocol.
N-BUS devices equipped with Bluetooth can be controlled via the NDS Mobile App downloadable from Google Play or the App Store.
Furthermore, if there is a Bluetooth Master device in the N-BUS network, such as the TEMPRA lithium battery, the NDS App allows you to update the firmware of all connected N-BUS devices.
NDS CONTROLLER Display Bus and NDS Mobile App
Devices equipped with the new N-BUS protocol, such as TEMPRA Lithium battery , can be governed by a single Display Bus (optional) and NDS mobile App .
Controlling TEMPRA via the Display Bus or via the NDS Mobile app is easy and intuitive, you can monitor all the battery parameters, check the state of charge (SoC), the charging and discharging current, the health status, automatic or manual battery disconnect function , battery temperature, remaining charge or discharge time.
With Display Bus and NDS Mobile App , your entire energy system is always just a click away.

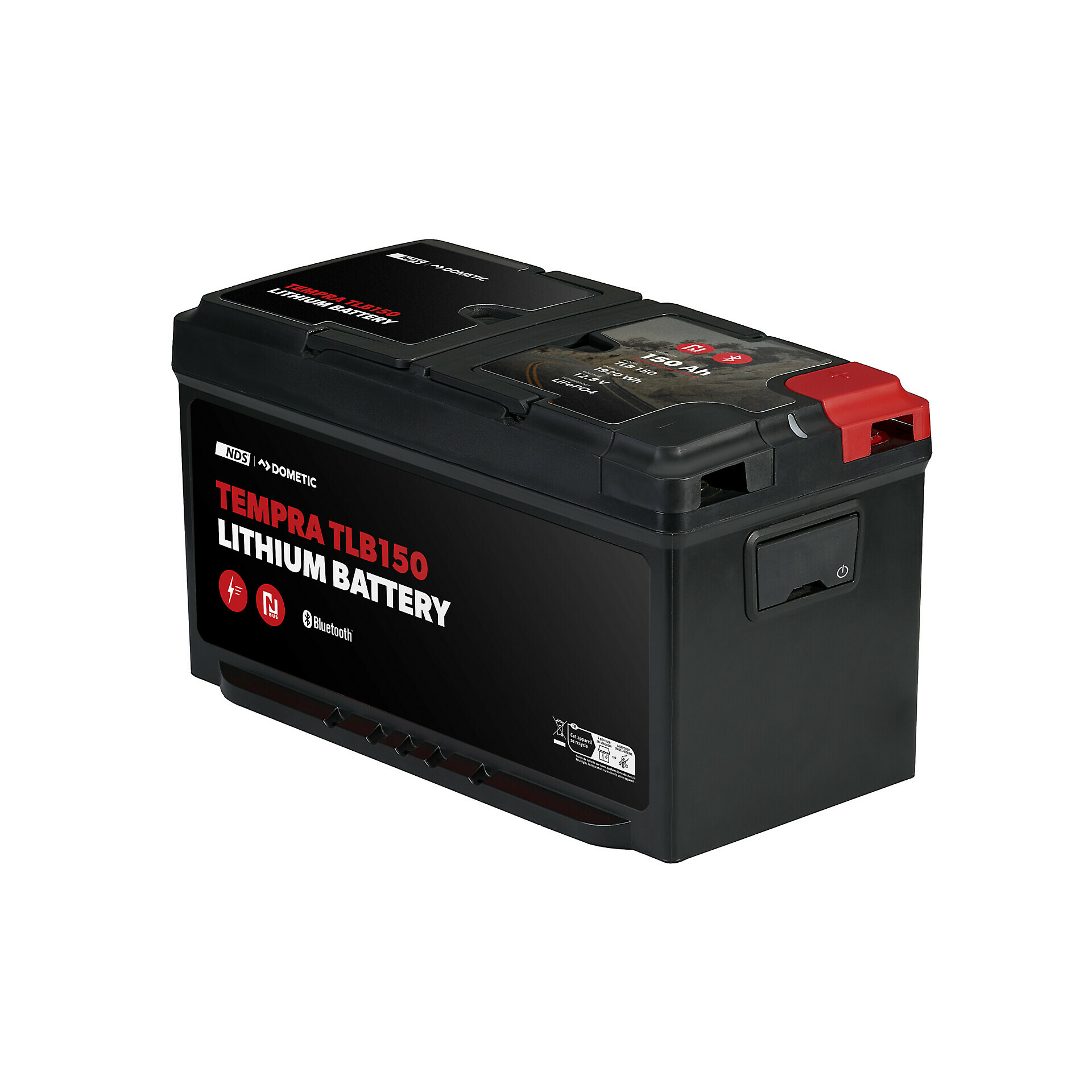

TECHNICAL FEATURES:
- Model code: TLB150
- Voltage: 12.8V
- Capacity: 120Ah
- Max continuous discharge: 135A
- Max discharge 30min: 150A
- Max Charge: 1C
- Charging temperature: 0°C / +45°C
- Discharge temperature: -20°C / +60°C
- Weight: 16 kg
- Dimension (mm): 341x176x190h
With TEMPRA it is possible to connect up to 4 batteries in parallel
