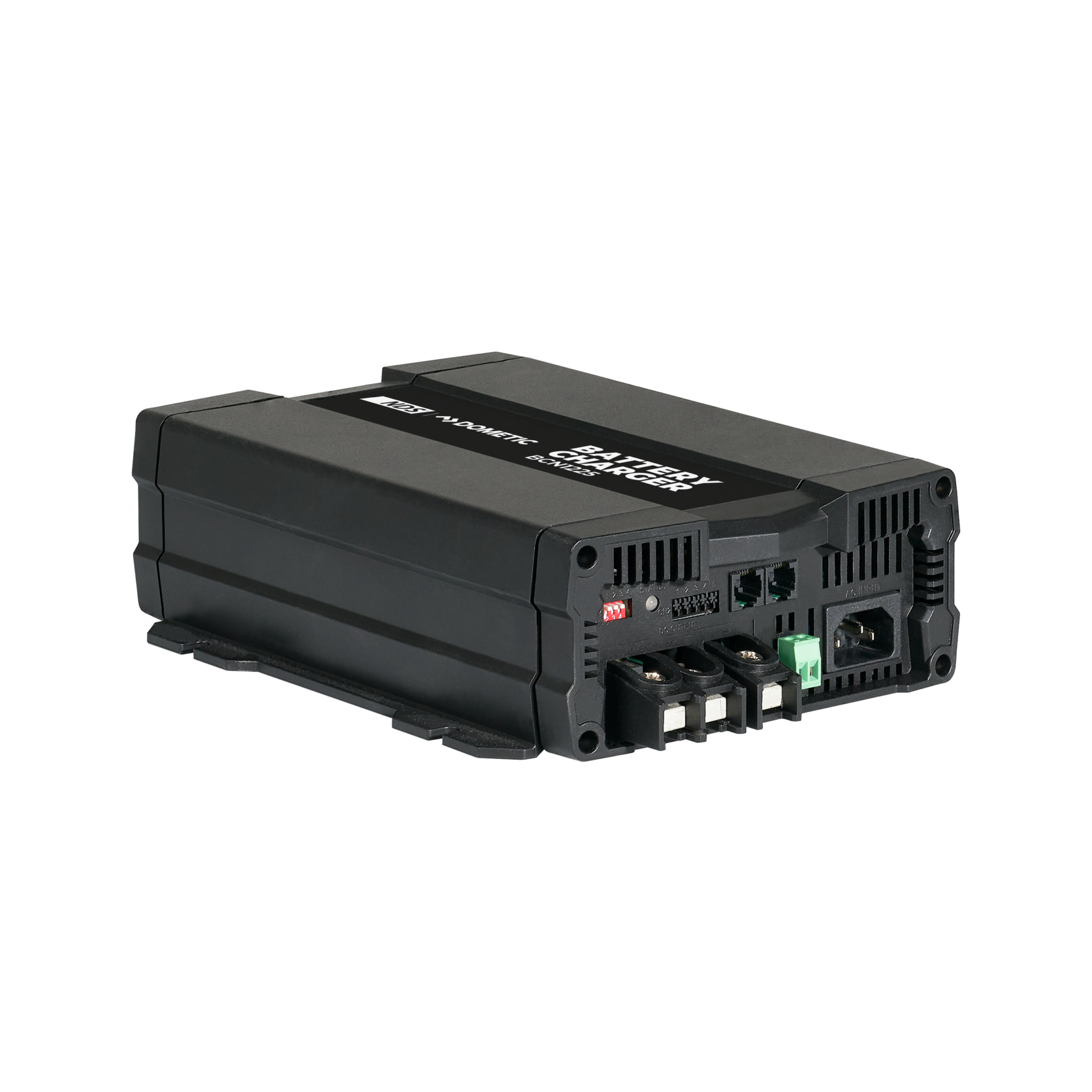

NDS BCN 12V-25A BATTERY CHARGER

Original price was: 419,00 €.Current price is: 329,00 €.

  • Available
  • Delivery in 3-5 working days
SKU: 350370 Category: Manufacturer: NDS

Ask info

Share

BATTERY CHARGER BCN

Powerful AC-DC connected chargers



MAXIMUM CHARGING AND ENERGY EFFICIENCY
WITH THE NEW CONNECTED BATTERY CHARGERS BCN.

BATTERY CHARGER BCN

When 230Vac is available, it is important to have maximum charge for the on-board batteries in the shortest possible time. The new Battery Charger BCN (AC-DC) allows you to charge up to 3 batteries simultaneously, with an optimized 6-step charging curve, and control of the charging current via Display Bus DTB01 or NDS | Dometic App Mobile for Smartphone.

The Ci-Bus protocol, compatible with N-BUS, allows the BCN to be integrated into the NDS | Dometic energy ecosystem, sharing useful information for charge monitoring. To use the mobile App, it will be sufficient that a Tempra Lithium Battery or a Suncontrol2 Bluetooth and Display DTB01 is connected to the N-BUS network.

The incredible charging power, up to 80A (depending on the model) of Battery Charger BCN, is the ideal solution to make the most of the fast charging feature of the batteries.

Lithium (LiFePO4), and by selecting the appropriate charging curve it is possible to safely charge even Lead/Acid batteries (AGM, Gel, Free Acid).

The separate power outputs (excluding the one dedicated to the starter battery) allow for innovative flexibility of use: the outputs can be used individually, or added together to obtain the maximum nominal charging power.

The 25A model has a separate output dedicated exclusively to charging the starter battery and with the OPTICHARGE algorithm, it is possible to keep the charger always connected to the mains, recharging the batteries only when necessary, without stressing them.

NDS CONTROLLER

Display Bus and NDS Mobile App
Devices with N-BUS protocol, such as POWERSERVICE PSB, can be controlled by a single Display Bus (optional) and NDS mobile App (if there is a Bluetooth NDS device in the network).
Find out how easy it is to control PSB via Display Bus (or via dip switch) set the desired charging curve, the charging current limit, always at your disposal, just a click away.



MAIN FEATURES:

  • Charge up to 3 batteries simultaneously
  • Monitorable from Mobile App and DTB01 Display
  • Charge the starter battery (BCN1225)
  • Suitable for LiFePO4 and all Lead Acid batteries
  • OPTICHARGE charging firmware
  • Flexible power output configuration

Model BCN 1225

  • Charging current: 25A
  • Number of power outputs: 2 Service batteries, 1 Starter battery
  • Charging curve: AGM, Gel, Free Acid, LIfePO4
  • Charging type: 6 steps
  • Dimensions: 238x179x63mm
