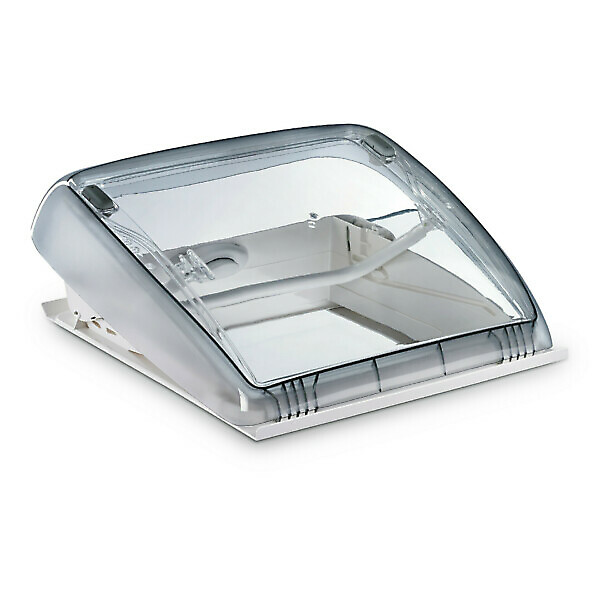

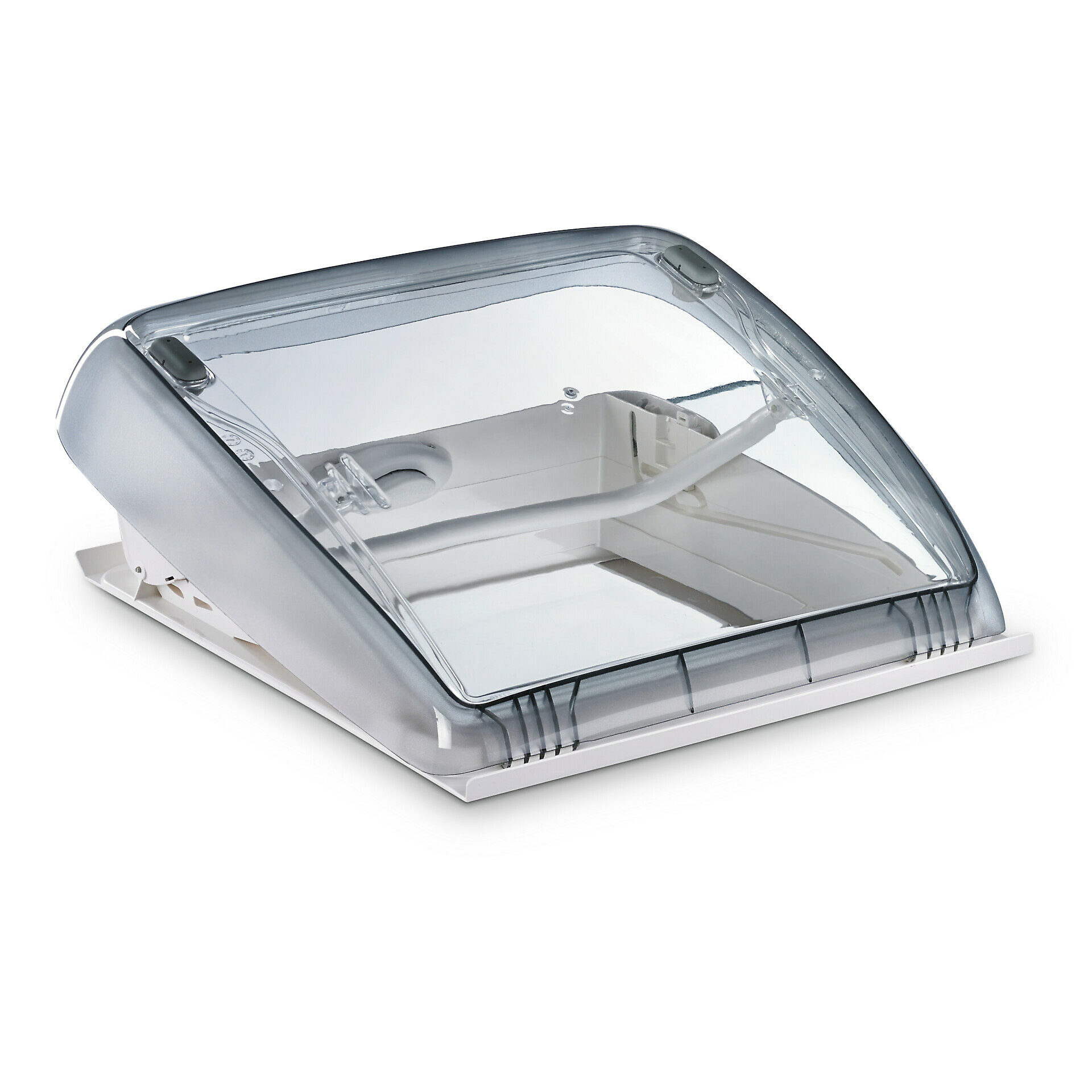

MINI HEKI STYLE WITHOUT VENT 43-60MM

It opens in three positions: fully open, semi-open and anti-bad weather position

Double acrylic glass dome

Glass dome with a special aerodynamic shape

Operated by hand

Without forced ventilation

400 x 400 mm

Specifications:

• Product depth dimensions, [mm] 520
• Product width dimensions, [mm] 535
• Dimensions ordered width, [mm] 400
• Dimensions ordered height, [mm] 400
• Opening width dimensions, [mm] 380
• Opening height dimensions, [mm] 370
• Net weight, [kg] 3.30
• Possible min material thickness 1, [mm] 43
• Possible max material thickness 1, [mm] 60
• Max opening angle, [°] 50
• Opening height [mm] 400
• Opening width [mm] 400
