OBLO MINI HEKI FL WITH FORCED VENTILATION 25-42MM

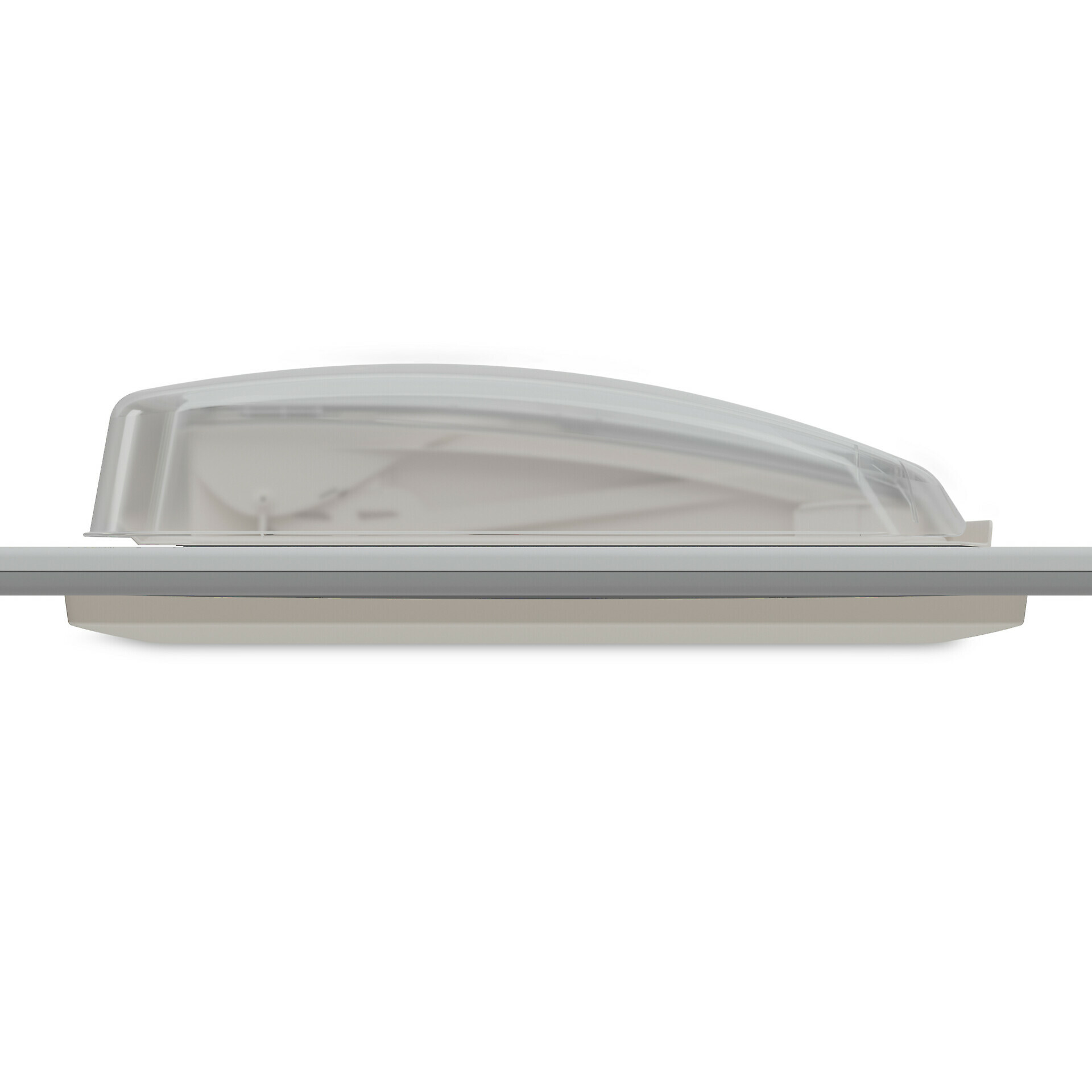

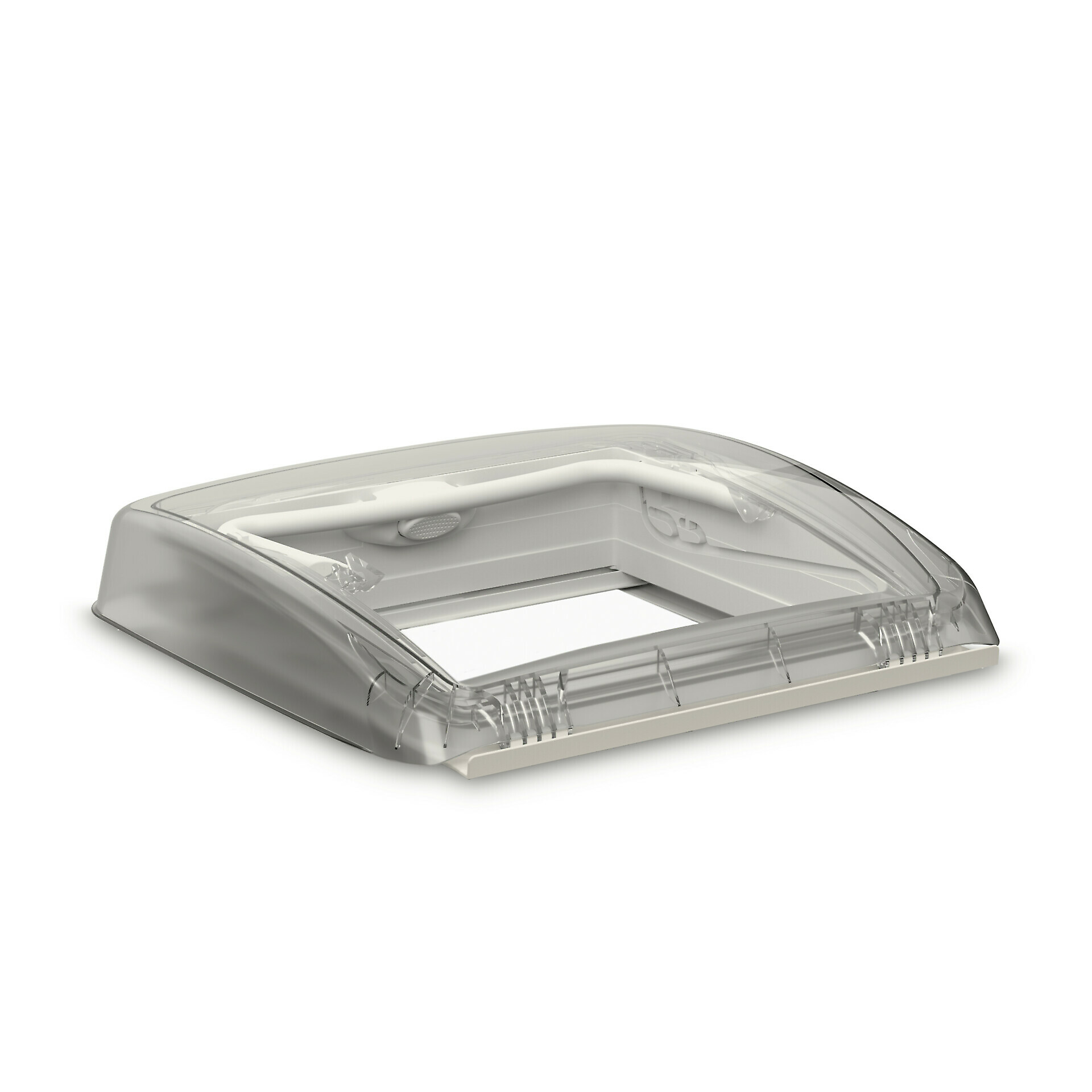

Aerodynamic glass dome

High-quality double-walled PMMA acrylic glass reduces the noise of rain or hail

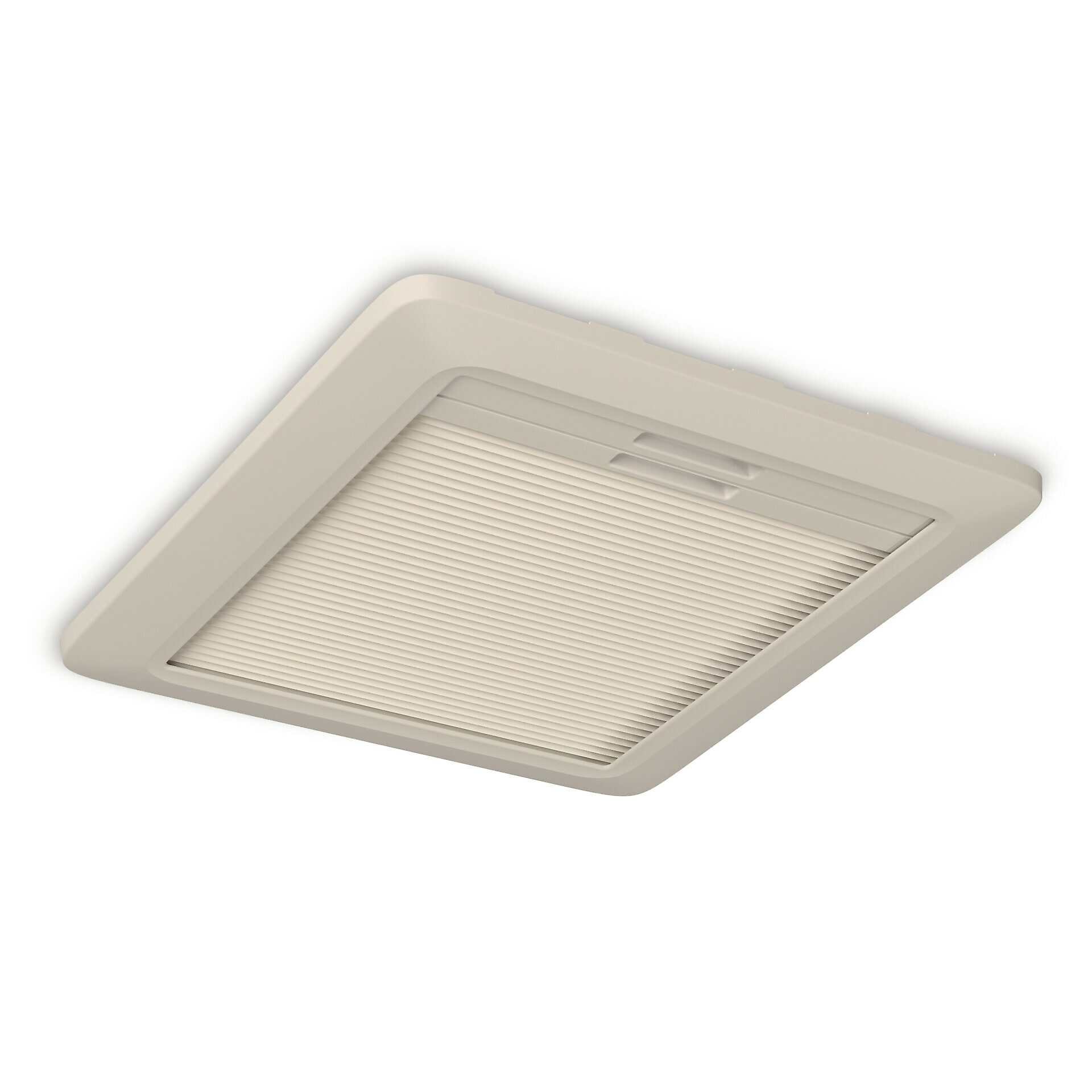

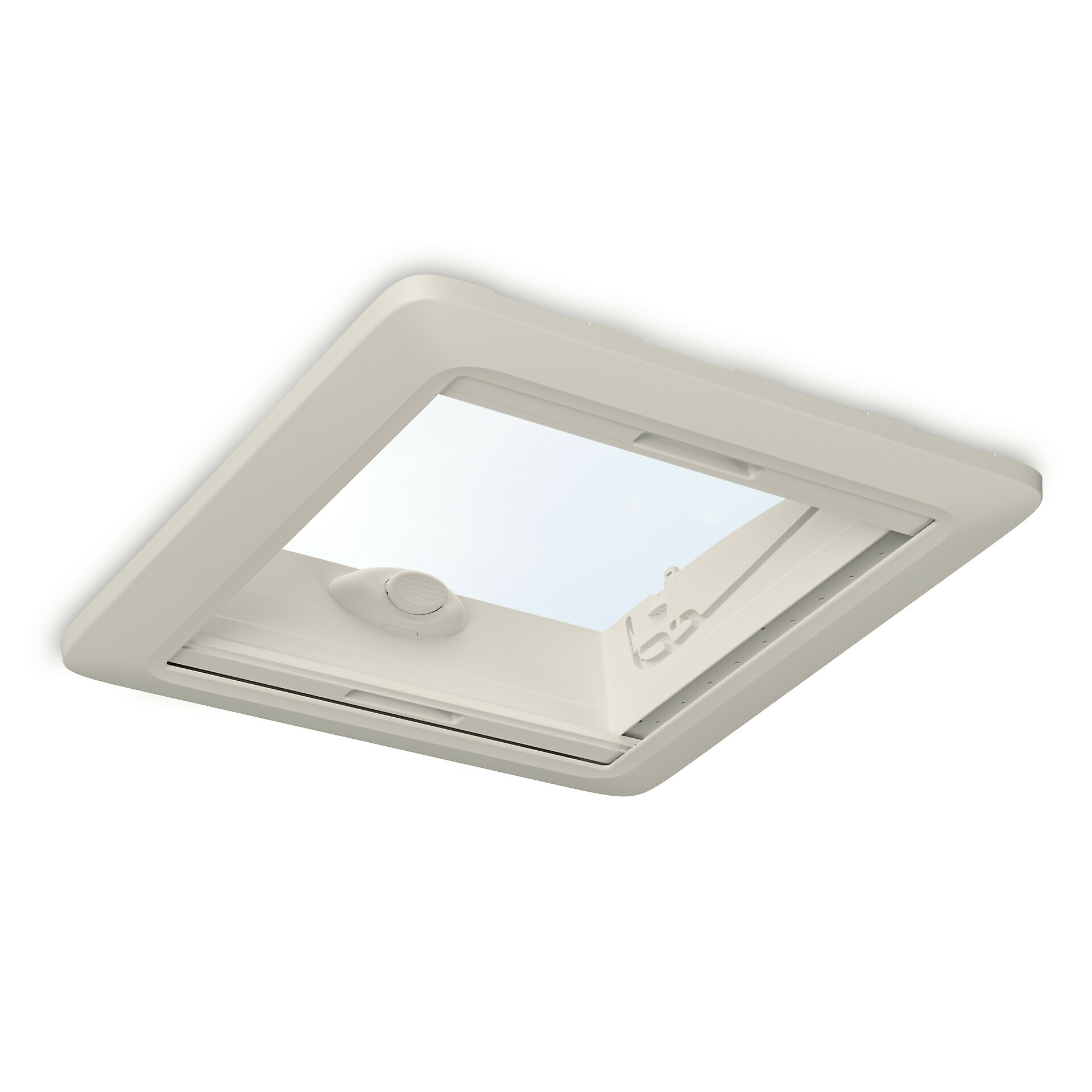

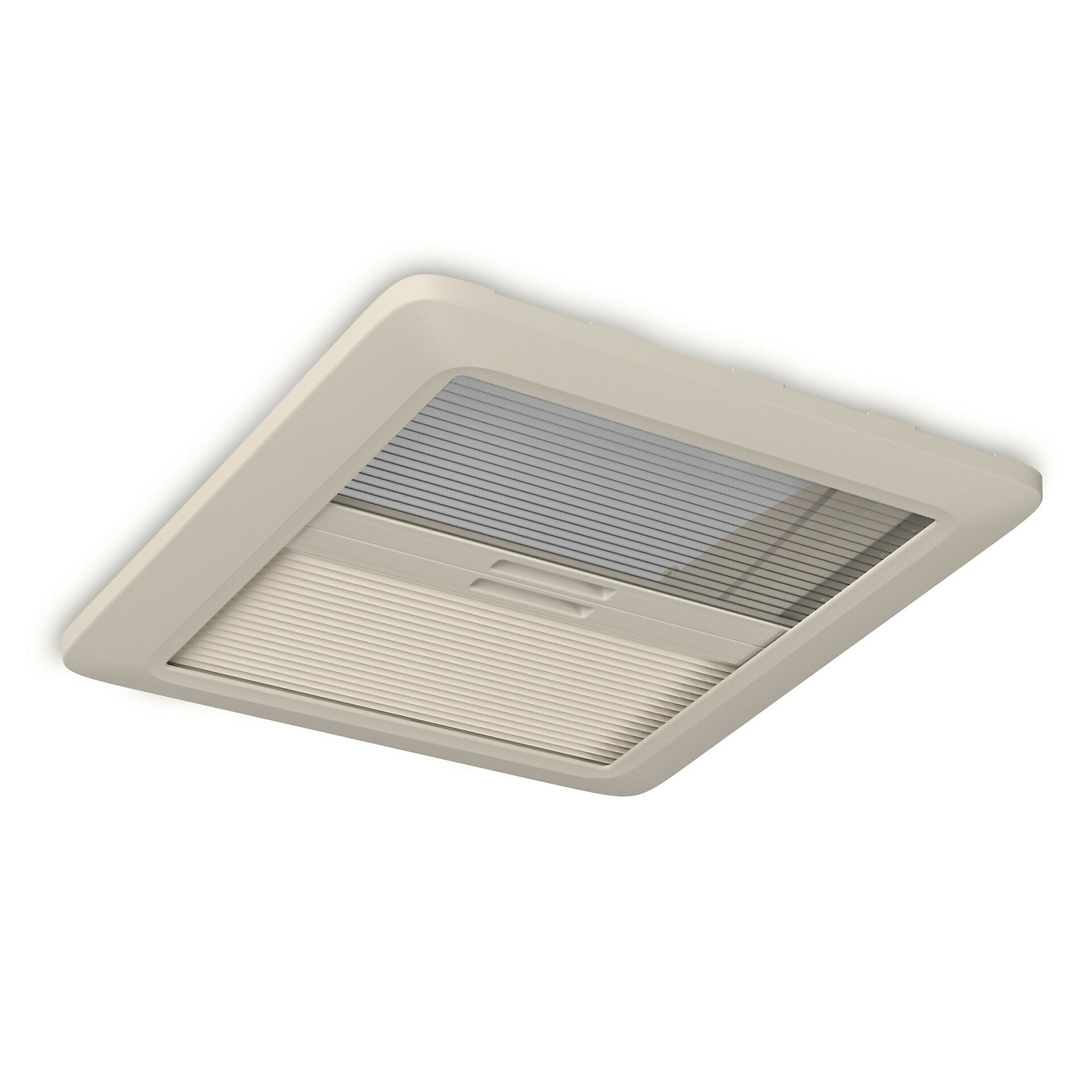

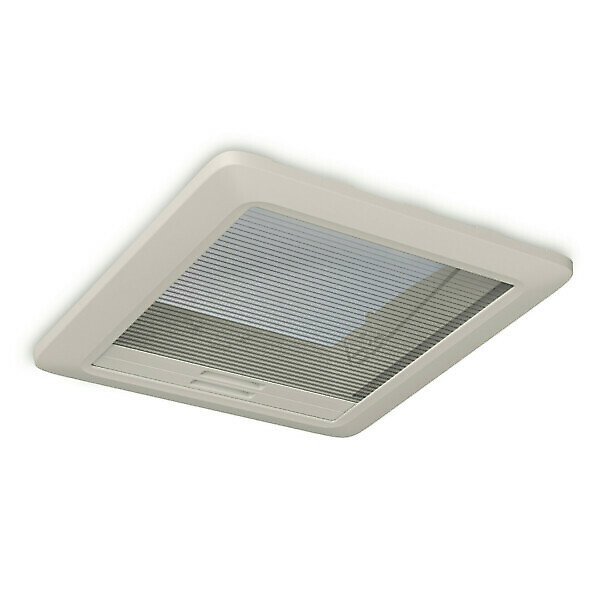

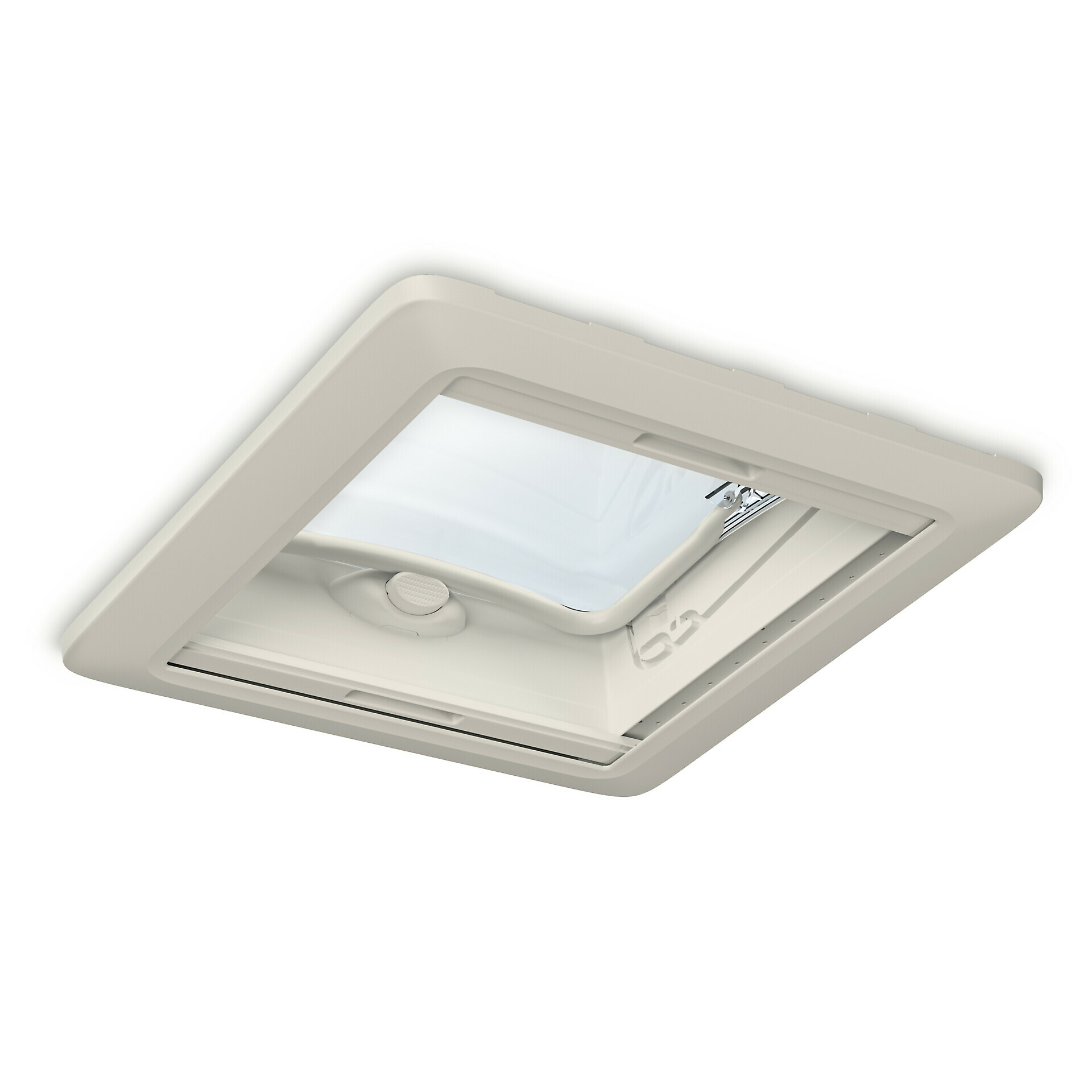

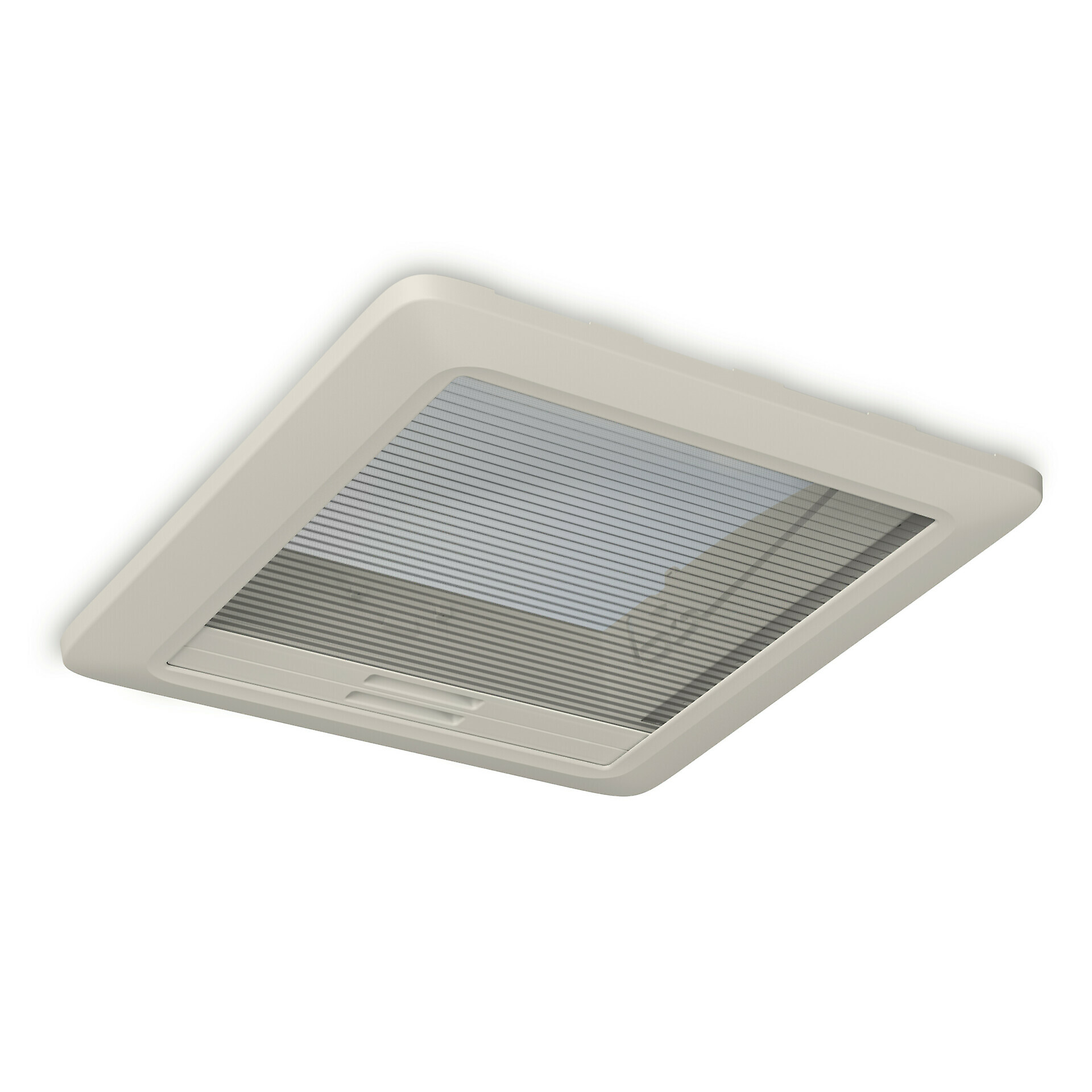

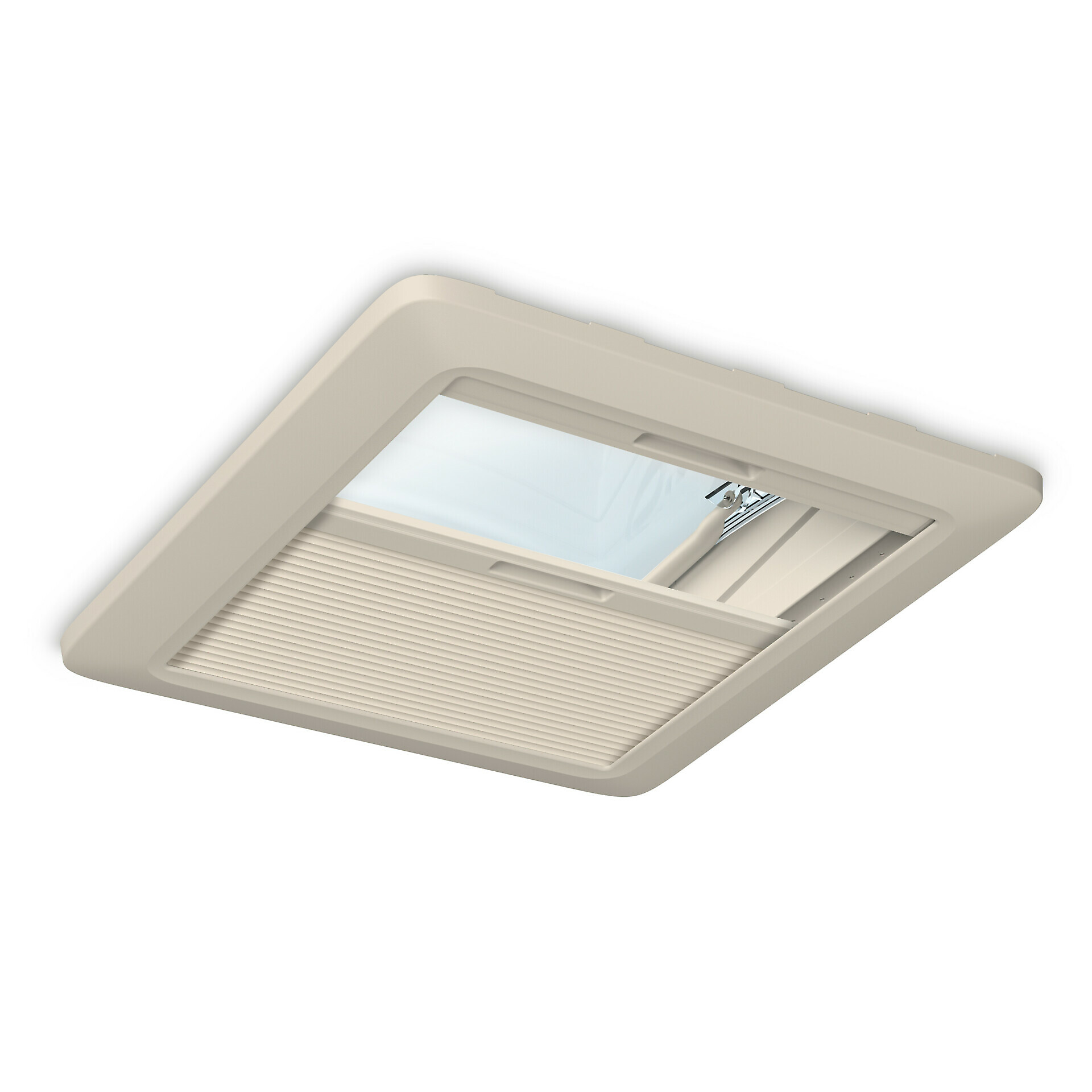

Elegant frame and interior, solid color fabric

Hand operated

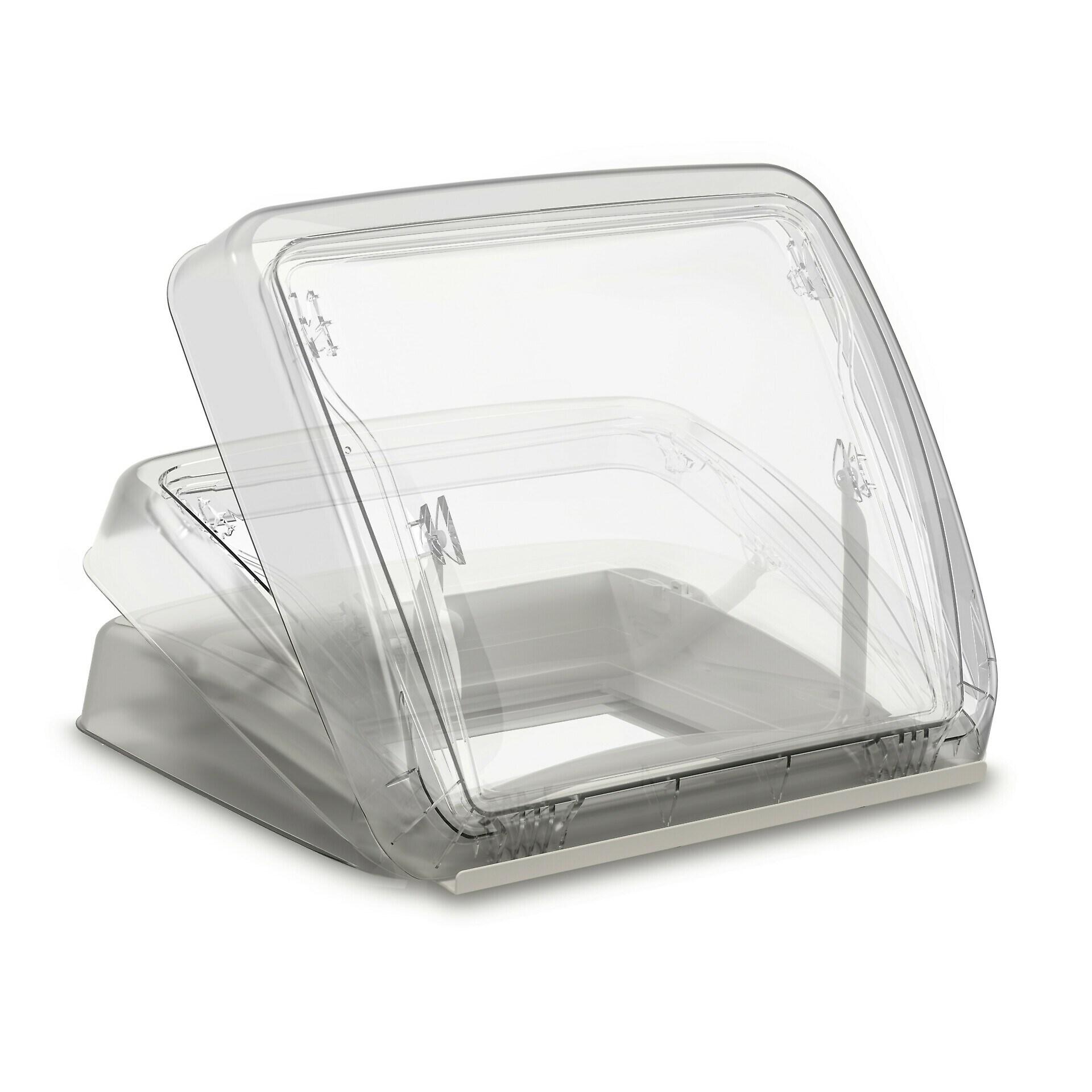

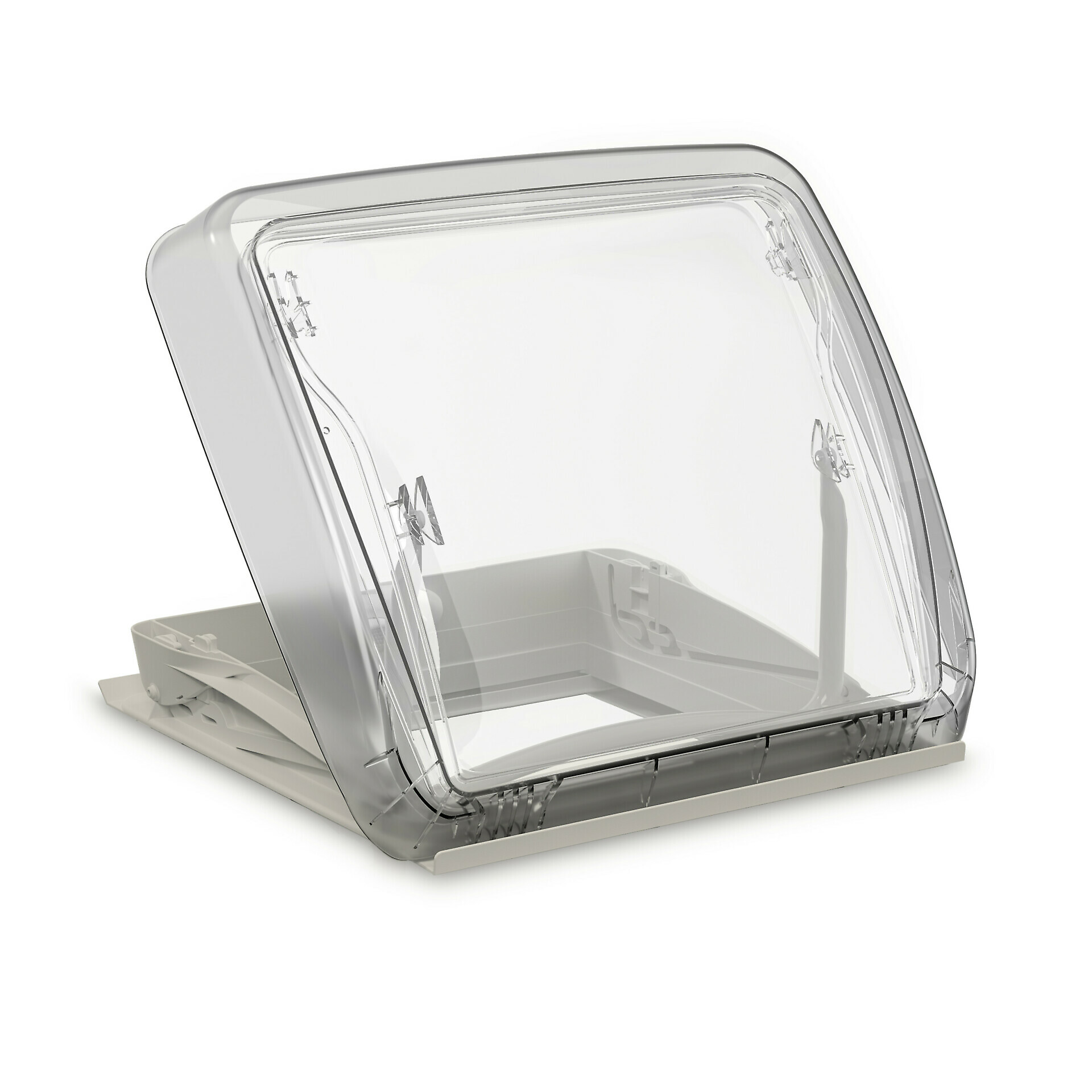

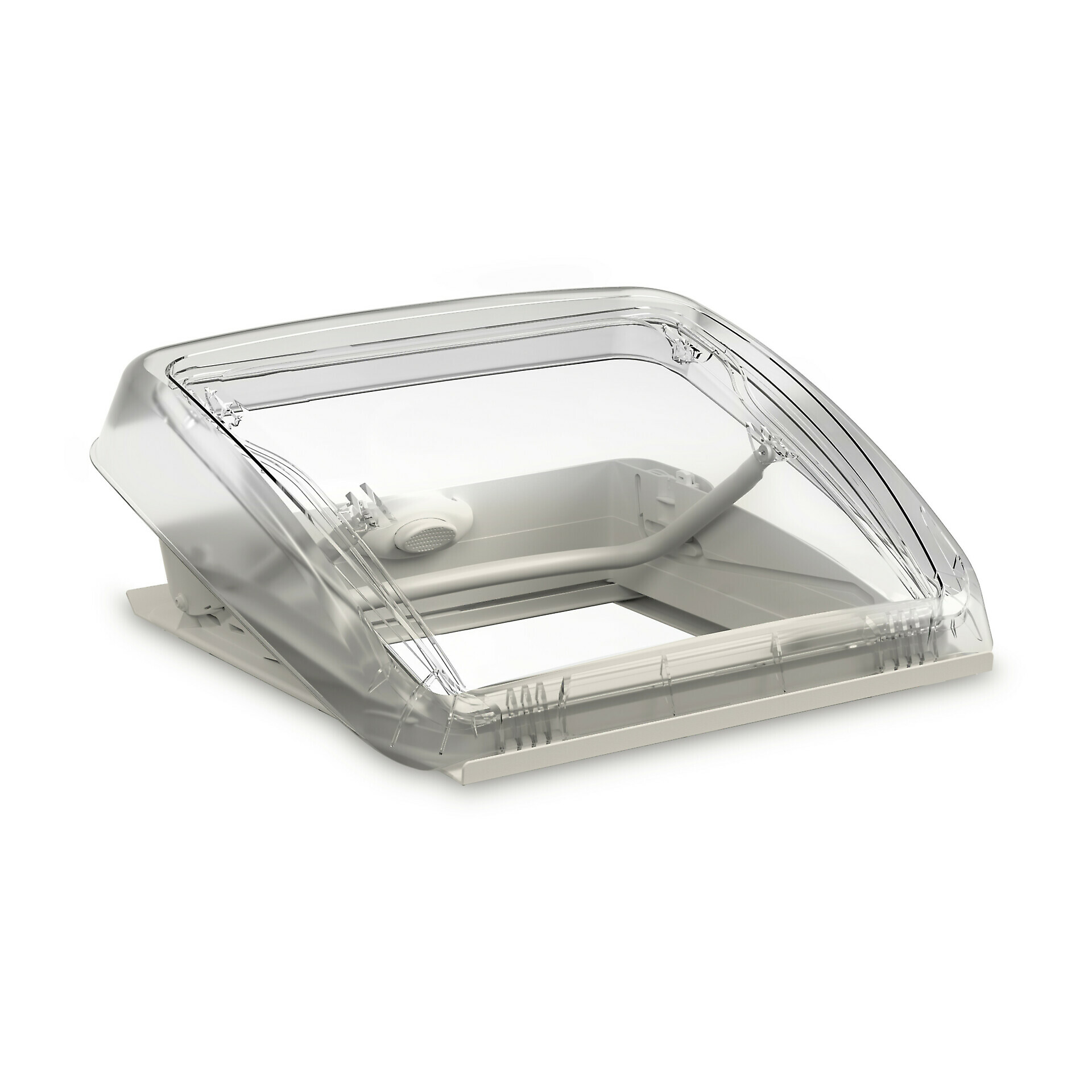

Easy transition from full opening to medium opening to storm position

Uninterrupted ventilation

Specifications:

• Product depth dimensions, [mm] 520
• Product width dimensions, [mm] 535
• Ordered width dimensions, [mm] 400
• Ordered height dimensions, [mm] 400
• Dimensions opening width, [mm] 384
• Dimensions opening height, [mm] 364
• Net weight, [kg] 3.30
• Min. thickness of standard mounting material 1, [mm] 25
• Max. thickness of standard assembly material 1, [mm] 42
• Possible minimum material thickness 1, [mm] 25
• Possible max. material thickness 1, [mm] 42
• Ventilation opening, [cm²] 70
• Opening height [mm] 400
• Opening width [mm] 400
• SKU code 9620008619
• Mini-Heki FL Art.1528
