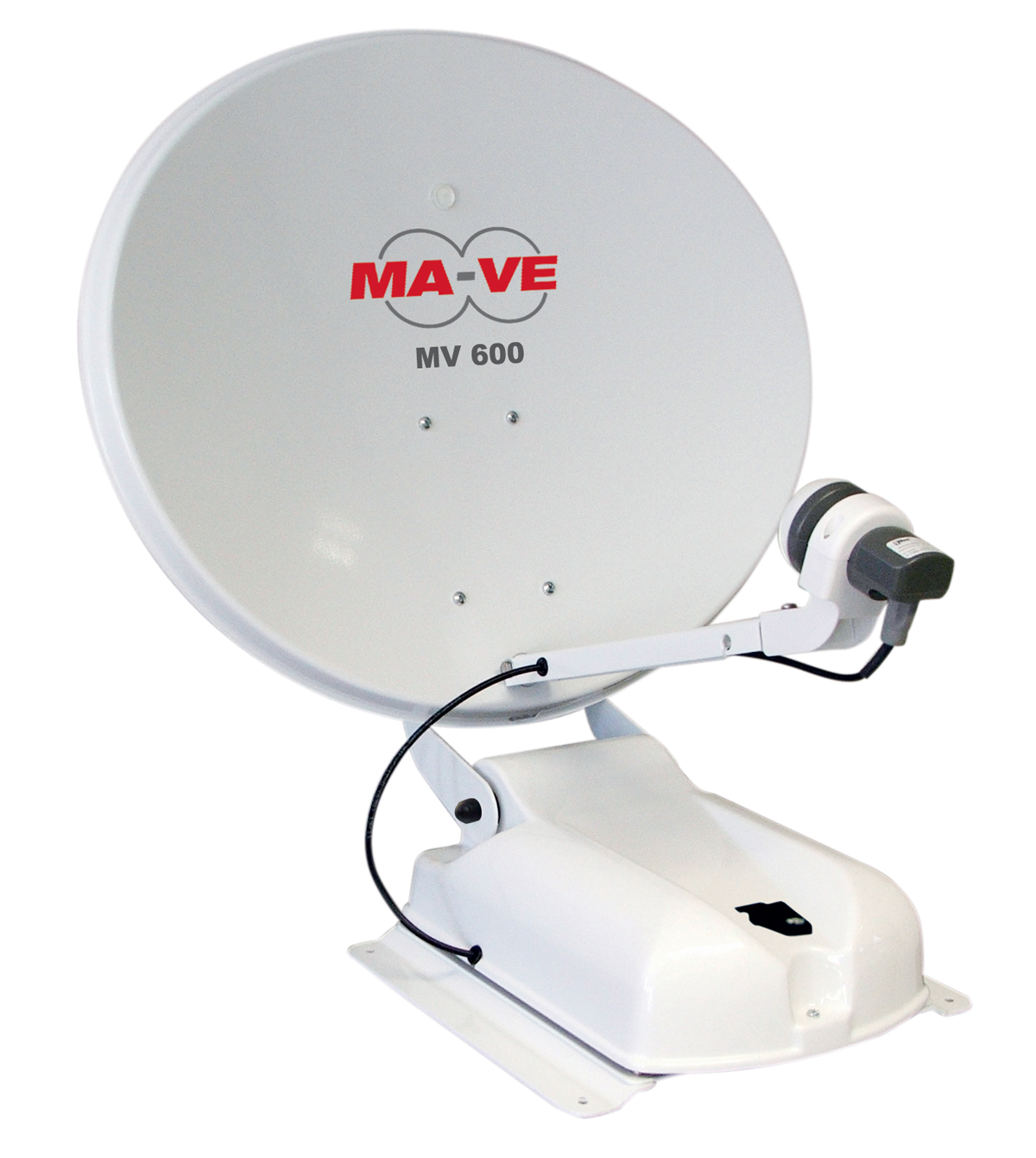

MAVE MV600DF DOUBLE EYE SATELLITE ANTENNA (ASTRA19 – HOTBIRD)

MA-VE MV600 2P DF Satellite Dish (Hotbird 13E – Astra 19) with Twin LNB

To connect 2 separate decoders

Compact, essential, but at the same time robust and reliable, it uses a fully automatic pointing system, with the best DVB-S2 technology.

The numerically controlled cast aluminum base mounts bronze gears and casehardened steel worm screws. The movements, of centesimal precision, are carried out in total silence thanks to the use of an automotive window motor operated by IP 68 microswitches with gold contacts. A casing designed by the wind, resistant to UV rays and bad weather, together with the anodized aluminum details, guard this mechanical heart, guaranteeing maximum durability over time without any maintenance, to give you great satisfaction during your holidays.

MV 600DF technical data sheet

Parable
offset type

Search system
fully automatic with NID recognition according to DVB-S EN 300 468 specifications with DVB S2 tuner

Settable satellites DF version
Hotbird 13 E – Astra 19 (Germany – Italy)

Diet
12V DC -20 + 30%

Current consumption
2 Amps max

Current absorbed in stand-by
≤ 5mA

Weight MV 600
≤ 8kg

Protection fuse
3A

Dimensions when closed MV 600 (LxBxH)
605mm x 610mm x190mm
