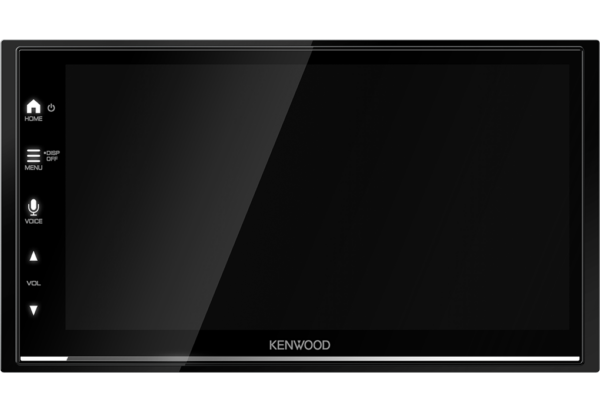

KENWOOD DMX7722DABS 2 DIN RADIOMONITOR

Multimedia digital AV receiver with 6.8″ WVGA display, improved wireless smartphone connections (WiFi and Bluetooth) and DAB+ digital radio.

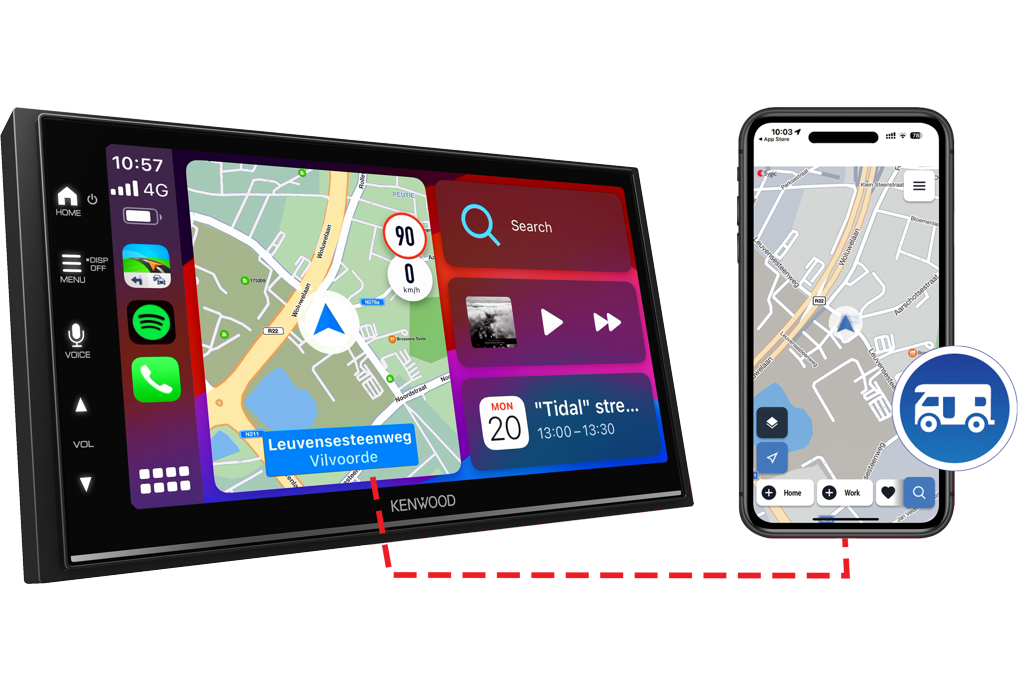

with a subscription to the Caravan Routing app.

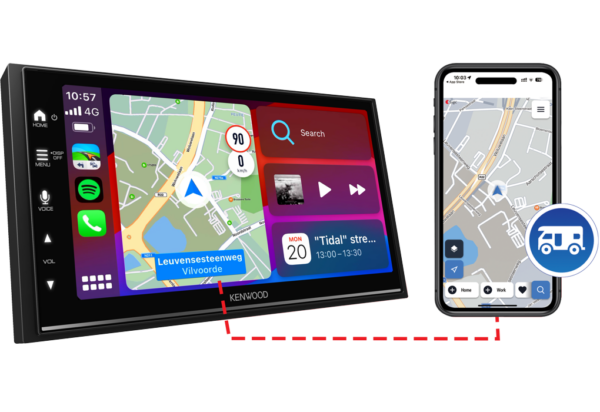

By connecting your smartphone and DMX7722DABS wirelessly, your driving time will be more fun and convenient: safe, smart and complete control with Apple CarPlay™ and Android Auto™ and USB mirroring allows you to display and control your Android smartphone on the KENWOOD receiver screen. Plus, enjoy optimal audio performance with 13-band graphic equalizer and time alignment and an optional rear view camera improves safety when backing up and monitoring behind your vehicle. Built-in and adjustable parking guidelines further increase its effectiveness.

Main Features:

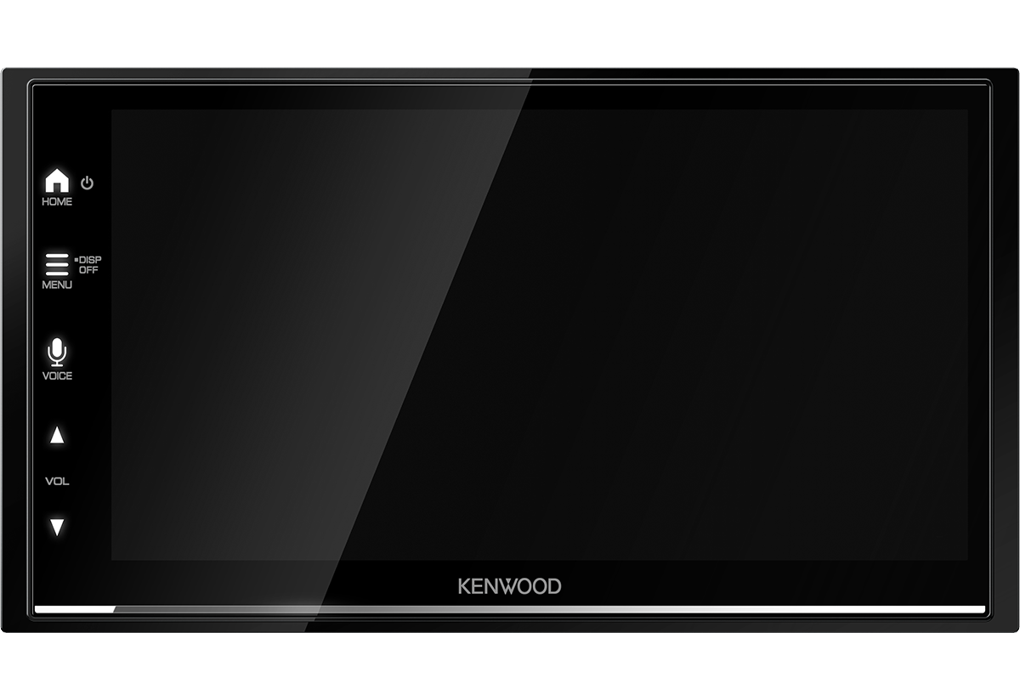

• 6.8″ WVGA capacitive touch panel with crisp, high-contrast images, vivid colors and wide viewing angles.
• Built-in Wi-Fi for convenient wireless connection with a compatible smartphone.
• DAB+ radio tuner for noise- and interference-free reception and crystal-clear digital stereo sound.
• Bluetooth(R) wireless technology for hands-free calling and music streaming. (Available functions depend on mobile phone)

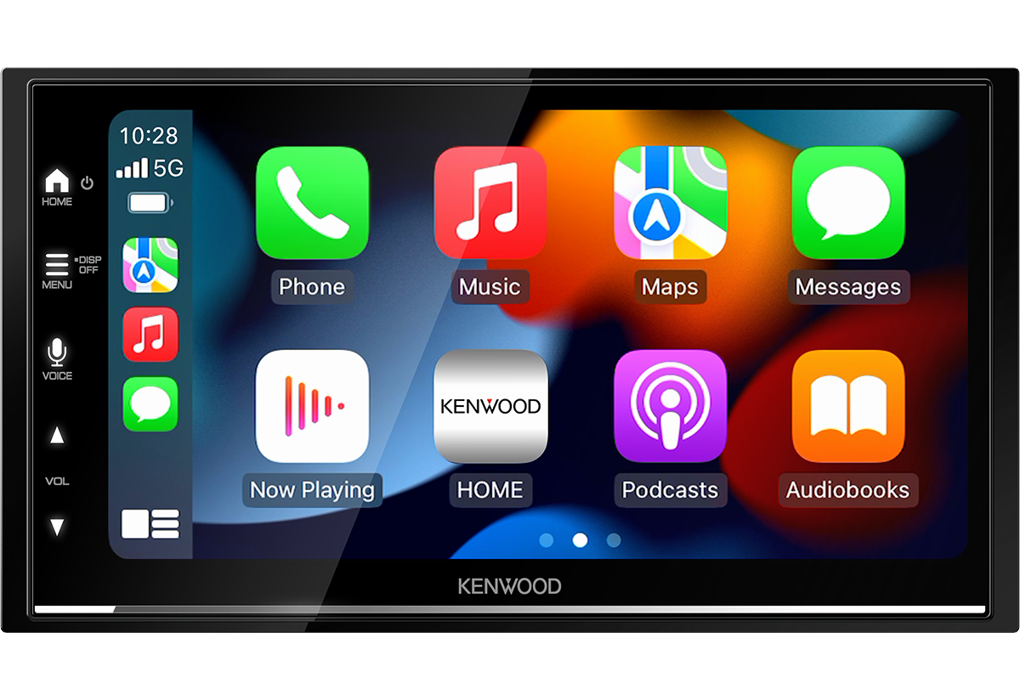

• Supports CarPlay in wireless (Wifi) and wired (USB) mode.

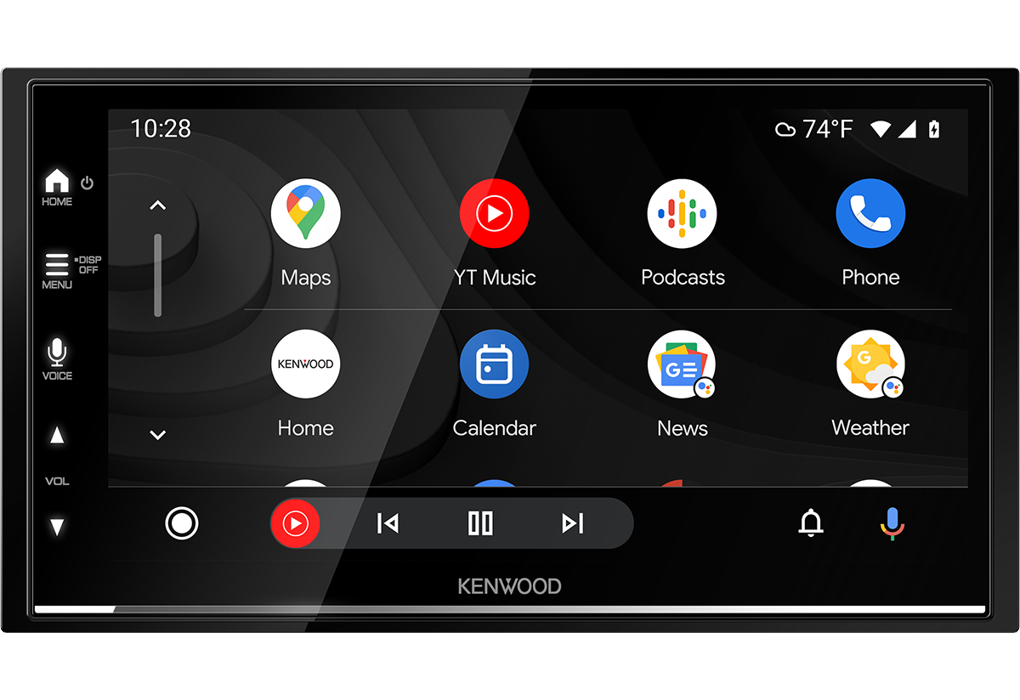

• Supports Android Auto in wireless (Wifi) and wired (USB) mode
• Support Android USB mirroring including 2-way touch control functionality
• Dedicated rear camera input with parking guidelines
• 3 high power RCA pre-outs (2.5V) (front/rear/sub)
• Digital audio processor, time alignment and 13-band equalizer for optimal sound tuning improvements
• Short body (75mm) for easy installation

General Features:

• DIN 2 DIN format

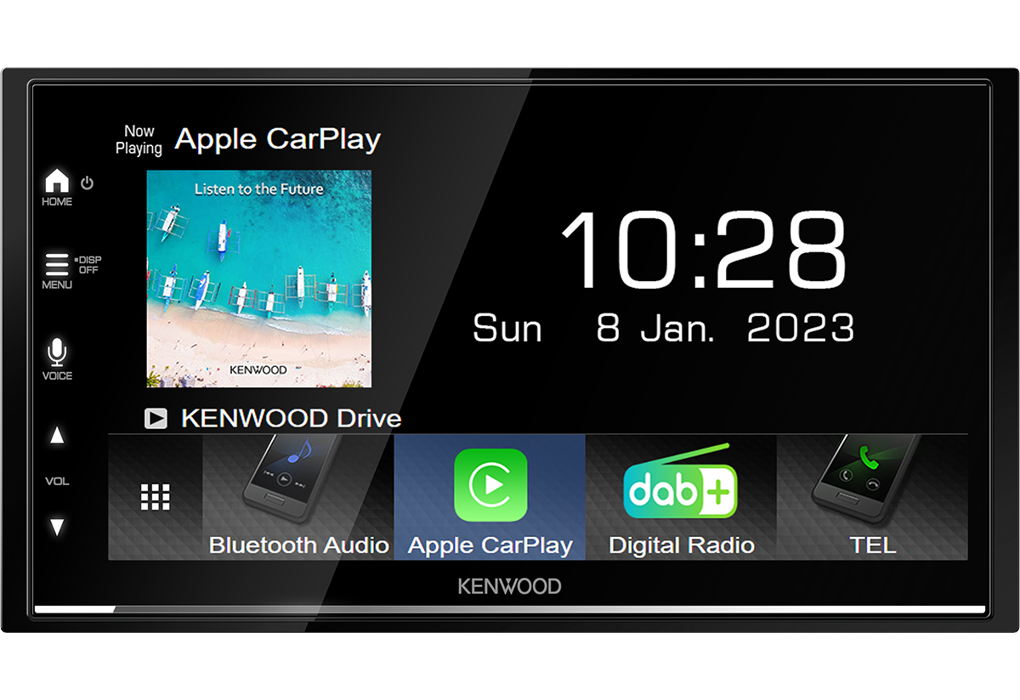

• Graphical User Interface Yes
• Selectable GUI background Yes
• Key illumination Variable color
• Touch sensor Yes
• Volume attenuator with gradual return Yes
• Touch sensitive tone Yes
• Remote control Yes, KNA-RCDV340
• Digital clock Yes
• Bluetooth Built-in Yes
• Built-in DAB tuner Yes
• Built-in Wi-Fi Yes
• Made for iPod Yes
• Compatible with Apple Car Play Yes
• Works Wireless with Apple CarPlay Yes
• Android Auto Ready Yes
• Works Wireless with Android Auto Yes
• Mirroring for Android via USB Yes
• Firmware upgradeable Yes

Monitor Features:

• LCD Type Wide VGA 6.8″
• Anti-glare display type
• Anti-fingerprint film display
• LCD Led backlight
• Capacitive Touch Panel
• Display Mode 3 modes (Full(default)/Auto/Normal)
• Screen Adjustment Noon/Night Mem/Brightness/Tint/Colour/Contrast
• Manual/Sync Auto Dimmer Sensor
• Dimmer Level Auto/On/Off
• CarPlay/Android Auto Video Source Mode.
• Viewing Angle Adjustment “0” (Default) / “-1” / “-2” / “-3”
• NTSC/PAL Selection Yes (Auto)
• Display Off Mode Yes

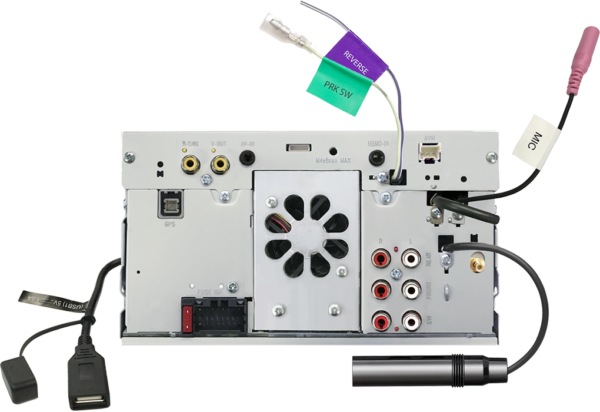

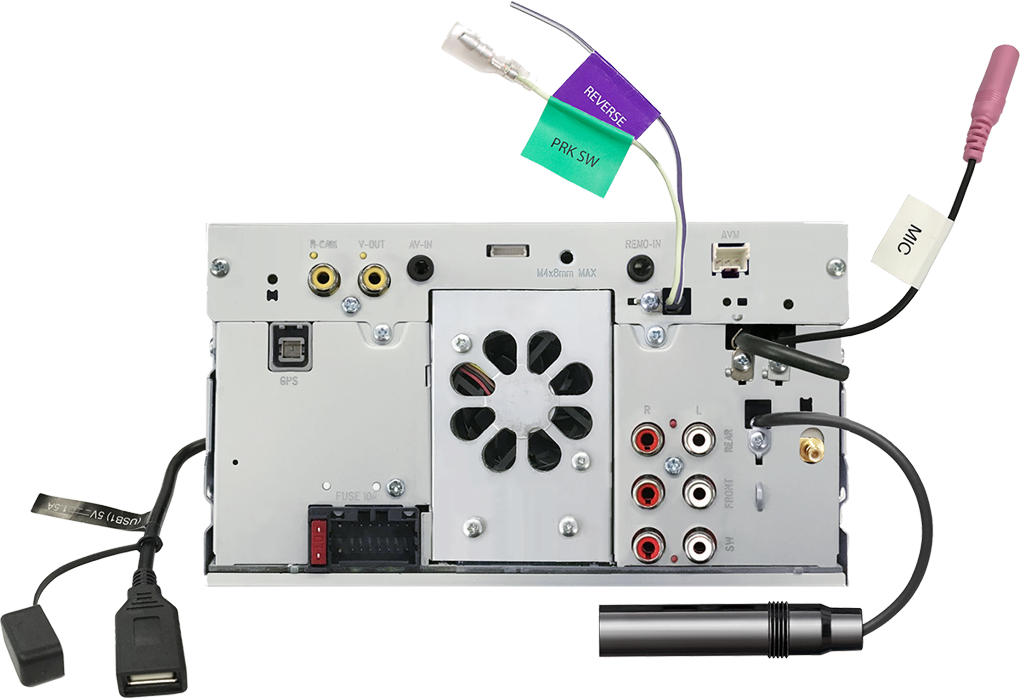

Connectivity:

• Rear USB 1 interface
• DC-Cord NEW Mitsumi to ISO
• Reversing sensor cable Yes
• Parking sensor cable Yes
• Power Control (P.CON) Yes
• Dimmer Yes
• Preout 3 x RCA (Front/rear/subwoofer)
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• AV-Input (Switchable AV-in / Camera) Yes
• Video Out RCA x1
• Camera inputs up to 2 camera’s
• Rear camera input Dedicated RCA video input
• Input for GPS antenna HRS GT5-1S connector
• FM antenna input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3.5mm mini-jack
• Steering wheel control provision* (*with optional interface) Yes
• Programmable steering wheel control compatibility Yes

Audio Specifications:

• Output power 50W x 4
• Rated power (DIN45324,+B=14.4v) 22 W x 4
• Output frequency band 20Hz ~ 88kHz
• Preout level 2.5mV / 10kOhm,
• Pre-output impedance 600Ohm
• Speaker impedance 4Ohm ~ 8Ohm

Accessories supplied:

• Extraction keys 2 pieces
• Frame Yes
• Mounting sled Yes
• DC cord (Mitsumi to ISO) 25 cm
• GPS antenna with 3.5cm cable
• GPS Antenna Mount (Adhesive Metal Pad) Yes
• Microphone with 3cm cable
• Multi-language instruction manual included Quick-Guide + Instruction manual
