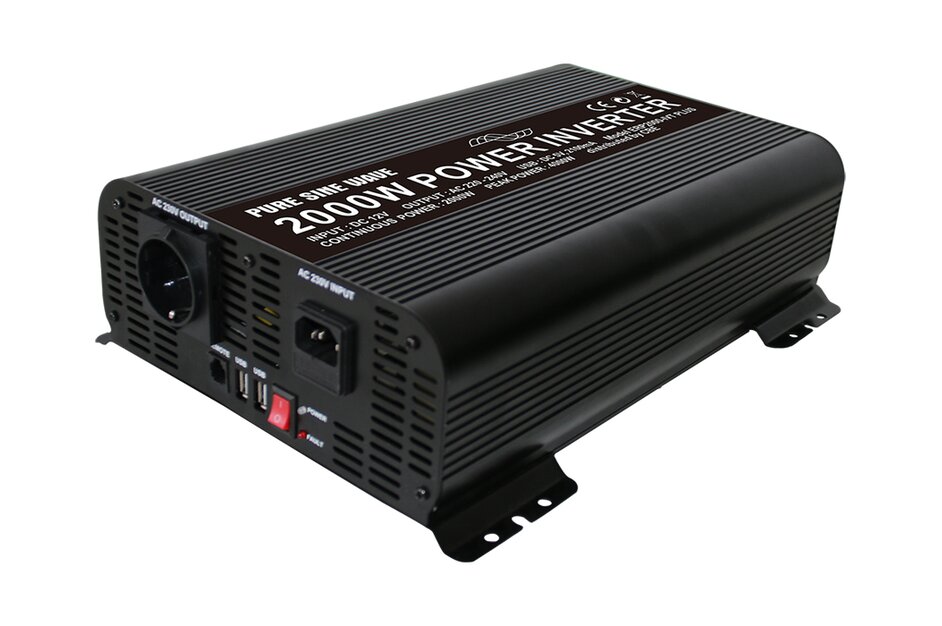

INVERTER ERP2000 PLUS 2000W 12/230V IVT

INVERTER 12V/230V WITH PURE SINE WAVE – ERP PLUS SERIES

The new “ERP” series inverters, with pure sine wave output, specifically designed for use on campers and cars, are characterised by high performance, construction quality, maximum safety and reliability.

Main features and functions :

• Pure sine wave output, to maximize the efficiency of powered devices and especially recommended for sensitive 230V appliances, such as audio and video equipment, laptops, satellite systems, appliances and household appliances with electric motors, etc.
• Complete with USB Type A port.
• Reduced size and weight thanks to HF technology.
• High quality and sturdy construction with aluminum alloy casing.
• Electrical isolation between 12Vdc input and 230Vac output.
• “Smart” cooling fan controlled according to temperature load.
• Protection against overload, short circuit, over temperature, high/low voltage, reverse polarity.
• Provision for connection of remote control panel.

INVERTER ERP2000-IVT-Plus 215485

Technical data:

• Output voltage without load 230V AC±10V
• Output voltage at load 210÷240V AC
• frequency 50 Hz
• starting power 4000W
• continuous power 2000W
• pure sine wave output (THD < 3%)
• Short circuit protection YES
• overload protection 2050÷2250W

Technical input data

• Operating voltage range 11÷15V DC
• no-load current consumption ≤ 1.6A
• Low input voltage alarm 10.5V DC
• Low input voltage shutdown 9.5V DC
• 16VDC input overvoltage shutdown
• DC input reverse polarity YES (fuse)

“NETWORK MODE” input technical data

• Operating voltage range 230V AC±10%
• frequency 50 HZ
• Input protection Fuse 15A
• AC switch (inverter/grid mode) ≤ 100 ms

General technical data

• efficiency ≥ 85%
• Forced ventilation, automatic variable regulation
• ambient temperature -15÷+25 °C; 60 °C at 40% load
• Over-temperature protection YES
• 230V connection 1x Schuko sockets
• Battery connection Terminals
• USB output 2x USB type A
• MCI3 remote switch (optional)
• dimensions (mm) 385 x 250 x 100H
• weight 4.9 kg
• Integrated IVT function YES
