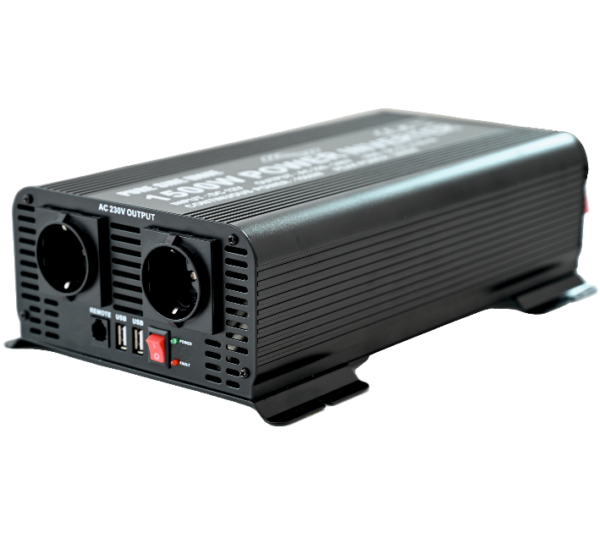

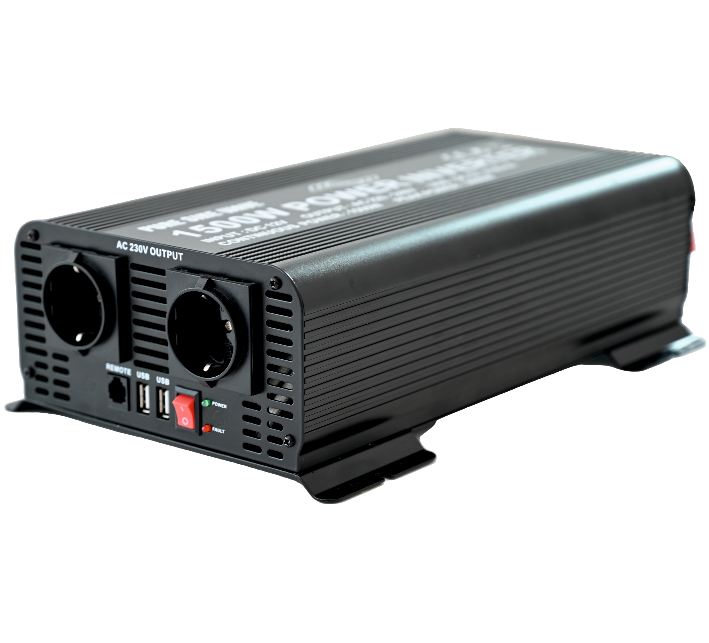

INVERTER ERP1500 1500W 12/230V PURE WAVE

12V/230V INVERTER WITH PURE SINE WAVE – ERP SERIES

The new “ERP” series inverters, with pure sine wave output, specifically designed for use on campers and cars, are characterized by high performance, construction quality, maximum safety and reliability.

Main features and functions :

• Pure sine wave output, to maximize the efficiency of powered devices and especially recommended for sensitive 230V consumers, such as audio and video equipment, laptops, satellite systems, appliances and appliances equipped with an electric motor, etc.
• 3 models with power from 300 to 1500W.
• Complete with USB type A port.
• Reduced size and weight thanks to HF technology.
• High quality and robust construction with aluminum alloy casing.
• Electrical insulation between 12Vdc input and 230Vac output.
• “Smart” cooling fan controlled according to temperature load.
• Protection against overload, short circuit, over temperature, high/low voltage, reverse polarity.
• Predisposition for connection of the remote control panel.

ERP1500

OUTPUT TECHNICAL DATA:

• VOLTAGE WITHOUT LOAD: 230Vac± 10V
• LOAD VOLTAGE: 210÷240Vac
• FREQUENCY: 50HZ
• STARTING POWER: 3000W
• CONTINUOUS POWER: 1500W
• OUTPUT WAVEFORM: Pure sinusoidal (THD < 5%)
• SHORT CIRCUIT PROTECTION: YES
• OVERLOAD PROTECTION: 1550÷1800W

INPUT TECHNICAL DATA

• WORKING VOLTAGE: 11÷15Vdc
• NO LOAD ABSORPTION: ≤ 1.3A
• LOW VOLTAGE ALARM: 10.5Vdc
• LOW VOLTAGE PROTECTION: 9.5Vdc
• HIGH VOLTAGE PROTECTION: 16Vdc
• POLARITY REVERSAL: YES (fuse)

GENERAL TECHNICAL DATA

• YIELD: ≥ 85%
• VENTILATION: Forced, adjustable. automatic variable
• WORKING TEMPERATURE: -15° ÷ +25°C; 60°C at 40% load
• OVERTEMPERATURE PROTECTION: YES
• 230V CONNECTION: Schuko socket
• CONNECTION TO THE BATTERY: Terminals
• USB OUTPUT: 2x USB type A
• REMOTE PANEL: MCI3 (optional)
• DIMENSION (mm): 375 x 210 x 100H
• WEIGHT: 3.9Kg
