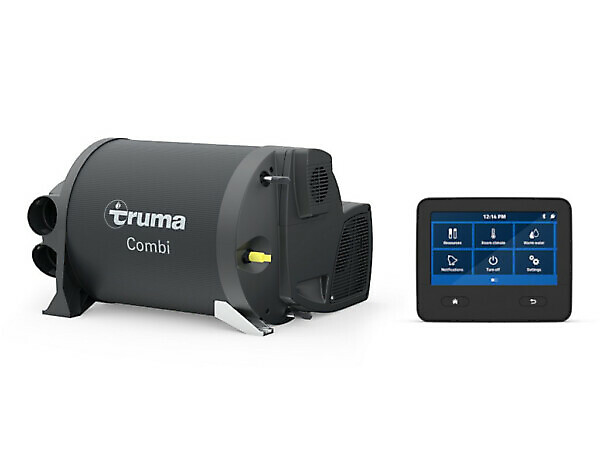

COMBI 6 INET X PANEL STOVE

Combi 6

Heating and hot water for large vehicles
The Combi 6 combines two functions in one appliance: heating and hot water. The particularly light and compact Combi heater ensures pleasant temperatures in large campers and caravans. It contains a 10-litre stainless steel water tank, which is also heated in winter. In summer, it can also be used to heat just the water.

• The water heats up more evenly and quickly thanks to the asymmetrical shape of the stainless steel tank.
• Four air outlets for optimal distribution of hot air
• The lightweight and compact design of the Combi 6 allows for flexible installation
• Low energy consumption

Technical details

• Fuel Type: Propane / Butane
• Operating pressure: 30 mbar
• Nominal heat output in gas operation: 2000 W / 4000 W / 6000 W
• Fuel consumption: 160 – 460 g/h
• Current consumption (at 12 V): heating and water tank operation: short-term max. 6.5 A (average approx. 1.4 A)
• Capacity: 10 litres
• Heating time (from approx. 15 °C to approx. 60 °C): Water tank: approx. 23 min.
• Heating time (from approx. 15 °C to approx. 60 °C): heating and water tank according to EN 15033: approx. 80 min.
• Weight: approx. 14.4 kg
• Dimensions (L x W x H): 510 x 450 x 300 mm
• Current consumption (at 12 V): Water tank heating: 540 x 500 x 350 mm
• Air flow rate (free exhaust) with 4 hot air outlets: max. 287 m3/h
• Quiescent current: about 1mA
• Quiescent current consumption CP plus (optional): 3 mA
• Electrical resistance for FrostControl (optional): max. 0.4 A
• System pressure: max. 4.5 bar

More details about Combi 6

The Combi 6 combines two functions in one appliance: heating and hot water. The particularly light and compact Combi heater ensures pleasant temperatures in large motorhomes and caravans. It contains a 10-litre stainless steel water tank, which is also heated in winter. In summer, you can also heat just the water. It takes around 20 minutes to heat the water to 60°, ideal for a shower after a strenuous mountain bike tour.

The Combi 6 can be installed in different vehicles with great flexibility. Four outlets silently distribute the warm air evenly throughout the vehicle, creating a perfect climate in the room. Since the Combi heater can be positioned, for example, under the bench seat, the passage to the interior is not obstructed.

The FrostControl drain valve is already mounted
Easy to use thanks to the INETX digital control unit
Automatic air conditioning available in combination with a Truma air conditioner
