CARRY BIKE VW T5

Restyling Carry-Bike Minivan VW

Specific bike racks for VW T5, T6 and T6.1
Its shape allows the lower part of the tailgate to be left free.

Characteristics

• From 2 to 4 bikes / 2 E-bikes
• It is possible to open the rear door with the Carry-Bike mounted without bicycles
• The T6 Pro versions are compatible with T6.1
• All models allow the tailgate to be opened with the bike rack mounted, without bicycles
• Telescopic shelf in AISI 304 stainless steel and 6060 aluminium for models that carry up to 4 bikes
• 6060 aluminum shelf for models carrying 2 / 3 bikes
• Deep Black version for VW T5 / T6 D

[1] Telescopic shelf: to carry up to 4 bikes
[2] Easy Position: allows you to mount the channels at an offset angle
[3] Bull Shock Absorber: to absorb shocks and vibrations
[4] Bike-Block Pro / Pro S: bike locking system
[5] Rack Holder: Safety shelf lock
[6] Premium Rail Channels: Channel with support without adjustment handwheel
[7] Upper brackets: shaped to optimally follow the line of the vehicle
[8] Quick Lock: quick and safe locking of the wheel to the channel

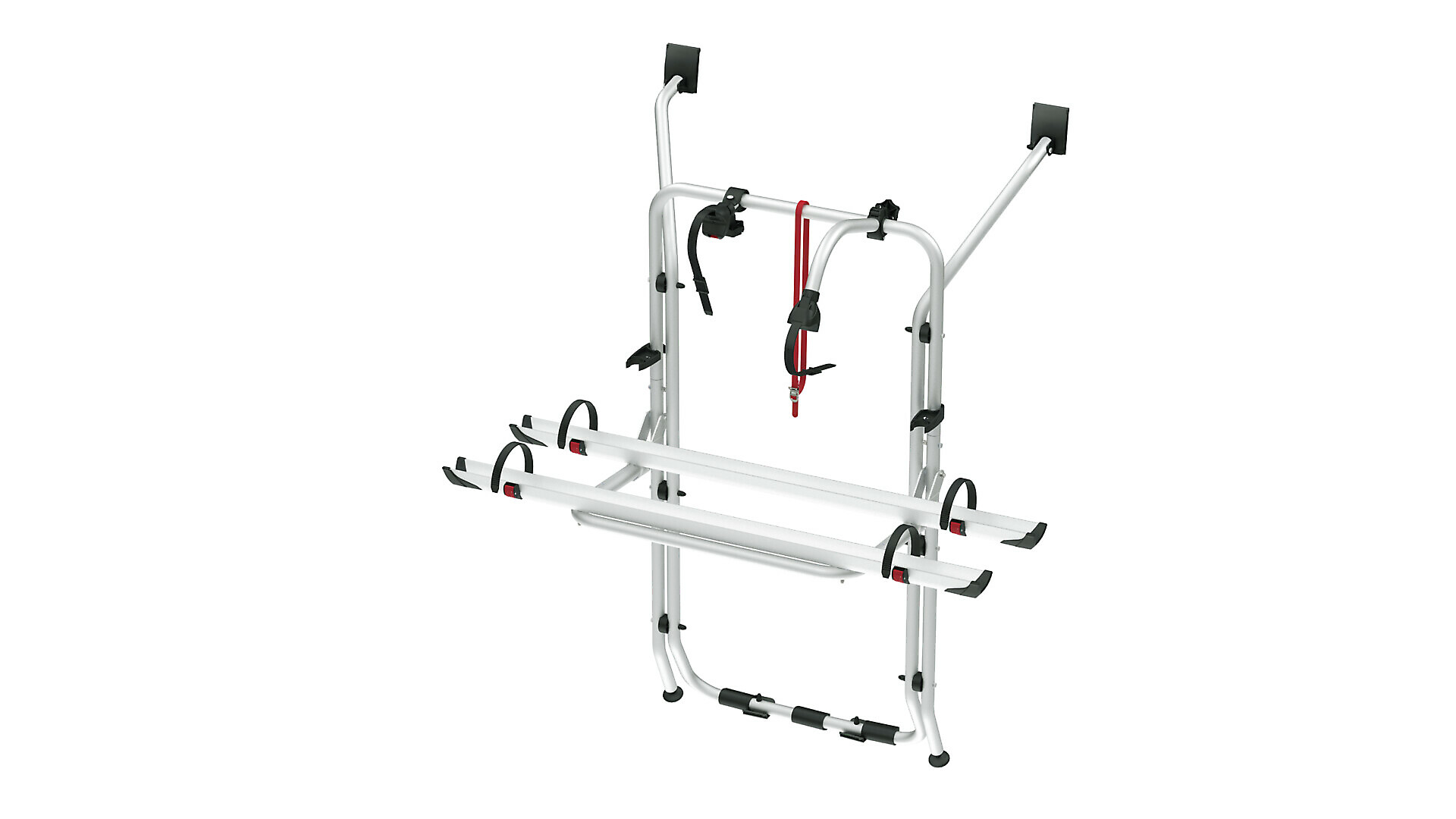

VW T5

02096-17

Bike rack designed for Volkswagen T5 with single tailgate.
Also suitable for models with raised roofs.

Suitable for:

• VW Transporter T5 / VW T5 Caravelle / VW T5 Multivan / VW T5 California ( ≥2003 ≤2014)

Technical Data:

Vehicle type: Volkswagen minivan

Weight / Max load: 9.1 / 60 kg

Standard / max bike load: 2/4
