CARBEST SC200 FOLDING SOLAR PANEL

411,00 €

  • Available
  • Delivery in 3-5 working days
SKU: RMO82509 Category: Manufacturer: CARBEST

Ask info

Share

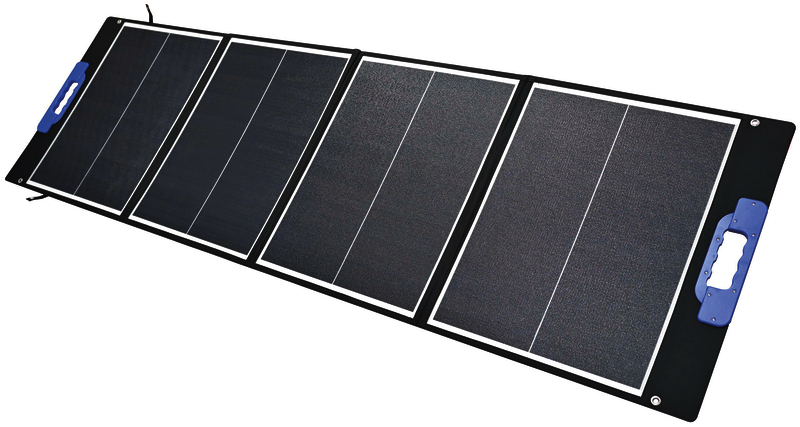

Carbest Folding Solar Panel SC200 – 200W

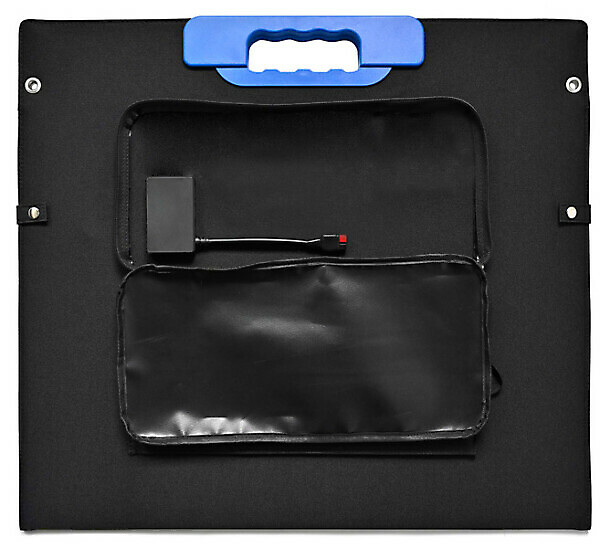

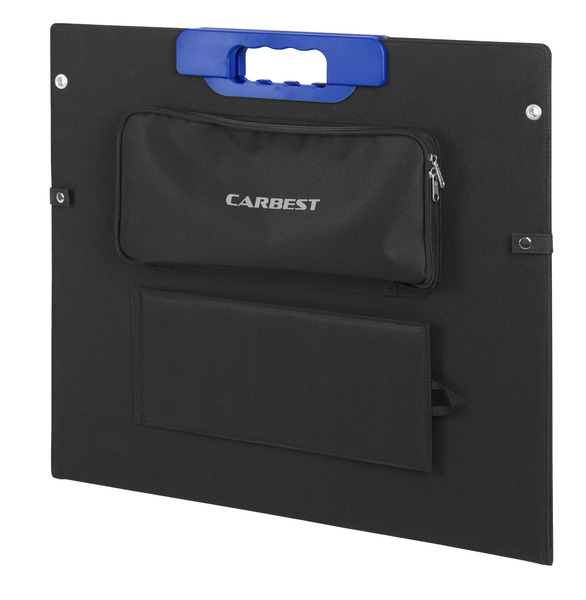

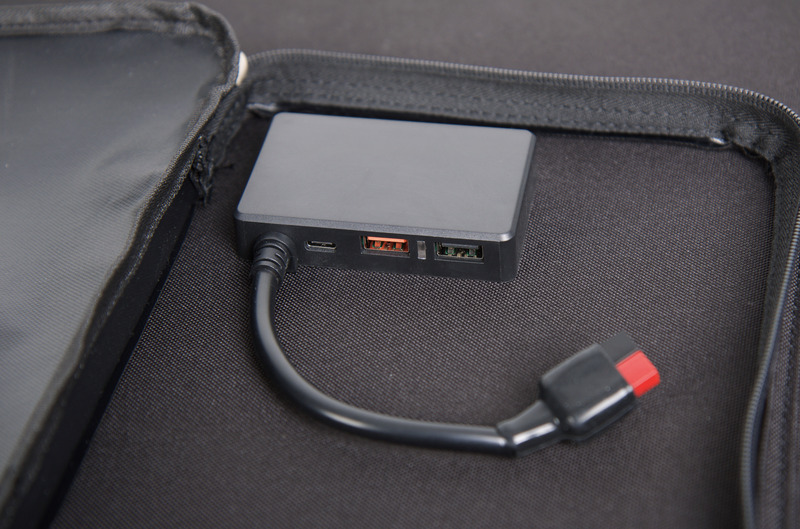

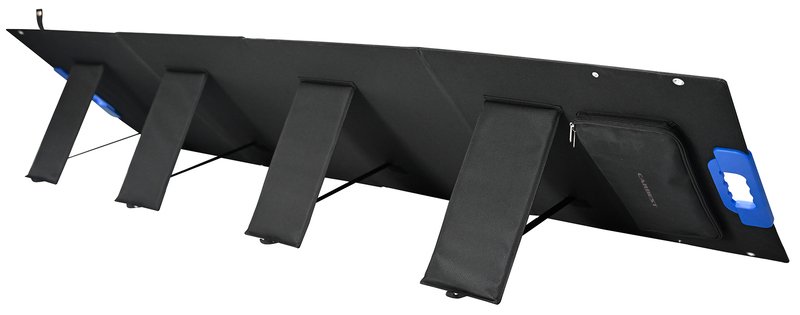

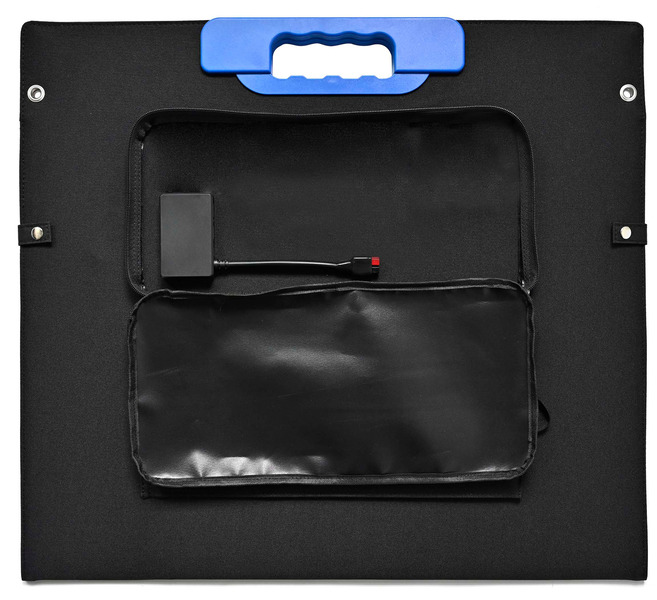

PERC tile solar cells (monocrystalline) for higher yield on the same surface area and lower loss in partial shading. ETFE surface: Very robust and with high light transmission. Suitable for standing or hanging. Sewn-in bag with integrated connection cable and 3 USB outputs:
  • 1x USB-A (5V / 3A max.)
  • 1x USB-QC 3.0 (5V/3A, 9V/2A, 12C/1.5A max.)
  • 1x USB-C PD 3.0 (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A max.)

Including 2 cables for connection to mobile power systems*:

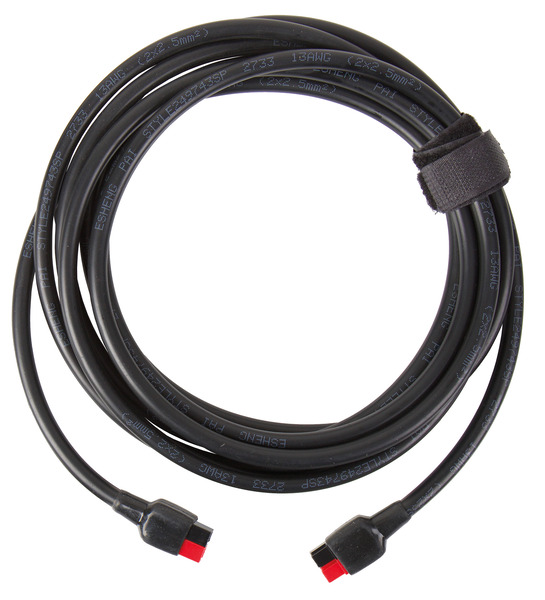

  • 1x 5m extension cable (2x 4mm²) with Mini Anderson plug on both sides

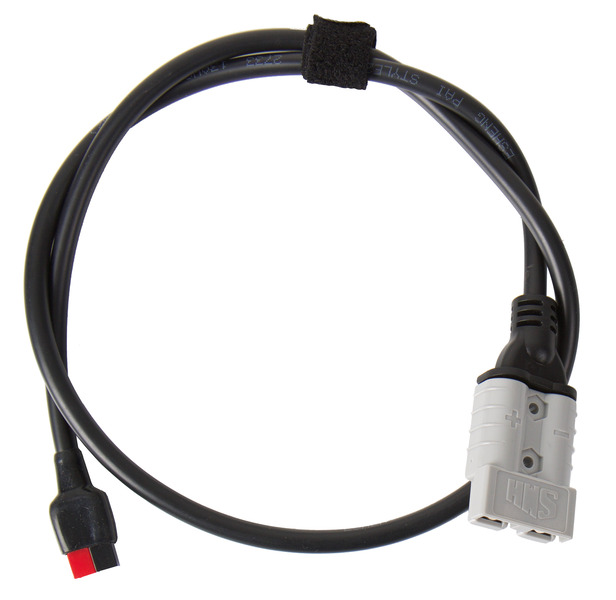

  • 1x 1m adapter cable (2x 4mm²) with Mini Anderson / Anderson 50A plug

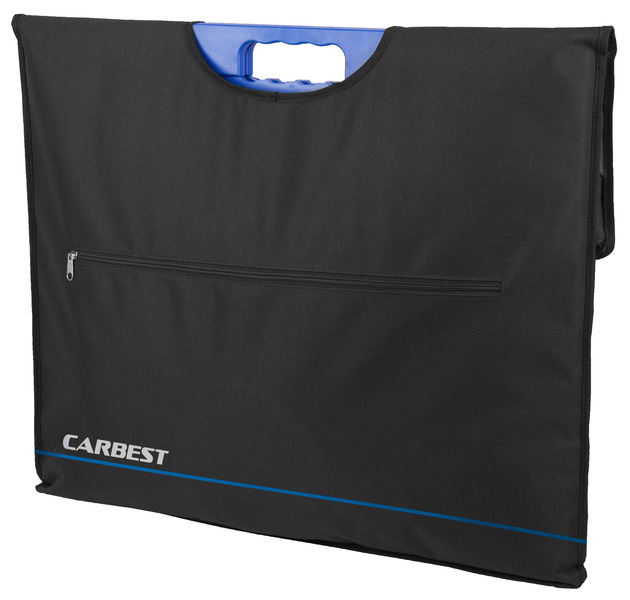

  • Additional protective bag with attached pocket for storing connection cables.

Technical specifications:

  • Power in watts: 200W
  • Number of modules: 4
  • Depth: 2040 mm
  • Width: 615 mm
  • Height: 16 mm
  • Closed length: 55.5 cm
  • Closed width: 61.5 cm
  • Closed height: 3.2 cm
  • Cable length: 1m
  • Efficiency: 22%
  • Nominal voltage (Vmp): 19.4 V
  • Rated Current (Imp): 10.31 A
  • Short circuit current (Isc): 10.93 A
  • Open circuit voltage (Voc): 22.9 V
  • Weight in kilograms: 7.3 kg
  • Color: black

Other specifications:

  • Power tolerance: +/- 3%
  • Cell type: Monocrystalline cells
  • Max. System Voltage (V): 100 VDC

*Prerequisite: Solar regulator already pre-installed in the device. When connecting to the car battery or to a power system without integrated solar regulator, a separate solar regulator and a fuse must be connected.
