CARAVAN MOVER SMART M. HANDLER

Manually operable manoeuvring aid for single axle caravans

Approach and retraction by lever on one side, without having to turn

• Smooth start, precise stop
• Thanks to the practical remote control, maneuvering is child’s play
• Easy to mount on all common frame frames
• With general approval, no TÜV registration is required

M for manual: Mover smart M

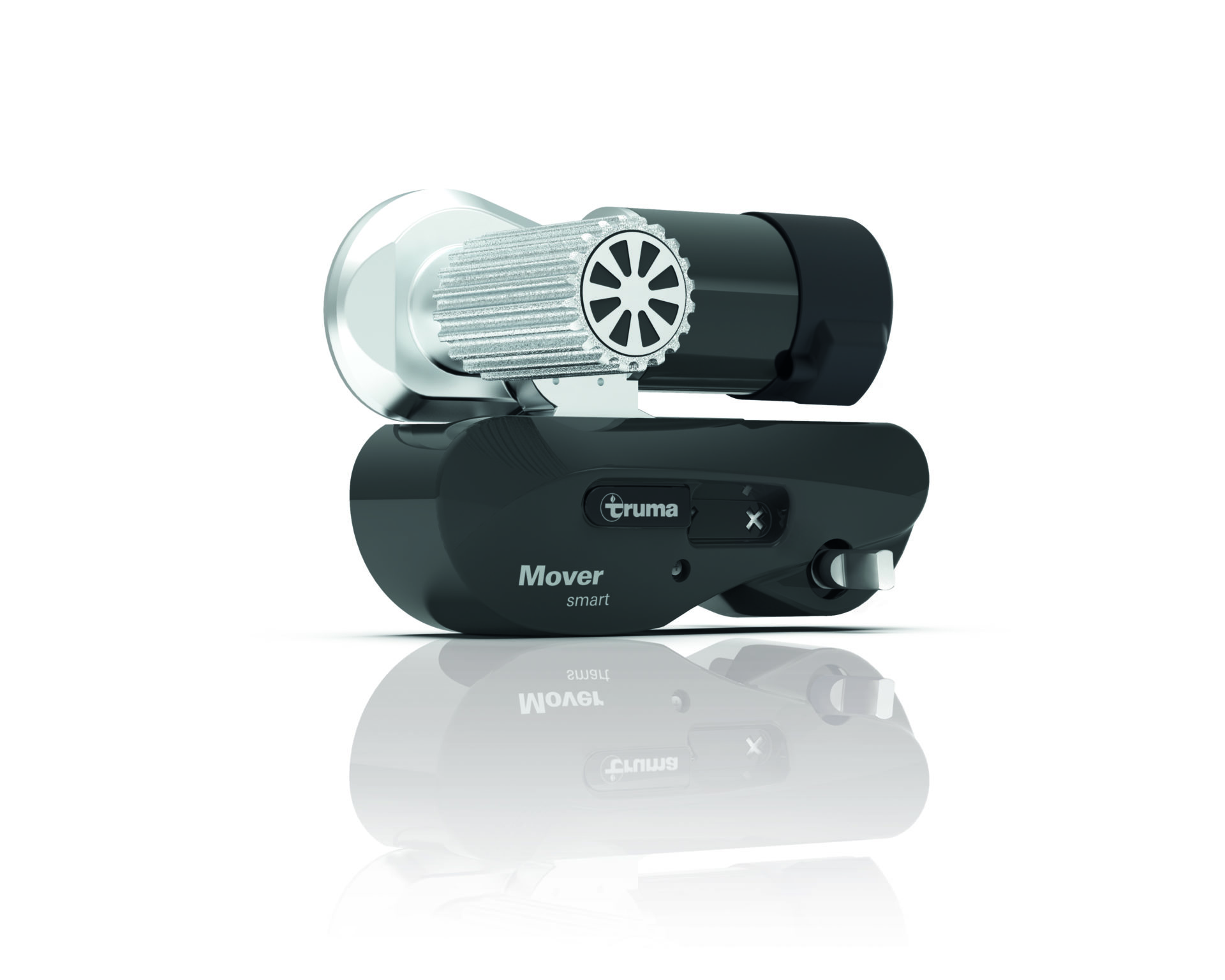

Truma Mover smart M is the semi-automatic entry-level model among Truma manoeuvring aids. It boasts an unbeatable price/performance ratio with the highest Truma quality. Manually move the drive rollers to the tyres with a simple movement of a lever and you are ready to go!

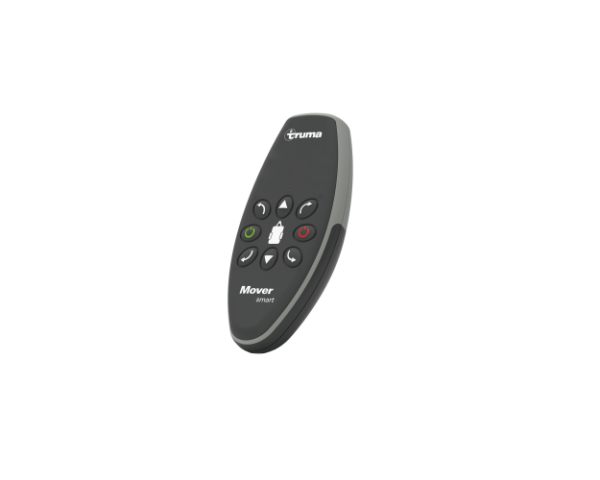

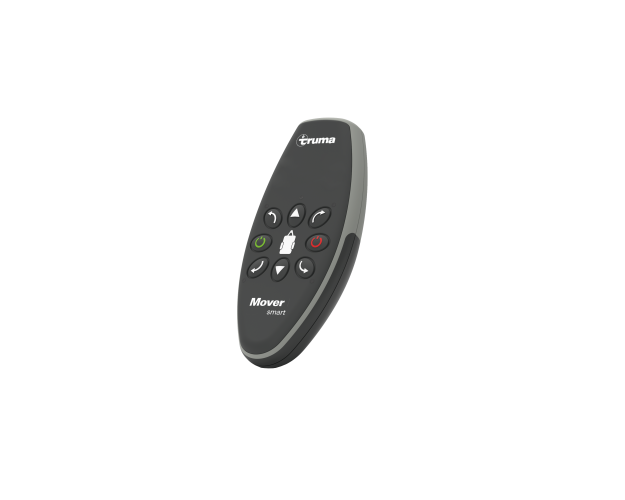

The remote control allows you to control the caravan intuitively at the touch of a button. Thanks to the Softstart function, the caravan starts up smoothly, only then does the speed increase. As soon as you release the buttons, the vehicle brakes. This setting guarantees maximum safety.

Here’s what the Mover smart M is capable of:

• handles slopes of 13%
• easy and precise attachment to the towing vehicle
• suitable for single axle caravans weighing up to 1800 kg

The non-slip surface of the drive rollers ensures the necessary grip on the tires and thus allows optimal power transmission. The rollers are particularly wear-resistant and lightweight, thanks to the die-cast aluminum.

Technical data:

• Permissible total weight: 1800 kg
• Trailer type: single axle
• Average current consumption in flat state with a total weight of: 28 A / 1800 kg
• Approach and withdrawal: manual
• Max. gradient. Commercially available levelling wedges can be driven on without any problems (gradient: approx. 20%) (short-term load): 13 % at 1800 kg
• Weight: approx. 33 kg
• Operating voltage: 12V DC
• Maximum current draw: 100A
• Quiescent current consumption: < 20 mA
• Speed (depending on weight and slope): approx. 15 cm per second
