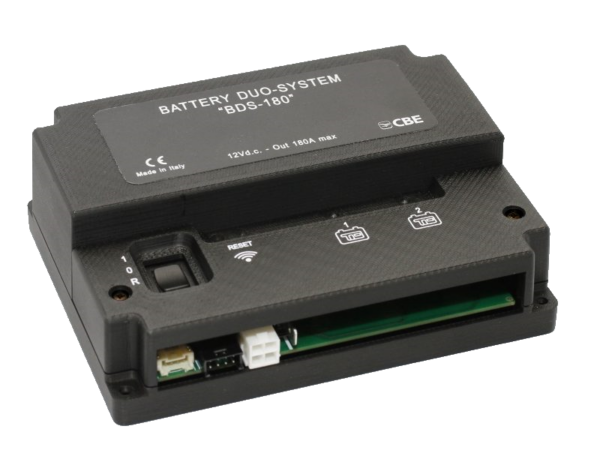

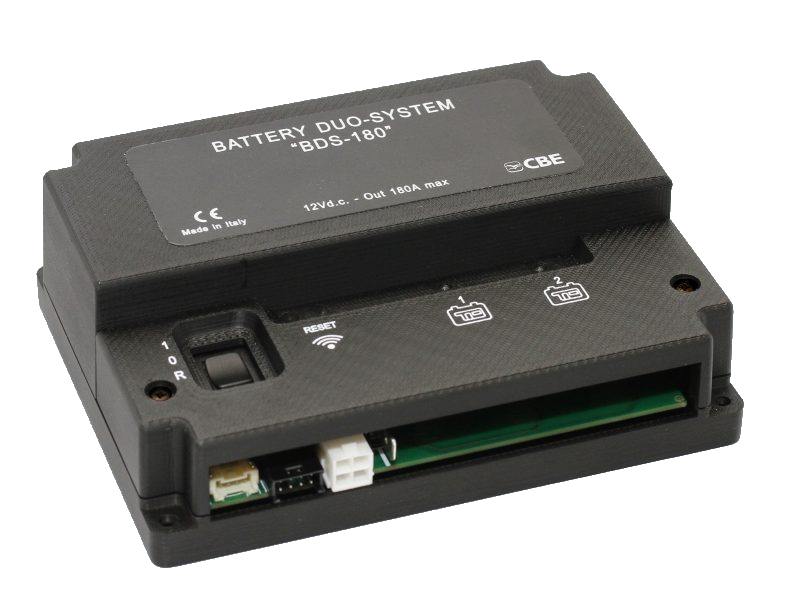

BDS-180 BATTERY DUO SYSTEM

Automatic service battery selector

The BATTERY DUO-SYSTEM is an electronic device with integrated microprocessor capable of intelligently managing two 12 V service batteries, both in the charging phase (with alternator, battery charger and photovoltaic modules) and in the discharging phase.

Using the BDS-180 brings numerous advantages:

• management of charging and discharging batteries separately and alternately
• possibility of connecting two batteries of different capacities and different ages
• checking the functionality of each individual battery and, in the event of a faulty battery, isolating it with a light signal (yellow LED on the BDS-180)
• “battery saver” function, which disconnects the batteries when one is reached
  safety voltage to avoid irreversible damage
• possibility of electrically disconnecting both service batteries (in case of prolonged periods of non-use) using the switch located on the appliance or via a remote switch
• management of high currents (charge and discharge) up to a maximum of 90A with peaks of 120A for each battery
• possibility of connecting users with consumption up to a maximum of 180A
• possibility of connecting a control panel (MC-180) to select the operating mode of the equipment (automatic/manual)
• possibility of connection to mobile devices via the “REMOTE CONTROL BDS-180” APP

Dimensions (mm): 150 x 110 h48

Black colour

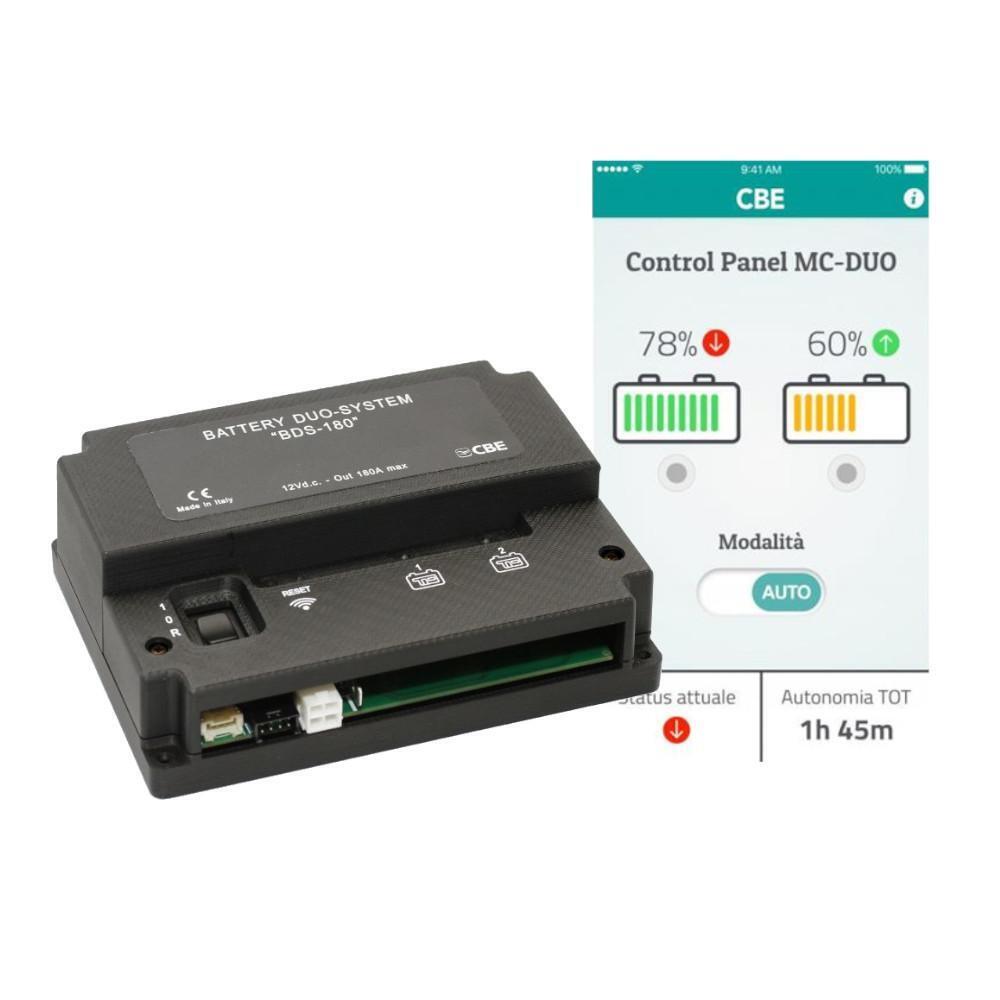

APP – REMOTE CONTROL BDS-180

The “REMOTE CONTROL BDS-180” mobile APP was specifically developed to manage and expand the functions of the BDS-180. The connection between the BDS-180 and mobile devices is via WIFI and has a range limited to the surroundings of the vehicle.

The “REMOTE CONTROL BDS-180” APP allows you to:

• select the BDS-180 operating mode (automatic/manual)
• display the voltage of the two batteries graphically and in volts
• view the charging and discharging current in real time
• view the remaining battery life in use
• display the number of charge and discharge cycles of the two batteries
• view the “battery saver” function intervention signal
• view the health status of the batteries
• receive information on any anomalies in the batteries
• view the BDS-180 manual
• update the BDS-180 firmware
