BATTERY CHARGER FOR KNAUS SWITCHING SERIES CB516-321515A

CB500 SERIES SWITCHING BATTERY CHARGER
The “CB500” series switching battery charger is able to charge lead batteries (lead-acid and lead-gel) automatically. The battery charger is protected from overtemperature and the 12V outputs are protected from short circuit and polarity inversion.

Four-cycle charging system for 12V batteries:
– Recharge the batteries with maximum current until the charging voltage is reached.
– NB: The end of charge is reached only if the battery is efficient.
– When the end of charge threshold is reached, the battery charger continues charging for 90 minutes (lead-acid batteries) or 8 hours (lead-gel batteries) at constant voltage.
– Constant voltage maintenance 13.8V (gel batt.) or 13.5V (acid batt.).
– After 10 hours of maintenance, the battery charger switches to the stand-by phase and resumes charging only when the battery voltage drops below 13V.
– High frequency switching technology allows for high efficiency with reduced weight and size.

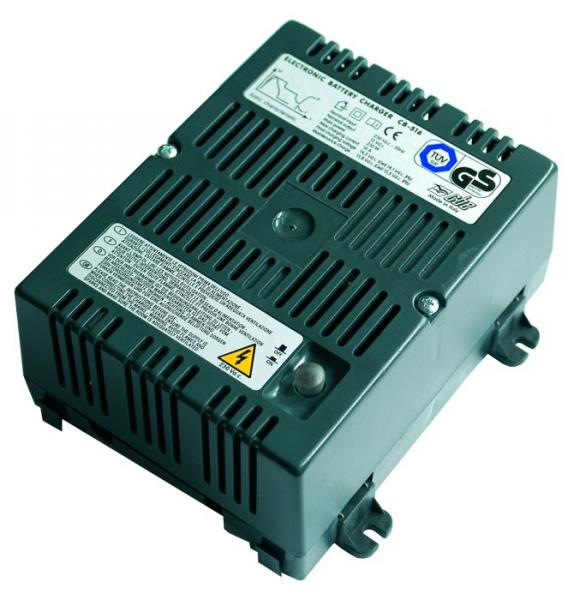

BATTERY CHARGER: CB516-3
TECHNICAL DATA

RATED VOLTAGE: 230Vac +-10%
FREQUENCY: 50Hz
MAX POWER: 150W
PROTECTION FUSE: 2A (glass 5 x 20)
SAFETY SWITCH: 230V

OUTPUT TECHNICAL DATA
MAXIMUM VOLTAGE: 14.3Vdc (Pb-Gel) – 14.1Vdc (Pb-Acid)
FLOAT VOLTAGE: 13.8Vdc (Pb-Gel) – 13.5Vdc (Pb-Acid)
MAXIMUM CURRENT: 16A
LOAD LINE: IUo U
BATTERY TYPE SELECTOR: Pb-Acid / Pb-Gel
SHORT CIRCUIT AND REVERSE POLARITY PROTECTION: 15A (blade)
THERMAL PROTECTION: YES
NETWORK PRESENCE SIGNAL (S): 12V; 50mA

GENERAL TECHNICAL DATA
YIELD: 86%
ROOM TEMPERATURE: 0-50°
VENTILATION: NO
PROTECTION DEGREE: IP 30
CONNECTION TO THE NETWORK: Schuko plug
BATTERY CONNECTION: Faston Type 6.3
CONTAINER MATERIAL: Nylon+fiberglass – self-extinguishing
DIMENSION (mm: 180 x 140 x 85H
WEIGHT: 1Kg

CBE CODE 321516A

KNAUS CODE R03010788
