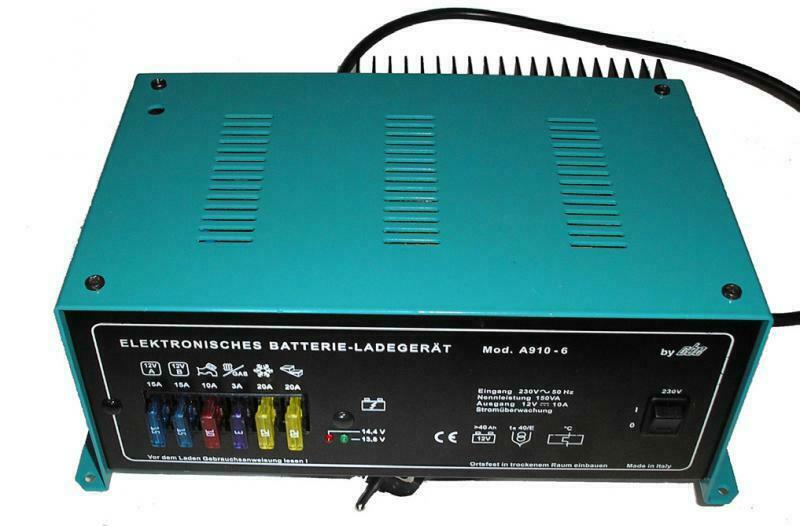

A910-6 BATTERY CHARGER + DISTRIBUTION MODULE

The A910/6 battery charger is designed to recharge lead-acid starter or gel batteries, for continuous use and connected in a buffer system:

It can remain connected to the 230V mains continuously, as the system automatically provides the charging choice in relation to the battery status.
If the battery with at least 3V is not connected, the system does not work.

The charging system occurs in three cycles:
1. charging the battery with the maximum current until reaching the end of charge of 14.5V Red LED
NB. the end of the charge is reached only if the battery is efficient.
2. Timed completion charging at constant 14.5V for a time of: 20 minutes. batt.pb 6 hours and 20 min.batt gel
3. maintenance constant 13.8V Green LED This guarantees the maintenance current for the complete charge.
In this phase the system partializes the Tyristors so as to make the voltage peak almost zero.
When the battery drops below the value of approximately 13.6V, also due to the insertion of a user load, the system restarts from phase 2.
An electronic device disconnects all 12V users when the service battery reaches the minimum voltage level of 10V. It is possible to restore them for about a minute by turning the main switch on the control panel off and on again.
The three-way fridge, the electric step, the heating / boiler are excluded from this device.

TECHNICAL INFORMATION

Nominal Voltage: 230Vac / 50Hz
Rated power: 150VA
Protection fuse: 2A glass 5×20
Maximum current: 10A
Load line: IWUoU
Battery type selector: Pb-Acid / Pb-Gel
Short circuit and reverse protection. polarity
Connections: cable L=1m with Schuko plug
Consumption without mains: 12V 0.3 mA
Container material: Painted aluminium
Dimensions: 270x 170 h100 mm
Weight:4 kg
